Model # U870O300

Internet #202033003

Store SKU #105985

Store SO SKU #1000317805

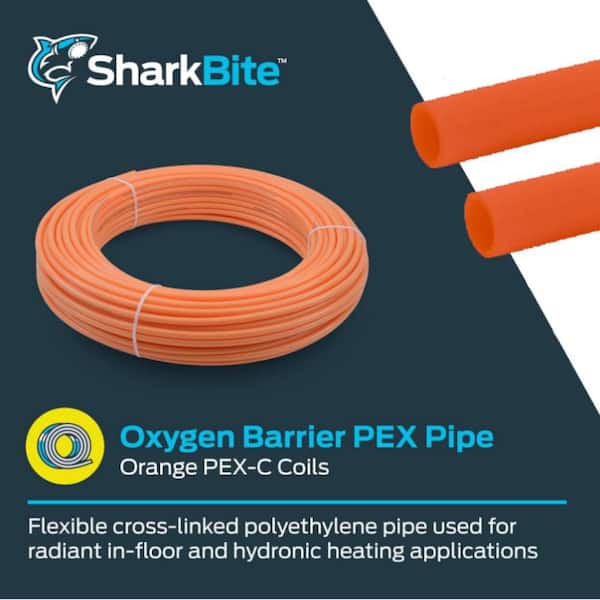

SharkBite 3/4 in. x 300 ft. Oxygen Barrier Radiant Heating PEX Pipe
0697285333000

SharkBite

3/4 in. x 300 ft. Oxygen Barrier Radiant Heating PEX Pipe

$21400 /each

Choose Your Options

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-Fit Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.
  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5
  • Note: product may vary by store

Product Overview

Model #: U870O300
Sku #: 105985
Internet #: 202033003

SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-Fit Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.

  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$138.71 /each
$214.00 /each
$248.98 /each
$267.24 /each
Name 3/4 in. x 300 ft. White PEX Pipe 3/4 in. x 300 ft. Oxygen Barrier Radiant Heating PEX Pipe 5/8 in. x 300 ft. Flexible Oxy Barrier Tubing 1/2 in. x 300 ft. Flexible Oxy Barrier Tubing
Brand SharkBite SharkBite Zurn Zurn
Ratings (98) (17) (0) (0)
Pipe Size 3/4" 3/4" 5/8" 1/2"
Product Length (ft.) 300.0 ft 300 ft 300 300
Material Cross-Linked Polyethylene (PEX) Cross-Linked Polyethylene (PEX) Cross-Linked Polyethylene (PEX) Cross-Linked Polyethylene (PEX)
Actual outside diameter (in.) 0.875 .875 .574 .475
Actual inside diameter (in.) 0.671 .671 .75 .625
View Product View Product View Product View Product

Specifications

Dimensions

Actual inside diameter (in.)
.671
Actual outside diameter (in.)
.875
Pipe Size
3/4"
Product Depth (in.)
30
Product Height (in.)
12
Product Length (ft.)
300 ft
Product Width (in.)
30

Details

Application
Water Supply
Color Family
Orange
Color/Finish
Orange
Features
Underground Use
Material
Cross-Linked Polyethylene (PEX)
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
160
Minimum working temperature (F)
32
Pipe & Tubing Product Type
PEX
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
50lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,IAPMO Certified
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-800-435-4654.

Specifications

Dimensions

Actual inside diameter (in.)
.671
Actual outside diameter (in.)
.875
Pipe Size
3/4"
Product Depth (in.)
30
Product Height (in.)
12
Product Length (ft.)
300 ft
Product Width (in.)
30

Details

Application
Water Supply
Color Family
Orange
Color/Finish
Orange
Features
Underground Use
Material
Cross-Linked Polyethylene (PEX)
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
160
Minimum working temperature (F)
32
Pipe & Tubing Product Type
PEX
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
50lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,IAPMO Certified
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-800-435-4654.

Questions & Answers

What is the difference between the Orange PEX at $168.50 and the Blue PEX at $129.00?

We need this for a boiler to run water 300' underground at about 120 degrees F. to a radiant heated floor in an outbuilding. It will be installed in a conduit (2" Sched 40 PVC) with an electric power supply at 24" depth.
Asked by: AndEnergy
Orange tubing (known as Pex-A) tubing has an oxygen barrier that keeps ferrous based plumbing fixtures & fittings from oxidizing. It is also more flexible than the blue (Pex-B). Kinks can also be repaired w/ a heat gun as opposed to type B 0r C where they have to be repaired only with a splice and fittings.
Answered by: David
Date published: 2017-03-25

can this product be used in potable applications

can this product be used in potable applications
Asked by: Cee
Yes, all SharkBite products are only certified for potable water installations.If you have further questions, please contact customer service M-F, 8am-5pm at (877) 700-4242.
Answered by: SharkBite Support
Date published: 2017-10-01

IS THE 10 FT STRAIGHT SECTIONS OR A COIL ?

IS THE 10 FT STRAIGHT SECTIONS OR A COIL ?
Asked by: JEFF
This is a straight piece of PEX. If you have further questions, please call Customer Service M-F, 8am-5pm at (877) 700-4242.
Answered by: SharkBite Support
Date published: 2017-09-22

How many feet per 100 square foot?

Or, if I have a 12x15 180 sq ft room, generally how much tubing would I need? I have a 3200 sq ft house, trying to figure how much I will need?
Asked by: Slam
well.. you can't go off square footage alone because you're looking at linear distances of tubing compared to areas... for instance. 100sqft of a room 10'x10' (120" x 120") you would have 8 bays of joists (assuming 16" on center), each 10 feet long. Since you want to do a loop in each bay, you would need roughly 20' of tubing per bay times 8 bays or 160 feet of PEX (roughly) as an extreme example to show that it can vary, if your room were 6 inches wide and 200 feet long (still 100 square feet) you would need 400 feet of PEX to heat the same area. I realize that's a ridiculous example but it shows that, as your room gets more and more rectangular, the linear distances increase. You're best to measure the length of the room following the joists, multiply by 2, and then count how many bays you need to fill.
Answered by: Evlas1013
Date published: 2017-10-15
  • y_2017, m_10, d_22, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_44
  • loc_, sid_202033003, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 101ms
  • QUESTIONS, PRODUCT

Customer Reviews

3/4 in. x 300 ft. Oxygen Barrier Radiant Heating PEX Pipe is rated 4.3 out of 5 by 17.
Rated 4 out of 5 by from placed in slab for radiant heat. Zip tied to wire.worked well and held presser for cement pour. placed in slab for radiant heat. Zip tied to wire.worked well and held presser for cement pour.
Date published: 2016-11-08
Rated 5 out of 5 by from Just what I needed at a great price I needed this to repair a radiator hookup in an older home. I had a hard time finding the 3/4" pex with oxygen barrier in any plumbing/heating supply store and ultimately tried Home Depot on line. I had it delivered to my home in about 4 days. Next time I'll try Home Depot first!
Date published: 2012-01-11
Rated 4 out of 5 by from Good product / easy to use. Used this product to make connections in existing hydronic heating system for additional baseboard heat. Used the clamp connections and some shark bite connections. You need the clamping tools for this. Can cut with a regular twist and spin pipe cutter but don't dig in too hard. Keep it warm as the colder it gets the hard it is to manipulate. Doesn't make 90 degree turns tightly, you need a good 12" -16" to make a 90. Just buy the 90 degree fittings if you don't have the space.
Date published: 2014-12-11
Rated 5 out of 5 by from Good product, easy to install Pex is a great product. Be aware that the pex clamps and tools are proprietary. Home depot has Apollo clamps and tools, which work very well.
Date published: 2013-08-21
Rated 5 out of 5 by from Plumbed my entire house with this stuff (Hydronic Boiler System). Would highly recommend versus u... Plumbed my entire house with this stuff (Hydronic Boiler System). Would highly recommend versus using copper.
Date published: 2016-11-03
Rated 5 out of 5 by from Seemed to work well so far. Came in a box in the mail and there was no damage. Unrolled nicely ... Seemed to work well so far. Came in a box in the mail and there was no damage. Unrolled nicely and works great so far.
Date published: 2017-03-29
Rated 5 out of 5 by from It's PEX pipe. 500' x 1/2" Simple enough. shipped quick and got here undamaged. It's PEX pipe. 500' x 1/2" Simple enough. shipped quick and got here undamaged.
Date published: 2016-12-20
Rated 5 out of 5 by from Pex It was just as i had expected that it would be works great...
Date published: 2017-01-29
