Model # 23100

Internet #202032966

Store SKU #341349

Store SO SKU #1000317716

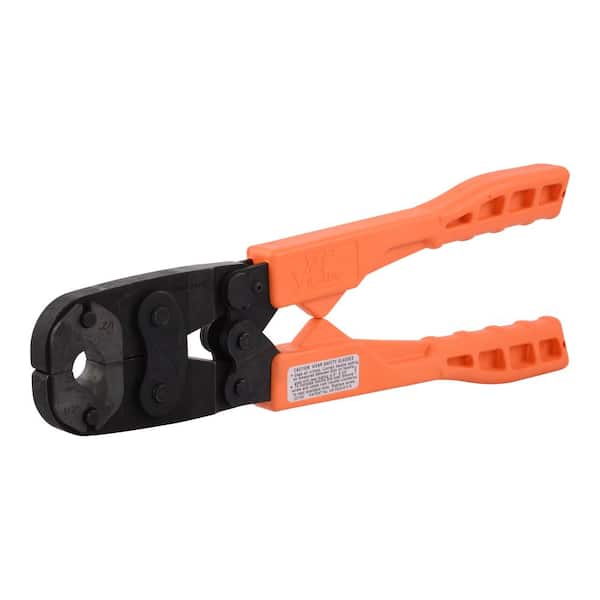

SharkBite Multi-Head PEX Copper Crimp Ring Tool Kit
0697285603097

SharkBite

Multi-Head PEX Copper Crimp Ring Tool Kit

  • Go/no-go gauge is included
  • Includes jaws for 3/8 in., 1/2 in., 3/4 in. and 1 in. crimp rings
  • 6 in. handle offers superb control and leverage
$9784 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The SharkBite PEX crimp tool kit allows you to make a secure connection to PEX with copper crimp rings in sizes 3/8 In., 1/2 In., 3/4 In., and 1 In. (copper crimp rings sold separately). The kit includes a 1 In. PEX Crimp Tool and three dies for 3/8 In., 1/2 In., and 3/4 In. copper crimp rings, these dies can be changed without any special tools. The kit also includes a Go/No-Go Gauge for gauging crimps. The tool is factory calibrated and all crimps conform to the ASTM F-1807 standard.

  • Works with 3/8 In., 1/2 In., 3/4 In., and 1 In. PEX copper crimp rings
  • No tools needed to change between dies
  • Lightweight composite handles reduce fatigue
  • 10 times more crimps between calibration
  • Go/no-go gauge and instructions included
  • Meets ASTM F-1807 standard
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

I purchased this crimper at Menards with a small black case over the head. It seems that once this case is opened,

very difficult to close. Isn't the case supposed to be used to store the tool and bits?
Asked by: Hipper
Yes, it all goes in there and stores just the way the tool came from the store. I had the same issue. The natural inclination is to push the top of the tool all the way to the top of the box. Re-position the tool down about 1/3 of the way and it falls into place. Snap the box shut. put the screw back in and it is a really compact, rugged storage device.
Answered by: Steamguy
Date published: 2017-06-30

If after crimping a 1/2" fitting into position it can still be rotated inside the pipe, is that o...

If after crimping a 1/2" fitting into position it can still be rotated inside the pipe, is that ok/normal? Or should a proper crimp connection not be able to rotate at all? Please note that the connection is very tight as I ensured calibration was correct on a test fitting before use but if enough pressure is applied my fittings will rotate. Also note that this is section of pipe goes from a 3/4" tee to 1/2" pipe supplying a new silcock--fitting in question is a ball valve. Thanks.
Asked by: MrJ
There is some resistance but the fitting will rotate. As long as the connection is crimped properly, it should be leak tight.
Answered by: Steamguy
Date published: 2017-06-30

will this tool crimp polybutylene pipe

will this tool crimp polybutylene pipe
Asked by: milford
If you are replacing a section of PB pipe with pex you can get a Shark Bite PB to Pex crimp fitting--I have used this crimp fitting (3/4") and this tool myself for this purpose with success. Also you can get PB pipe to Pex Shark Bite fittings to make the transition.
Answered by: MrJ
Date published: 2016-12-29

Does this come in a hard case?

Asked by: dd
No, it comes with a small plastic box around the end of the tool with the handles exposed. Inside the plastic box are the additional heads and go/no-go tool.
Answered by: MrJ
Date published: 2017-05-31
  • y_2017, m_7, d_19, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_12
  • loc_, sid_202032966, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 102ms
  • QUESTIONS, PRODUCT

Customer Reviews

Multi-Head PEX Copper Crimp Ring Tool Kit is rated 3.5 out of 5 by 8.
Rated 5 out of 5 by from I am in the process of building out a laundromat and purchased this tool because I am using every... I am in the process of building out a laundromat and purchased this tool because I am using every size PEX from 1/2" to 1". It is a heavy duty, meaty tool that makes quality crimps quickly in open spaces. I would suggest that if you are doing an area with tight spaces, a pocket crimper should also be on hand for those tight spots. Someone mentioned it was tough to keep the tool, ring and pipe all aligned without having the ring slide out of position. What I did was hold the ring in a pair of pliers when I got everything aligned properly, I slightly compressed the ring just enough to hold it in place on the pex. Then I followed up with the crimper tool. Perfect joint every time!
Date published: 2017-06-30
Rated 2 out of 5 by from Hard to work in tight spots I bought this tool to repipe my house from copper to PEX. The handles have to open up really wide to get the jaw around the crimp ring. When you're working between floor joists on a vertical pipe it's really hard to be able to crimp because of the wide handle spread that is needed. Other than that problem they work ok..
Date published: 2017-03-29
Rated 4 out of 5 by from Works Great After reading some off the reviews I decided to buy this product. It has in the specifications that it doesn't come with a 1" die. as for the heads coming out it has screws that lock them in place. I haven't had an issue with this product it has performed exactly as designed.
Date published: 2015-03-26
Rated 5 out of 5 by from Worked Perfectly Worked perfectly. I'm not strong and was able to use this. We reworked kitchen and bath plumbing, adding a dishwasher, with lots of prayer and youtube videos. :)
Date published: 2016-07-17
Rated 4 out of 5 by from Product works as advertised Easy to use. Dies are easy to change, but they would sometimes come off the tool and stay on the crimp ring. Easy to remove from ring and reinstall on tool. No leaks.
Date published: 2013-10-01
Rated 3 out of 5 by from cannot use it in some instances Tool works as advertised. Bought this since it will crimp 1" fittings. I would recommend the other type crimper that uses the steel crimp rings. It only costs $57 and it can be used in tight areas and also on the new Moen frost free single handle faucets. This one crimper tool will do it all at half the cost
Date published: 2012-02-07
Rated 2 out of 5 by from cost exceeds design Multi-head with set of change out dies great but holding in place over your head while attempting to keep aligned with copper crimp ring while laying on back under house in awkward position is tough. Would suggest the ratchet type. Break over on this tool is tough while attempting to keep copper crimp and tool aligned. Poor instructions. No mention of no die for 1", but utilize tool head without a die to do 1". Kept looking for the missing 1" die. Have come to believe in Sharkbite quality and dependability but this is no wimp tool. Break over is a exercise in determination, tenacity and perseverance.
Date published: 2013-11-14
Rated 3 out of 5 by from Way too expensive but it works like a charm. This item is a multi-head crimp tool. I only needed the 3/8" one and it wasn't sold. So I had to buy this set. The removal tool doesn't have one for 3/8" though. Go figure. My store unfortunately didn't have the 3/8" one.
Date published: 2012-08-26
