Model # DTNF322

Internet #205623377

Store SO SKU #516939

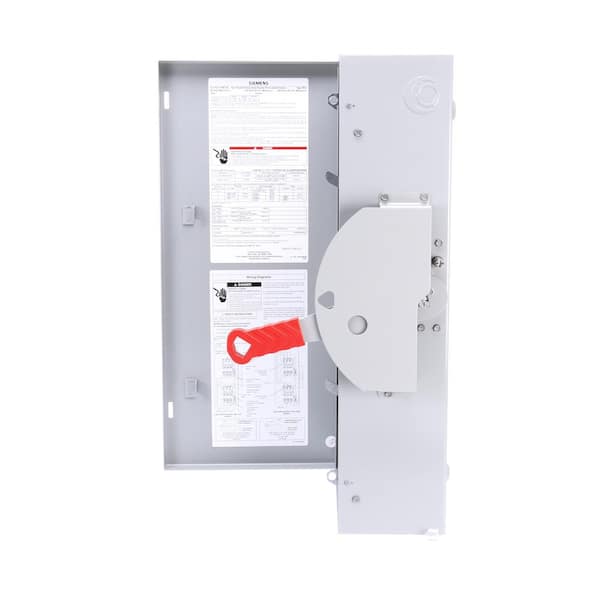

Siemens Double Throw 60 Amp 240-Volt 3-Pole Indoor Non-Fusible Safety Switch
0783643454149

Siemens

Double Throw 60 Amp 240-Volt 3-Pole Indoor Non-Fusible Safety Switch

  • Suitable for service entrance equipment with UL Listed Breaker
  • Used to transfer loads from one power source to another
  • UL Listed and both horsepower and load break rated
$44700 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Double Throw switches are intended to transfer loads from one power source to another. All 2 and 3-pole double throw switches are suitable for use as service equipment including non-fusible versions when used in combination with a UL listed circuit breaker or fusible switch. All are UL Listed and both horsepower and load break rated. Switches are rated for use on systems up to 10,000 Amp when protected with Class H fuses or 100,000 Amp when protected with Class R or Class T fuses. They can also be used to connect a single source of power to either of 2 loads.

  • 60 Amp, single phase, 3 wire, 3 pole, non-fusible safety switch
  • Quick-make and break switching action
  • Double break visible blade design
  • Highly visible on/off indication
  • Modular design allows quick and easy replacement of parts
  • Front removable lugs which can easily be converted to copper body or compression type lugs
  • Defeatable dual cover interlock
  • All copper current carrying parts
  • Tangential knockouts
  • Handle is padlockable in off position
  • NEMA type 1 rating: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$447.00 /each
$535.82 /each
$682.69 /each
$788.93 /each
Name Double Throw 60 Amp 240-Volt 3-Pole Indoor Non-Fusible Safety Switch Double Throw 100 Amp 240-Volt 2-Pole Indoor Non-Fusible Safety Switch Double Throw 100 Amp 240-Volt 3-Pole Indoor Non-Fusible Safety Switch Double Throw 100 Amp 240-Volt 3-Pole Outdoor Non-Fusible Safety Switch
Brand Siemens Siemens Siemens Siemens
Ratings (0) (0) (0) (0)
Safety Switch Type Safety Safety Safety Safety
Automatic/Manual Manual Manual Manual Manual
Number of Phases 1 1 1 1
Maximum Amperage (amps) 60 100 100 100
Power Distribution Features No Additional Features No Additional Features No Additional Features No Additional Features
Voltage (volts) 240 240 240 240
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
29.7 in
Product Height (in.)
11 in
Product Width (in.)
16.9 in

Details

Automatic/Manual
Manual
Electrical Product Type
Safety Switch
Maximum Amperage (amps)
60
Maximum Wattage
240 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
36 lb
Returnable
90-Day
Safety Switch Type
Safety
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 Year
