Model # LNF222RU

Internet #202315410

Store SKU #100065

Store SO SKU #516939

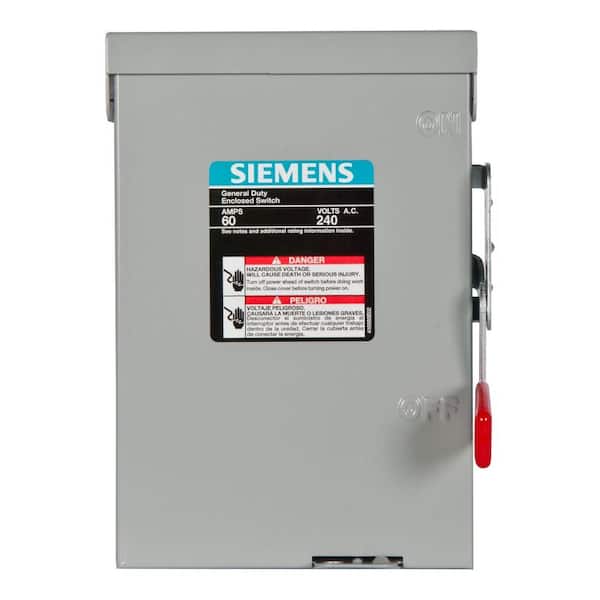

Siemens General Duty 60-Amp 240-Volt Double-Pole Outdoor Non-Fusible Safety Switch
0783643335264

Siemens

General Duty 60-Amp 240-Volt Double-Pole Outdoor Non-Fusible Safety Switch

  • Service Entrance labeled with Solid Neutral & Copper Bus
  • 60 Amp, 2-Pole, 240V with Compact design
  • No-Fuse with Bottom cable entry/exit only, Hub sold seperately
$5297 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Service Entrance labeled with Solid Neutral & Copper Bus
  • 60 Amp, 2-Pole, 240V with Compact design
  • No-Fuse with Bottom cable entry/exit only, Hub sold seperately
General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100,000A when used with Class R or T fuses or 10,000A max when used with Class H fuses.

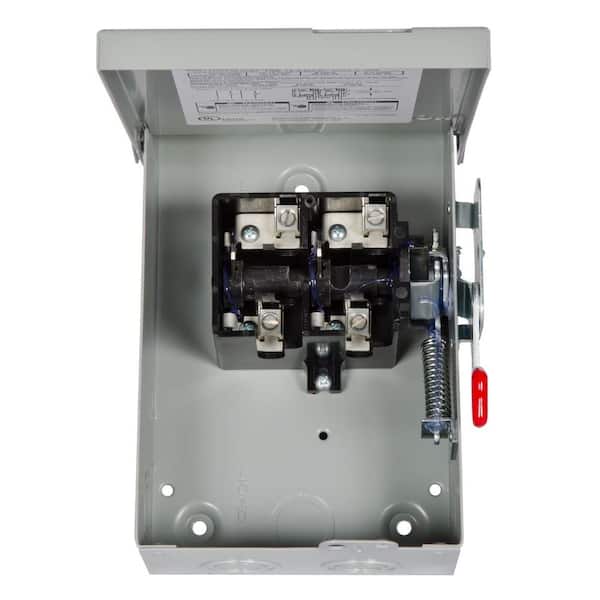

  • 240V, single phase, 2 wire, non-fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180˚For easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a˚ of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Product Overview

  • Service Entrance labeled with Solid Neutral & Copper Bus
  • 60 Amp, 2-Pole, 240V with Compact design
  • No-Fuse with Bottom cable entry/exit only, Hub sold seperately
Model #: LNF222RU
Sku #: 100065
Internet #: 202315410

General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100,000A when used with Class R or T fuses or 10,000A max when used with Class H fuses.

  • 240V, single phase, 2 wire, non-fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180˚For easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a˚ of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$30.97 /each
$52.97 /each
$84.62 /each
$104.96 /each
Name General Duty 30 Amp 2-Pole Fusible Indoor Safety Switch with Neutral General Duty 60-Amp 240-Volt Double-Pole Outdoor Non-Fusible Safety Switch 30-Amp 240-Volt 240-Watt Outdoor Fusible Safety Switch 100 Amp 240-Volt Non-Fuse Indoor Safety Switch
Brand Siemens Siemens Siemens GE
Ratings (0) (2) (0) (1)
Safety Switch Type Safety Safety Safety Safety
Automatic/Manual Manual Manual Manual Manual
Number of Phases 1 1 1 1
Maximum Amperage (amps) 30 60 30 100
Power Distribution Features No Additional Features No Additional Features Fusible No Additional Features
Voltage (volts) 240 240 240 240
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
5.25 in
Product Height (in.)
9 in
Product Width (in.)
6.25 in

Details

Automatic/Manual
Manual
Automatic/Manual
Manual
Electrical Product Type
Switch
Maximum Amperage (amps)
60
Maximum Wattage
240 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
3.60 lb
Returnable
90-Day
Safety Switch Type
Safety
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Specifications

Dimensions

Product Depth (in.)
5.25 in
Product Height (in.)
9 in
Product Width (in.)
6.25 in

Details

Automatic/Manual
Manual
Automatic/Manual
Manual
Electrical Product Type
Switch
Maximum Amperage (amps)
60
Maximum Wattage
240 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
3.60 lb
Returnable
90-Day
Safety Switch Type
Safety
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Questions & Answers

Does this switch Break before it Makes?

Do Not want a switch that parallels the power company and generator feeds.
Asked by: Rae
Good Afternoon - You're question is unclear but we can possibly suggest a double throw switch (DTNF222 with a neutral) instead of a just a general duty 2 pole switch like the LNF222R. To download the Selection & Application Guide for this item go to link below and click on "Downloads" and enter DTNF222 in the search box. http://w3.usa.siemens.com/powerdistribution/us/en/Pages/low-medium-voltage.aspx
Answered by: SIEMENS Product Expert
Date published: 2017-09-28

Can this be used to disconnect DC power between a pv array and the inverter?

Asked by: Jakxter
No, LNF222RU does not carry DC ratings. Consider HNF362RPV for negative ground systems or HNF362RPVPG for positive ground. These 60A rated units allow for disconnect of three separate 600VDC circuits. Check with your inverter supplier to see if you have a negative or positive ground system. To download the cut sheet for these items go to link below and click on "Downloads" and enter the catalog number in the search box. https://w3.usa.siemens.com/powerdistribution/us/en/Pages/low-medium-voltage.aspx?HTTPS=REDIR
Answered by: SIEMENS Product Expert
Date published: 2017-09-14

is this suitable for the swimming pool safety emergency shut off

Asked by: Jas
Hi Jas, I would recommend that you consult a professional electrician, they will be able to look at your install and make sure that you get the switch that you need to protect your pool and keep everyone safe.
Answered by: SIEMENS Product Expert
Date published: 2016-06-21

Can this switch be used to connect to the load center of the main service panel

The load center is on a 125A Main Service panel but it is protected by a 30A fuse. One side of the switch will to a solar array which produces 10A at 240AC The other side of the switch would go to the load center on the main service panel, protected by a 30A fuse. The main service panel is Schnedier Homeline SC2040M125PF Thank you in advance!
Asked by: solarowner
Hi solarowner, This switch is suitable for circuits of not more than 10,000 A, 240V max when it's protected by a 60 amp max fuse or circuit breaker. If the load center is rated more than 10,000 A then you could get a GF321R which is rated for up to 100,000 KA when it is protected by a 30 amp max class R fuse.
Answered by: SIEMENS Product Expert
Date published: 2016-03-02
  • y_2017, m_10, d_18, h_20CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_7
  • loc_, sid_202315410, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 103ms
  • QUESTIONS, PRODUCT

Customer Reviews

General Duty 60-Amp 240-Volt Double-Pole Outdoor Non-Fusible Safety Switch is rated 4.5 out of 5 by 2.
Rated 4 out of 5 by from Product does what it was designed for.... Product does what it was designed for.
Date published: 2017-07-19
Rated 5 out of 5 by from Perfect for the job Fairly easy to install. Was just what I needed and it works perfectly!
Date published: 2012-03-19
