Slant/Fin Fine/Line 30 6 ft. Hydronic Baseboard Heating Enclosure Only in Nu-White
0042541001092

Slant/Fin

Fine/Line 30 6 ft. Hydronic Baseboard Heating Enclosure Only in Nu-White

$4056 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

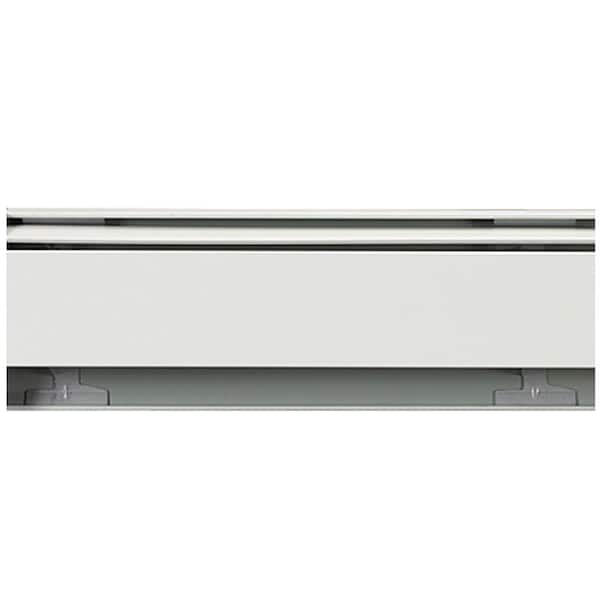

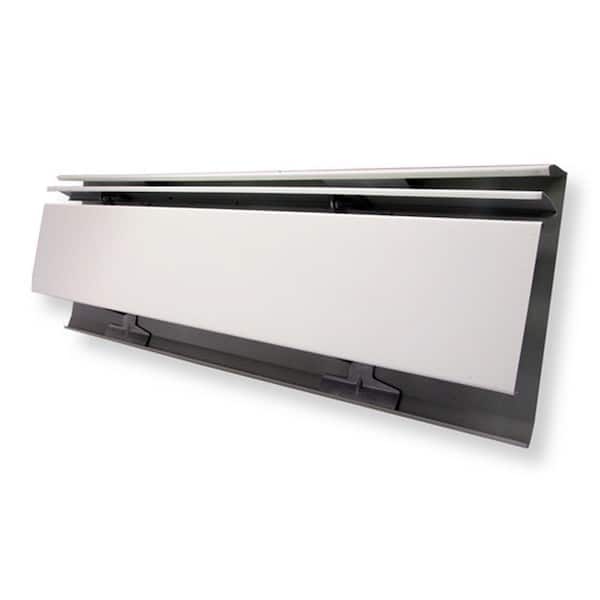

The Slant/Fin 6 ft. Dummy Baseboard comes in a Nu-Tone white finish. It is used to cover an exposed baseboard heat pipe. The splice plate is included for the installation.

  • Slant/Fin's Fine/Line 30's slim profile harmonizes with any decor
  • Commercial-grade, rust-resistant, galvanized steel
  • Slant/Fin baseboard can be installed flush to the wall or recessed for a more concealed look
  • Replace old hot water radiators with modern low-profile baseboard
  • End caps sold separately
  • Commercial grade rust resistant galvanized steel in nu-tone white
  • Used to cover exposed baseboard heat pipe
  • Includes splice plate

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$29.58 /each
$40.56 /each
$57.65 /each
$76.82 /each
Name Fine/Line 30 3 ft. Assembled Enclosure and Element Hydronic Baseboard Fine/Line 30 6 ft. Hydronic Baseboard Heating Enclosure Only in Nu-White Fine/Line 30 6 ft. Fully Assembled Enclosure and Element Hydronic Baseboard Fine/Line 30 8 ft. Fully Assembled Enclosure and Element Hydronic Baseboard
Brand Slant/Fin Slant/Fin Slant/Fin Slant/Fin
Ratings (4) (8) (7) (10)
Baseboard Heating Type Hydronic Hydronic Hydronic Hydronic
Voltage (volts) 0 0 0 0
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.75
Product Height (in.)
8.5
Product Width (in.)
72

Details

Baseboard Heating Type
Hydronic
Color
white
Color Family
Whites
Heat rating (BTU/hour)
0
Heating Product Type
Baseboard
Heating Technology Type
Convection
Hydronic
Yes
Product Weight (lb.)
13lb
Returnable
90-Day
Thermostat
No
Vented
No
Voltage (volts)
0
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
0

More Products With These Features

Search

Customer Questions & Answers

Can the cover be changed without removing the actual plumbing?

Asked by: Silverfox
YES it can be done, and it is not too difficult with some patience. Original units are usually nailed into the studs, and it is difficult to pull the nails because of the existing plumbing and the nail heads are sometimes dimpled into the sheet metal. The trick is one I learned on This Old House. Remove all the covers and hardware from the front. Get some shims and push them between the wall and baseboard cover to make some space between the cover and wall. Get the longest metal cutting saws all blade you can find and insert it between the baseboard and wall, then cut the nails from behind the baseboard cover. If you are careful, you'll avoid damaging the wall above the baseboard, and any wall damage below the baseboard will be covered up. Be careful to cut the nail shaft and not into the sheet metal, you might have to cut into the drywall a bit to get a good cut on the nail shaft if the nail head is dimpled into the sheet metal, but again, this cut will be covered up by the new baseboard. Once you are done removing the old board, disassemble the dummy boards. The brackets are removed by squeezing the top of the bracket until the bottom pops out of the lip. Slip the new brackets behind the existing pipe, slip the new covers behind, and reinstall the brackets by squeezing the topof the bracket and pushing the bottom of the bracket back into the cover. Secure the back to the wall with drywall screws, reinstall the front cover and louver and that's it.
Answered by: JM
Date published: 2017-02-10

Can these be cut?

Asked by: Kevin
Yes, this item can be cut.
Answered by: CommunityAnswer
Date published: 2016-05-22

WHO CAN I GET TO INSTALL THE HEATER

WHO CAN I GET TO INSTALL THE HEATER
Asked by: KEL
Hydronic heating systems are typically the purview of plumbers. If you do not know a plumber or would like another opinion you can certainly call your local Home Depot store and speak to the install coordinator to see if installation in available in your area.
Answered by: chris
Date published: 2017-06-20

How many BTUs will this unit output assuming 180°F water 1 GPM flow rate?

How many BTUs will this unit output assuming 180°F water 1 GPM flow rate?
Asked by: RichK
580 BTU's per linear foot. By the way this is kind of an industry standard. Meaning if you told me you had a 100' of basboard in your home, I would multiply the 100' by the 580 and tell you you needed a boiler that put out 58000 BTU's. As another example 3/4" copper tube can only carry 45,000 BTU's, (no a bigger pump will not make a difference) So if we divide 45K by 580 we no that 75' is about the maximum footage of baseboard you can run on a 3/4" zone.
Answered by: chris
Date published: 2017-01-23
  • y_2017, m_7, d_23, h_15CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_11
  • loc_, sid_202254756, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 53ms
  • QUESTIONS, PRODUCT

Customer Reviews

Fine/Line 30 6 ft. Hydronic Baseboard Heating Enclosure Only in Nu-White is rated 2.8 out of 5 by 8.
Rated 2 out of 5 by from Purchased two of these with the heating element a few years ago for the basement and I'm not happ... Purchased two of these with the heating element a few years ago for the basement and I'm not happy that they're rusting pretty bad. I would try another brand except 'm looking to replace without a lot of headache.
Date published: 2017-03-04
Rated 2 out of 5 by from This is a follow-up to post on March 4, 2017. I was not able to edit that post but I wanted to ad... This is a follow-up to post on March 4, 2017. I was not able to edit that post but I wanted to additional information. I still maintain my two (2) star rating of this product. A 'Chris' responded to my post on March 6, 2017 with the appearance of being concerned and helpful. I did in fact call call the number provided (Slant Fin manufacturing) and asked to speak with 'Chris'. I was put through to customer service who informed me: 1. There is no one named 'Chris' in customer service 2. There is only a one year warranty on the product. Period. 3. ALL warranty issues relating to this product would go through Home Depot and NOT Slant Fin. For what it's worth I have attached a picture of the rust issue. Since I was unable to reach a 'Chris' at Slant Fin nor did the individual I spoke with indicate any desire in seeing the rusting issue, one might conclude the response was simply for positive marketing spin. Since I clearly indicated upfront the baseboard elements were purchased "...a few years ago...", Chris' response stating "The product is guaranteed not to rust and would certainly be under warranty." gives false hope that something could be done regarding the situation.
Date published: 2017-03-15
Rated 5 out of 5 by from It was extremely easy to put up and looks great!!!... It was extremely easy to put up and looks great!!! I plan on using them in the whole house!
Date published: 2017-03-14
Rated 1 out of 5 by from too small. I needed 80 not 30. I... too small. I needed 80 not 30. I returned baseboar
Date published: 2017-05-16
Rated 3 out of 5 by from Nice, but they do not cover very well These are of decent quality and I would recommend them in general, but they would be much better if the front cover would extend down toward the floor a bit more. After installation, there is at least 1 1/2" between the floor and the bottom of the cover. This allows easy view from a standing position of the unfinished side of the backing and the brackets that hold the pipes and heating elements in place. These were shipped via UPS and arrived in excellent condition, however, the inside corner I ordered was not covered with a protective film and was full of scratches and scuff marks - most likely from its time in the warehouse, not from shipping.
Date published: 2016-05-17
Rated 1 out of 5 by from The enclosure does not fit older Slant/Fin Baseboard heaters that have a larger dimensional fin (... The enclosure does not fit older Slant/Fin Baseboard heaters that have a larger dimensional fin (2 1/2") the enclosures will fit a fin that is 2 1/4". I contacted the company and they suggested that I replace the entire heater assembly.
Date published: 2017-01-03
Rated 3 out of 5 by from Baseboard heat cover Product is ok but came damaged need better packaging
Date published: 2016-07-05
Rated 5 out of 5 by from Easy to install Replaced old rusted enclosure. Very easy to install. Does not come with end-caps.
Date published: 2014-08-26
