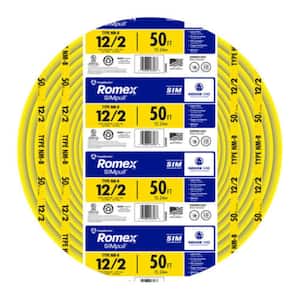

Southwire 1000 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire
0032886263064

Southwire

1000 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire

  • #12 AWG residential wiring for outlets, switches and other loads
  • Copper (CU) Conductors

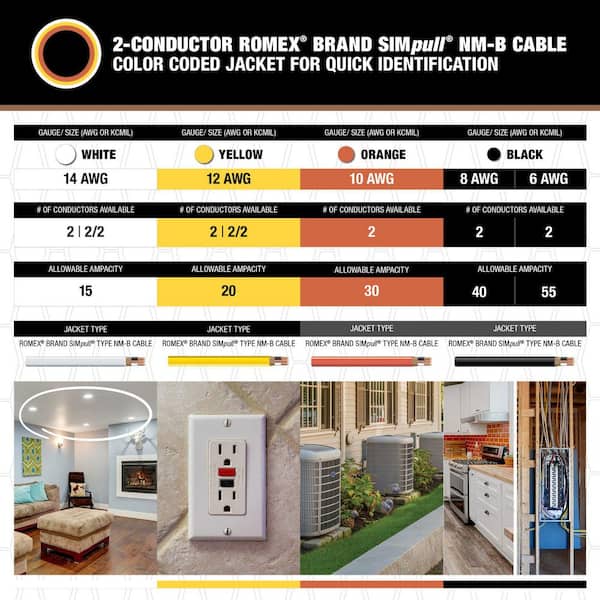

  • 12 gauge has Yellow color-coded jacket for size identification
$26900 /each

Choose Your Options

Wire/Cable Length (ft.)
1000
Outer Color
Yellow
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • #12 AWG residential wiring for outlets, switches and other loads
  • Copper (CU) Conductors
  • 12 gauge has Yellow color-coded jacket for size identification
The Southwire Company Romex SIMpull 1,000 ft. 12/2 Type NM-B Cable can be used in your homes exposed and concealed wiring projects. This NM-B cable is designed to be used in dry locations up to 90 Degree C or 194 Degree F. Nylon jackets help significantly reduce pulling force resulting in easier installation.
  • Exposed and concealed applications
  • Type NM-B cable (non-metallic sheathed cable) can be used in residential wiring as branch circuits for outlets, switches or other loads
  • May be run in air voids of masonry block or tile walls that are not subjected to excessive moisture or dampness
  • Indoor use
  • Dry locations up to 90 degreeC or 194 degree F
  • 600-Volt maximum
  • 1000 ft. of cable
  • Copper conductors
  • 1-UL listed
  • Note: product may vary by store
  • Click to learn the factors you must consider when wiring your home

Product Overview

  • #12 AWG residential wiring for outlets, switches and other loads
  • Copper (CU) Conductors
  • 12 gauge has Yellow color-coded jacket for size identification
Model #: 28828201
Sku #: 163325
Internet #: 202316226

The Southwire Company Romex SIMpull 1,000 ft. 12/2 Type NM-B Cable can be used in your homes exposed and concealed wiring projects. This NM-B cable is designed to be used in dry locations up to 90 Degree C or 194 Degree F. Nylon jackets help significantly reduce pulling force resulting in easier installation.

  • Exposed and concealed applications
  • Type NM-B cable (non-metallic sheathed cable) can be used in residential wiring as branch circuits for outlets, switches or other loads
  • May be run in air voids of masonry block or tile walls that are not subjected to excessive moisture or dampness
  • Indoor use
  • Dry locations up to 90 degreeC or 194 degree F
  • 600-Volt maximum
  • 1000 ft. of cable
  • Copper conductors
  • 1-UL listed
  • Note: product may vary by store
  • Click to learn the factors you must consider when wiring your home

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
13.5
Product Height (in.)
11.25
Product Length (ft.)
1000
Product Width (in.)
13.5
Wire/Cable Length (ft.)
1000

Details

Allowable Ampacities
20
Cable/Wire Type
NM-B
Commercial / Residential
Residential
Conductor Gauge
12
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Indoor Residential Electrical Wire
Flame Retardant
No
Grounded
Yes
Indoor/Outdoor
Indoor
Jacketed
Yes
Number of Conductors
2
Outer Color
Yellow
Returnable
90-Day
Shielded
No
Stranded or Solid
Solid
Sunlight / UV Resistant
No
Wet Location Use
No
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
NA

Specifications

Dimensions

Product Depth (in.)
13.5
Product Height (in.)
11.25
Product Length (ft.)
1000
Product Width (in.)
13.5
Wire/Cable Length (ft.)
1000

Details

Allowable Ampacities
20
Cable/Wire Type
NM-B
Commercial / Residential
Residential
Conductor Gauge
12
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Indoor Residential Electrical Wire
Flame Retardant
No
Grounded
Yes
Indoor/Outdoor
Indoor
Jacketed
Yes
Number of Conductors
2
Outer Color
Yellow
Returnable
90-Day
Shielded
No
Stranded or Solid
Solid
Sunlight / UV Resistant
No
Wet Location Use
No
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
NA

Questions & Answers

Can 12/2 NM-B wire be put into PVC or EMT conduit?

Asked by: hdjerry
Standard rolls, like this one, are 250 feet.
Answered by: TomB2
Date published: 2017-08-17

Can this be used to connect electric stove

Asked by: Kenrilla
No! An electric range typically requires either a 40 amp or 50 amp, 120/240 volt 4-wire circuit made up of 2 insulated hot conductors, 1 insulated neutral conductor and 1 bare or insulated grounding conductor. Not only does 12-2 NM-B cable not have enough insulated conductors, they are also drastically smaller than what is required. I would use 8-3 NM-B cable for a 40 amp circuit or 6-3 NM-B cable for a 50 amp circuit. Consult the installation instructions for the range for the proper size circuit.
Answered by: TomB2
Date published: 2017-07-04

Can it be used for a dryer?

Asked by: Ang
For an electric dryer, no. Most residential electric dryers require a 30 Amp service which will be #10 wire. It could be used for the electrical supply to a gas dryer. The data plate on your dryer will tell you how much current you will need to supply. Also take into account the length of the wire from your breaker panel to the appliance. If it's a long run you should probably move up to the next gauge of wire to account for voltage drop. If unsure it's best to consult with a licensed electrician.
Answered by: TC123
Date published: 2017-07-04

dose this wire have a ground?

Asked by: Nadine
ALL NM-B cable comes with a bare grounding conductor. This 12-2 NM-B cable has 1 Blk, 1 Wht and 1 bare grounding conductor; all are #12 AWG.
Answered by: TomB2
Date published: 2017-07-24
  • y_2017, m_10, d_18, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_53
  • loc_, sid_202316226, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 95ms
  • QUESTIONS, PRODUCT

Customer Reviews

1000 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire is rated 4.5 out of 5 by 57.
Rated 5 out of 5 by from For such a common item in the requirements of any... For such a common item in the requirements of any home electrical project, both this price-per-foot and the fact that it was brought to my doorstep for no extra charge, really makes this an exceptional bargain. And it really is 500 feet for the price posted, not 250.
Date published: 2017-07-18
Rated 3 out of 5 by from Thin and light, maybe too much so. Not much give in the thin cable sheathing, so you have to be ... Thin and light, maybe too much so. Not much give in the thin cable sheathing, so you have to be extra careful installing staples. The insulation on the individual conductors was likewise thin, so our stripping tool didn't work as well as it does on our older wires (the "bite" is less as a percentage of the total thickness, so the insulation doesn't shear off as easily or neatly). But it's getting the job done, and it was nice to be able to buy it by the foot at a reasonable price (thanks, Home Depot!).
Date published: 2017-10-10
Rated 5 out of 5 by from I have worked with this Romex a lot and it is great. Tough insulation and relatively easy to fish... I have worked with this Romex a lot and it is great. Tough insulation and relatively easy to fish. I have never noticed a defect. It is used on 20 amp circuits. Yellow coloring is great for identification.
Date published: 2017-08-24
Rated 4 out of 5 by from The 12/2 WG 1000 flot rolls worked out fine. Paul... The 12/2 WG 1000 flot rolls worked out fine. Paul @ P&L Electrical .
Date published: 2017-06-14
Rated 5 out of 5 by from The amount of feet was perfect to complete... The amount of feet was perfect to complete my project
Date published: 2017-08-30
Rated 5 out of 5 by from Yep, met expectations The Southwire is good quality wire at a good value
Date published: 2017-05-16
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-08-17
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-08-30
