Model # 28828221

Internet #202316378

Store SKU #374710

Southwire 25 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire
0032886263071

Southwire

25 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire

  • #12 AWG residential wiring for outlets, switches and other loads
  • Copper (CU) Conductors

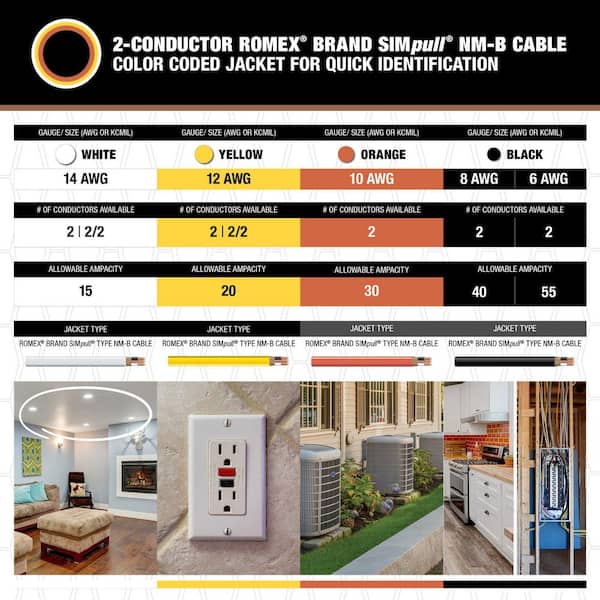

  • 12 gauge has Yellow color-coded jacket for size identification
$1597 /each

Choose Your Options

Conductor Gauge
12
Wire/Cable Length (ft.)
25
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Romex SIMpull 25 ft. 12/2 NM-B Wire is a solid wire intended for interior residential application use. The SIM Technology jacket provides easy wire pulling. UL listed.

Specifications

Dimensions

Product Depth (in.)
6.875
Product Height (in.)
3
Product Length (ft.)
25 ft
Product Width (in.)
6.875
Wire/Cable Length (ft.)
25

Details

Allowable Ampacities
20
Cable/Wire Type
NM-B
Commercial / Residential
Residential
Conductor Gauge
12
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Indoor Residential Electrical Wire
Flame Retardant
No
Grounded
Yes
Indoor/Outdoor
Indoor
Jacketed
Yes
Number of Conductors
2
Outer Color
Yellow
Returnable
90-Day
Shielded
No
Stranded or Solid
Solid
Sunlight / UV Resistant
No
Wet Location Use
No
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
NA

More Products With These Features

Search

Customer Questions & Answers

Can 12/2 NM-B wire be put into PVC or EMT conduit?

Asked by: hdjerry
Standard rolls, like this one, are 250 feet.
Answered by: TomB2
Date published: 2017-07-04

Can this be used to connect electric stove

Asked by: Kenrilla
No! An electric range typically requires either a 40 amp or 50 amp, 120/240 volt 4-wire circuit made up of 2 insulated hot conductors, 1 insulated neutral conductor and 1 bare or insulated grounding conductor. Not only does 12-2 NM-B cable not have enough insulated conductors, they are also drastically smaller than what is required. I would use 8-3 NM-B cable for a 40 amp circuit or 6-3 NM-B cable for a 50 amp circuit. Consult the installation instructions for the range for the proper size circuit.
Answered by: TomB2
Date published: 2017-07-04

Can it be used for a dryer?

Asked by: Ang
For an electric dryer, no. Most residential electric dryers require a 30 Amp service which will be #10 wire. It could be used for the electrical supply to a gas dryer. The data plate on your dryer will tell you how much current you will need to supply. Also take into account the length of the wire from your breaker panel to the appliance. If it's a long run you should probably move up to the next gauge of wire to account for voltage drop. If unsure it's best to consult with a licensed electrician.
Answered by: TC123
Date published: 2017-07-04

dose this wire have a ground?

Asked by: Nadine
ALL NM-B cable comes with a bare grounding conductor. This 12-2 NM-B cable has 1 Blk, 1 Wht and 1 bare grounding conductor; all are #12 AWG.
Answered by: TomB2
Date published: 2017-07-24
  • y_2017, m_8, d_18, h_14CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_45
  • loc_, sid_202316378, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 33ms
  • QUESTIONS, PRODUCT

Customer Reviews

25 ft. 12/2 Yellow Solid SIMpull NM-B Wire is rated 4.6 out of 5 by 49.
Rated 5 out of 5 by from For such a common item in the requirements of any... For such a common item in the requirements of any home electrical project, both this price-per-foot and the fact that it was brought to my doorstep for no extra charge, really makes this an exceptional bargain. And it really is 500 feet for the price posted, not 250.
Date published: 2017-07-18
Rated 4 out of 5 by from The 12/2 WG 1000 flot rolls worked out fine. Paul... The 12/2 WG 1000 flot rolls worked out fine. Paul @ P&L Electrical .
Date published: 2017-06-14
Rated 5 out of 5 by from Not much to say about it, its 12-2 w/ground. Works as it should. Not much to say about it, its 12-2 w/ground. Works as it should.
Date published: 2017-03-28
Rated 5 out of 5 by from Yep, met expectations The Southwire is good quality wire at a good value
Date published: 2017-05-16
Rated 5 out of 5 by from Excellent Excellent product, very flexible and easy to pull.
Date published: 2017-04-18
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-07-13
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-07-13
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-08-16
