Model # 22958399

Internet #204632156

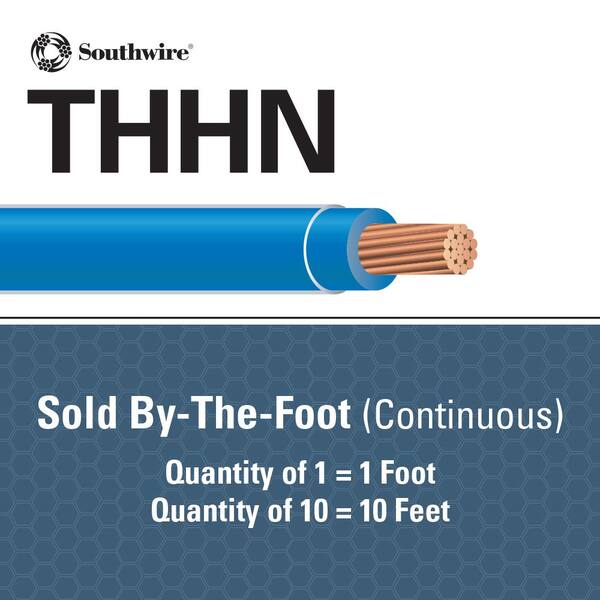

Southwire (By-the-Foot) 14 Blue Stranded CU THHN Wire
0032886918582

Southwire

(By-the-Foot) 14 Blue Stranded CU THHN Wire

  • #14 AWG commercial wiring - Sold by the Foot
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • #14 THHN comes stranded/solid with variety of colors and lengths
$029 /feet
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • #14 AWG commercial wiring - Sold by the Foot
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • #14 THHN comes stranded/solid with variety of colors and lengths
Southwire’s THHN and THWN-2 is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90˚C.

Enter your desired electrical wire length in quantity box.

Product Overview

Southwire’s THHN and THWN-2 is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90˚C.

Enter your desired electrical wire length in quantity box.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
0.109
Product Height (in.)
0.109
Product Length (ft.)
1 ft
Product Width (in.)
12
Wire/Cable Length (ft.)
1

Details

Allowable Ampacities
15
Cable/Wire Type
THHN
Commercial / Residential
Commercial / Residential
Conductor Gauge
14
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Single Conductor Electrical Wire
Flame Retardant
No
Grounded
No
Indoor/Outdoor
Indoor/Outdoor
Jacketed
Yes
Number of Conductors
1
Outer Color
Blue
Returnable
90-Day
Shielded
No
Stranded or Solid
Stranded
Sunlight / UV Resistant
No
Wet Location Use
Yes
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
N/A

Specifications

Dimensions

Product Depth (in.)
0.109
Product Height (in.)
0.109
Product Length (ft.)
1 ft
Product Width (in.)
12
Wire/Cable Length (ft.)
1

Details

Allowable Ampacities
15
Cable/Wire Type
THHN
Commercial / Residential
Commercial / Residential
Conductor Gauge
14
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Single Conductor Electrical Wire
Flame Retardant
No
Grounded
No
Indoor/Outdoor
Indoor/Outdoor
Jacketed
Yes
Number of Conductors
1
Outer Color
Blue
Returnable
90-Day
Shielded
No
Stranded or Solid
Stranded
Sunlight / UV Resistant
No
Wet Location Use
Yes
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
N/A

More Products With These Features

Search

Questions & Answers

what is the weight of this product?

what is the weight of this product?
Asked by: Sammy
17.32 lbs
Answered by: SouthwireCustomerService
Date published: 2017-04-07

Can I rewire my house using this wire for my lights and outlets?

Asked by: Steven
No, THHN cable cannot be used in residential wiring. A nonmetallic-sheathed (Type NM-B) cable must be used in this application. The above advice is based upon the current edition of the National Electric Code (NEC). Free access to the latest version of the NEC is available online at www.nfpa.org/freeaccess. The NEC and local building codes regulate the types of wire and cable that can be used in specific electrical applications, as well as the manner of installation. Check your local building codes before you start any wiring and cable electrical project and be sure to obtain required permits. When your work is complete, always have it inspected for compliance with local codes to ensure that it has been safely installed.
Answered by: SouthwireCustomerService
Date published: 2016-11-21
