Model # 22960999

Internet #204632159

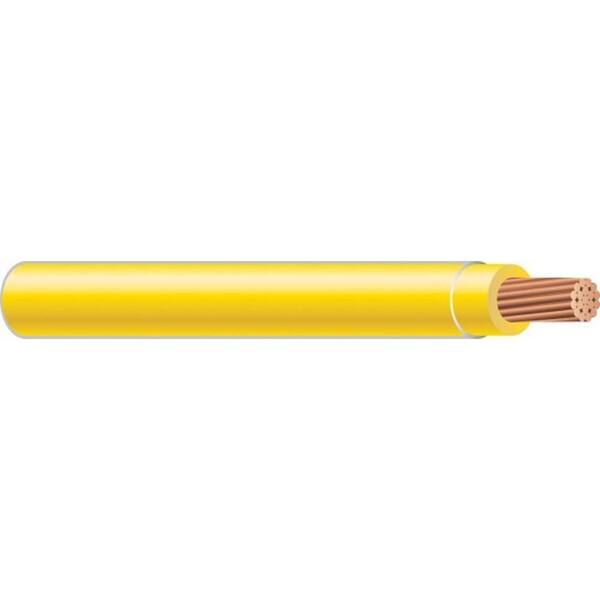

Southwire (By-the-Foot) 14 Yellow Stranded CU THHN Wire
0032886918599

Southwire

(By-the-Foot) 14 Yellow Stranded CU THHN Wire

  • Sold by the Foot
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
$029 /feet
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Southwire’s THHN and THWN-2 is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90˚C.

Enter your desired electrical wire length in quantity box.

Specifications

Dimensions

Product Depth (in.)
0.109
Product Height (in.)
0.109
Product Length (ft.)
1 ft
Product Width (in.)
12
Wire/Cable Length (ft.)
1

Details

Allowable Ampacities
15
Cable/Wire Type
THHN
Commercial / Residential
Commercial / Residential
Conductor Gauge
14
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Single Conductor Electrical Wire
Flame Retardant
No
Grounded
No
Indoor/Outdoor
Indoor/Outdoor
Jacketed
Yes
Number of Conductors
1
Outer Color
Yellow
Returnable
90-Day
Shielded
No
Stranded or Solid
Stranded
Sunlight / UV Resistant
No
Wet Location Use
Yes
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
N/A

More Products With These Features

Search

Customer Questions & Answers

Can this wire be used as a tracker wire for a underground gas line

looking for a tracer wire to install with my ccst gas line. will this work Underground Tracer Wire Underground tracer wire is used to accurately locate underground pipes and lines. The electrical wire tracer is laid alongside the pipes or lines during installation in order to find them at a later date for safe digging. Underground tracer wire is available in sizes 14- 8 6 AWG in an array of colors, depending on the intended use. The insulation is a high molecular weight and high-density polyethylene, which is resistant to abrasions, crushing, chemicals, oils and moisture. Construction and Specifications: The conductor is a solid or stranded copper per spec ASTM B-1, B-3, or B-8. Insulation is yellow, high molecular weight polyethylene (HMWPE) ASTM D-1248 Operating temperature is 70 degree Celsius dry and wet Voltage is 20 & 30 Mil = 30 – 300 volts (45 Mil = 600 volts) 500′, 1000′, 2500′ reels standard, longer lengths available upon request
Asked by: Gerald
This product (THHN/THWN) is not rated for direct burial and should not be used for this application. Instead, we recommend the following product (Tracer Wire) which can be ordered through the Pro Desk if it isn't on the shelf: http://www.southwire.com/ProductCatalog/XTEInterfaceServlet?contentKey=prodcatsheetcond5. Yellow insulation is used for gas lines.
Answered by: SouthwireCustomerService
Date published: 2016-09-12

What is the factor using for wiring your home

Needs to know the Causations
Asked by: Say777
We aren't too sure of your exact needs. However, you can view the most current edition of the National Electric Code (NEC). Free access to the latest version of the NEC is available online at www.nfpa.org/freeaccess. The NEC and local building codes regulate the types of wire and cable that can be used in specific electrical applications, as well as the manner of installation. Check your local building codes before you start any wiring and cable electrical project and be sure to obtain required permits. When your work is complete, always have it inspected for compliance with local codes to ensure that it has been safely installed.
Answered by: SouthwireCustomerService
Date published: 2016-09-06
  • y_2017, m_7, d_25, h_11CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_204632159, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 14ms
  • QUESTIONS, PRODUCT

Customer Reviews

(By-the-Foot) 14 Yellow Stranded CU THHN Wire is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Durable, quality wire that was knot free and easy to handle Durable, quality wire that was knot free and easy to handle
Date published: 2017-06-13
