Square D 100-Amp Safety Switch Neutral Assembly
0785901751366

Square D

100-Amp Safety Switch Neutral Assembly

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

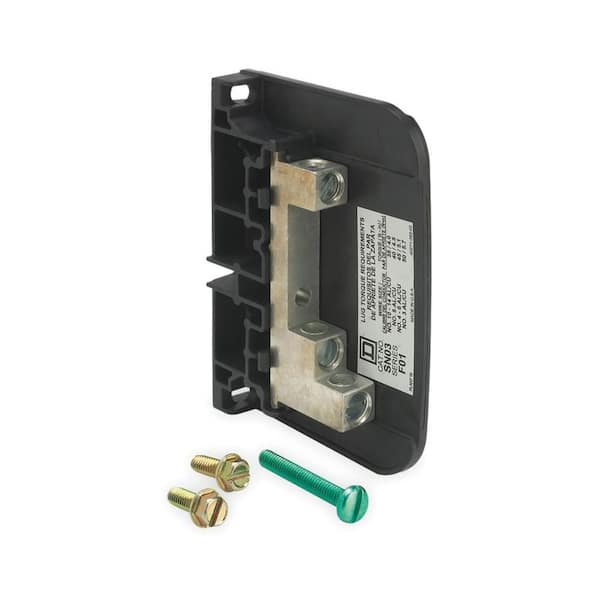

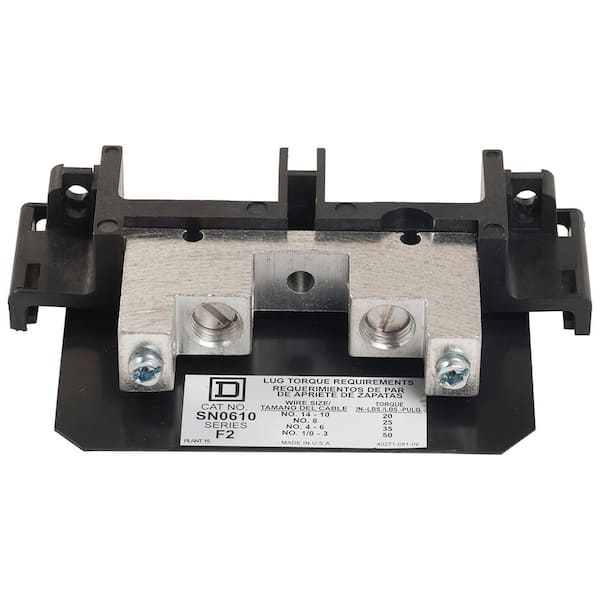

The Square D Solid Neutral Assembly is for use with heavy duty safety switches. It is rated for up to 100 Amp. This assembly is UL Listed.

  • 1 terminal solid neutral assembly
  • Made with aluminum
  • Accepts (2) 1/0 maximum Al/Cu or (2) 6 maximum, Al/Cu wire
  • Use with series F1-F3, F5-F6 (600-Volt) safety switches at 60 Amp or series F2-F6 safety switches at 100 Amp

Specifications

Dimensions

Product Depth (in.)
3
Product Height (in.)
1
Product Length (in.)
3
Product Width (in.)
5

Details

Accessory type
Fitting
Electrical Product Type
Distribution Load Center / Breaker Accessory
Product Weight (lb.)
0.44lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants equipment manufactured by it and sold through authorized sales channels to be free from defects in materials and workmanship for eighteen (18) months from date of invoice by Square D or its authorized sales channel.
