Model # HOM12L200RB

Internet #100199754

Store SKU #742664

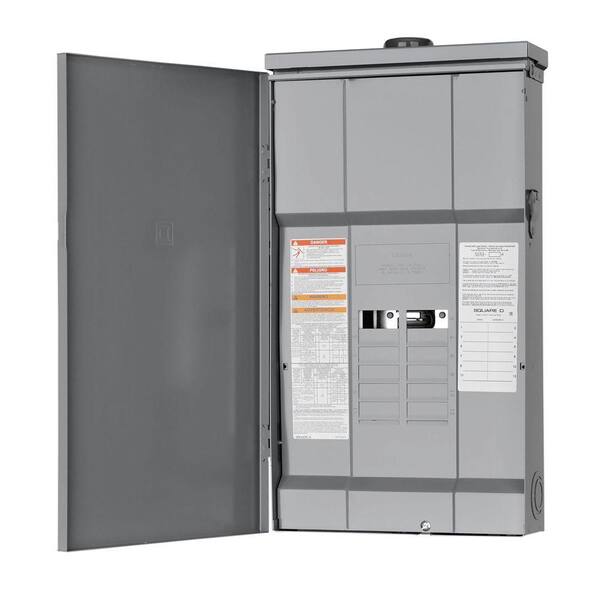

Square D Homeline 200 Amp 12-Space 12-Circuit Outdoor Main Lugs Load Center
0785901107828

Square D

Homeline 200 Amp 12-Space 12-Circuit Outdoor Main Lugs Load Center

$76.97 /each

Frequently Bought Together

Product Overview

The Square D Homeline 200 Amp 12-Space 12-Circuit Outdoor Convertible Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

  • Includes a rainproof outdoor cover and is convertible to main breaker load center with a QOM2 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-In mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

Is the neautral and ground separated or bonded?

Asked by: ferreek
Bonding of load center is performed in the field IF application requires. PK23GTA ground bar kit is ordered separately, if required for application.
Answered by: SchneiderCustomerCare
Date published: 2016-10-19

how many #12AWG grounds and neutrals can I land on the neutral bars?

Also, what is the max AWG that can be landed on the neutral bars, and the ground lug/bar?
Asked by: Chris
Square D provides up to 150% of branch neutral connections required for the number of circuits in a load center.
Answered by: SchneiderCustomerCare
Date published: 2016-09-27

Does this include the 200 amp main breaker?

Asked by: Mh
No. To convert HOM12L200RB to 200A main breaker, addition of QOM2200VH main breaker kit is required.
Answered by: SchneiderCustomerCare
Date published: 2016-06-01
