Model # QOVP2

Internet #100191925

Store SKU #179546

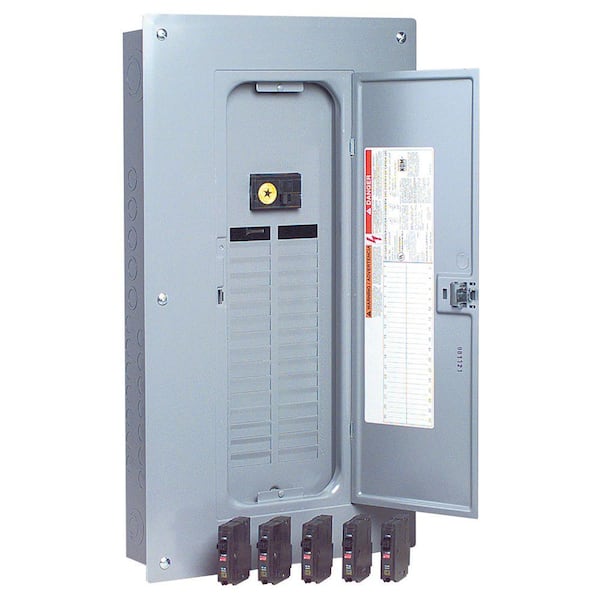

Square D QO 100 Amp 32-Space 32-Circuit Indoor Main Breaker Load Center with Cover Value Pack
0785901334514

Square D

QO 100 Amp 32-Space 32-Circuit Indoor Main Breaker Load Center with Cover Value Pack

  • Ideal for residential, commercial and industrial installations
  • Features copper bus bar plated for reliability
  • Engineered to save time and money
$13900 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

For interior power distribution, the QO 100 Amp 32-Space 32-Circuit Indoor Main Breaker Load Center Pack is the ideal startup kit. This load center accommodates either overhead or underground service feeds and provides knockout holes on the top and bottom of the case for wiring convenience. 5 single-pole 20 Amp circuit breakers are included.

  • Copper bus bar for excellent conductivity
  • NEMA type-1 enclosure with a combination cover
  • Overhead/underground feed with 2-1/2 in. maximum knockouts on the top and bottom
  • Single-phase, 100 Amp , 120/240 VAC, 22,000 maximum short circuit current rating
  • Compatible with QO breakers
  • Surpasses UL and ANSI safety requirements
  • Includes 5 single-pole 20 Amp circuit breakers
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

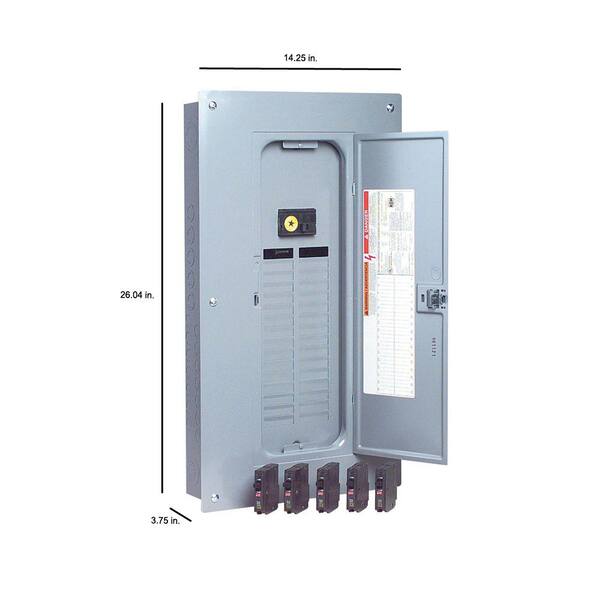

Dimensions

Load center depth (in.)
3.75
Load center height (in.)
26.04
Load center width (in.)
14.25

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
32
Product Weight (lb.)
27.68lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

More Products With These Features

Search

Customer Questions & Answers

Is this panelboard the same that Q0327M100 ,if its not, what is the difference?

Is this panelboard the same that Q0327M100 ,if its not, what is the difference?
Asked by: Castj049
Hello, The QOVP2 includes a QO132M100C load center. It is a single phase load center. The QO327M100 is a 3 phase load center. Regards, Customer Care Center
Answered by: SchneiderCustomerCare
Date published: 2017-03-03

why am i not able to purchace the Square D QOVP2 load center on line. i would like to have this...

why am i not able to purchace the Square D QOVP2 load center on line. i would like to have this shipped to store or my address. when i try to add it to my cart, a pop up tells me its not available for pick up in any stores with in 100 miles. what about shipping it to my address????????? i realy need this panel for a job. please help.
Asked by: Bob
Bob, Sorry you are having problems ordering this item. There are no purchasing restrictions on this value pack. However, this item is to be obsoleted soon and replaced with the new Plug-On Neutral load centers. We are still manufacturing the item, and should be available as a drop ship through the store. I hope this helps. Schneider Electric Customer Care.
Answered by: SchneiderCustomerCare
Date published: 2017-02-15

Does this panel accept Arch fault circuit breakers and whole house surge breaker?

Asked by: Leo
Yes, the QO132M100C load center included in QOVP2 Value Pack will accept QO115CAFI, 15A 1-pole, and QO120CAFI, 20A 1-pole, combination arc fault branch breakers as well as QO2175SB, branch-mounted SurgeBreaker.
Answered by: SchneiderCustomerCare
Date published: 2016-05-24

Will this accept a generator interlock kit?

Asked by: Backup
Load center QO132M100C included in QOVP2 Value Pack will accept QOCRBGK1C generator interlock kit.
Answered by: SchneiderCustomerCare
Date published: 2016-07-10
  • y_2017, m_7, d_25, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_10
  • loc_, sid_100191925, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 14ms
  • QUESTIONS, PRODUCT

Customer Reviews

QO 100 Amp 32-Space 32-Circuit Indoor Main Breaker Load Center with Cover Value Pack is rated 4.8 out of 5 by 5.
Rated 5 out of 5 by from QO is the way to go! Worked out great, worth the few extra bucks for quality
Date published: 2017-07-20
Rated 5 out of 5 by from Great Value. Square D is always top grade parts.... Great Value. Square D is always top grade parts.
Date published: 2017-06-14
Rated 5 out of 5 by from great product this is a great product i have used other panels and bothing has been this user friendly
Date published: 2012-12-19
Rated 5 out of 5 by from Square D Quality, competitively priced. Panel was competitively priced - less than local electrical supply house and it was in-stock ready for pickup. The included breakers are a bit of a gimmick since in this application they weren't necessary. They'll get used on another project though.
Date published: 2013-12-11
Rated 4 out of 5 by from wrong specs Assembled Height (in.) 17.92 in (????) ....that's wrong... back to hd
Date published: 2013-11-08
