Model # QO24L70SCP

Internet #100153411

Store SKU #577294

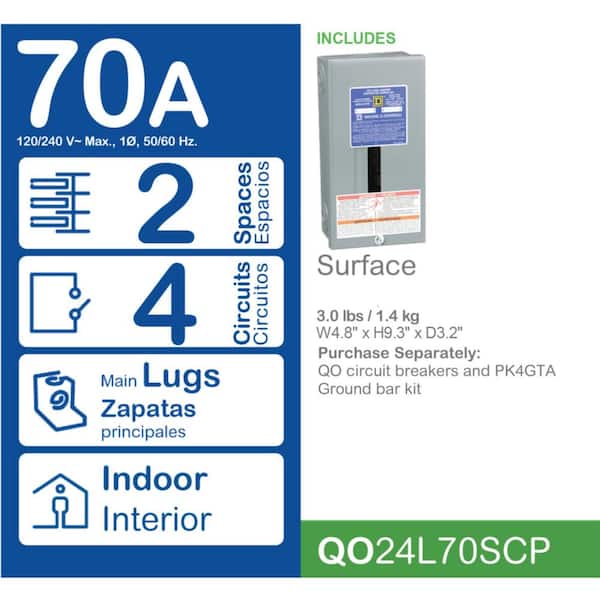

Square D QO 70 Amp 2-Space 4-Circuit Indoor Main Lug Load Center with Surface Mount Cover
0047569804366

Square D

QO 70 Amp 2-Space 4-Circuit Indoor Main Lug Load Center with Surface Mount Cover

  • For residential or commercial power distribution
  • Fixed Main Lugs Configuration
  • 10 Year Residential Warranty
$1747 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Square D QO 70 Amp 2-Space 4-Circuit Fixed Main Lugs Indoor Load Center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged themoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • Includes a surface mount indoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$17.47 /each
$23.97 /each
$32.58 /each
$32.58 /each
Name QO 70 Amp 2-Space 4-Circuit Indoor Main Lug Load Center with Surface Mount Cover QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center with Surface Mount Cover QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center with Surface Mount Cover QO 100 Amp 6-Space 12-Circuit Indoor Flush Mount Main Lug Load Center with Cover and Door
Brand Square D Square D Square D Square D
Ratings (0) (4) (1) (2)
Indoor/Outdoor Indoor Indoor Indoor Indoor
Number of Phases 1 1 1 1
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 70 100 100 100
Number of Spaces 2 6 6 6
View Product View Product View Product View Product

Specifications

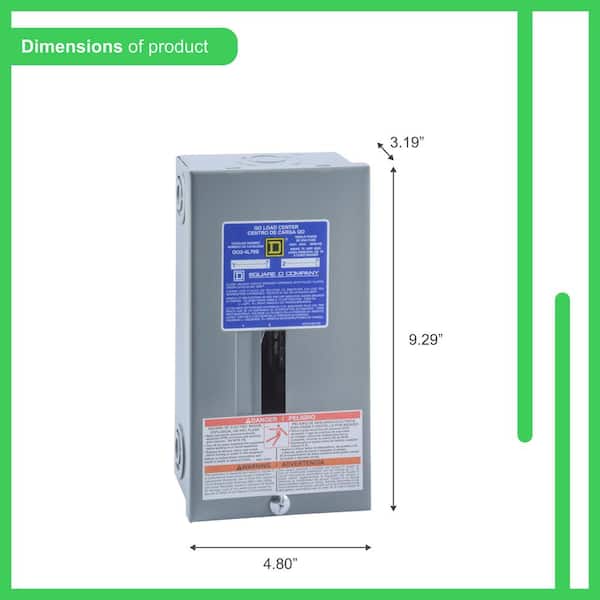

Dimensions

Load center depth (in.)
3.19
Load center height (in.)
9.3
Load center width (in.)
4.81

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
70
Mounting type
Plug In
Number of Phases
1
Number of Spaces
2
Product Weight (lb.)
3.84lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

More Products With These Features

Search

Customer Questions & Answers

can you show me a wiring diagram for this model

Asked by: andy
http://static.schneider-electric.us/docs/Electrical%20Distribution/Load%20Centers/QO%20Single%20Phase%20Load%20Centers/3018.pdf
Answered by: SchneiderCustomerCare
Date published: 2016-08-06

Will this accommodate two isolated bus bars (neutral & ground) for use as a sub-panel?

Asked by: Sparky
This product is a 70A 2 space sub panel. It has two lugs to accept your hot and an neutral and ground. Square D Sub panels must have the neutral and ground isolated.
Answered by: SchneiderElectricProductExpert
Date published: 2016-02-14
