Suncourt Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator
0066028034052

Suncourt

Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator

$127.00 /each

Frequently Bought Together

Product Overview

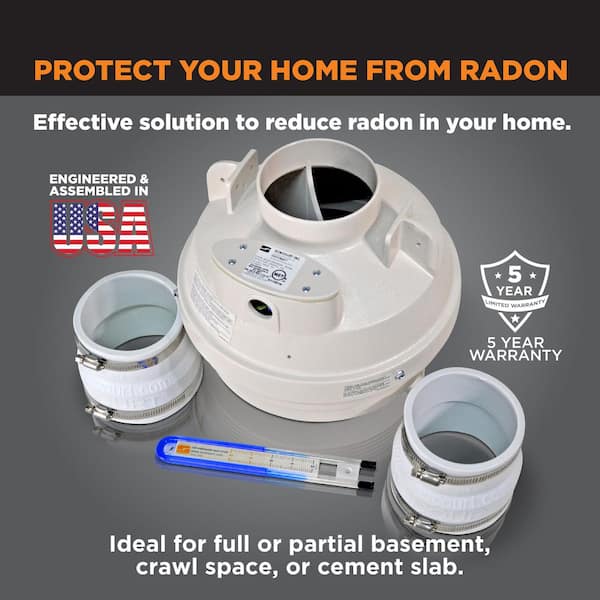

The Suncourt Radon Mitigation Fan Kit features a thermal plastic resin housing that is watertight and resistant to UV rays to help protect the motor. The motor casing has an automatic thermal reset for overload protection. The kit includes a 4 in. input/output fan, an air pressure indicator, 2 white 4 in. to 3 in. rubber couplers and mounting hardware for your convenience. It is ETL listed for both indoor and outdoor use.

  • Front line of defense against elevated radon levels in the home or office
  • Effective way to reduce radon related health risks to families
  • Motor has an enclosed casing and an automatic thermal reset for overload protection
  • Works in rooms up to 3500 sq. ft.
  • Thermal plastic resin housing is UV resistant, watertight and epoxy sealed for performance and durability
  • Mounting hardware included
  • Kit includes 4 in. input/output fan, air pressure indicator and 2 white 4 in. to 3 in. rubber couplers
  • Motor operates at 4 sones
  • 5 year limited warranty
  • Conforms to UL 705
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$147.91 /each
$165.53 /each
$166.61 /each
$173.49 /each
Name 4 in. Centrifugal Tube Fan with Cord Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator 6 in. Centrifugal Tube Fan with Cord Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 4 in. Couplers and Air Pressure Indicator
Brand Suncourt Suncourt Suncourt Suncourt
Ratings (13) (52) (10) (48)
View Product View Product View Product View Product

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

12 Questions14 Answers

Customer Questions & Answers

Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator
Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator

Ask your questions. Share your answers.



Clear Search Term


Sort By:

3 answers

Is there a light indicator showing that the fan is on?

This question is from Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator
Asked by
Massachusetts
Read all my Q&A
September 29, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
finger lakes region
Read all my Q&A
September 20, 2016
Answer:
No, but you can incorporate a light on a switch or you can visually see if fan is running on the vacuum gauge that comes with the fan kit.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Read all my Q&A
January 31, 2016
Answer:
No. Just a pressure indicator but it is not a light
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

October 6, 2015
Answer:
There is an air pressure indicator included in this kit.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

Home has 5.8 in the basement. Does the fan have variable speeds so that I may adjust it so that I don't waste power on the fan and lose heat/cooling?

This question is from Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator
Asked by
Hillsborough, NJ
Read all my Q&A
September 7, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

September 7, 2016
Answer:
Hello,
When installed as a sub-slab depressurization fan there should be little to no loss of heated or cooled air. The suction side of the fan is sealed under the slab of the home and is not open to the homes conditioned air. We do not recommend a variable speed switch on radon fans for one main reason. If you lower the RPM's, and consequently the suction, to much the fan can not do its job. Lower Read More
Hello,
When installed as a sub-slab depressurization fan there should be little to no loss of heated or cooled air. The suction side of the fan is sealed under the slab of the home and is not open to the homes conditioned air. We do not recommend a variable speed switch on radon fans for one main reason. If you lower the RPM's, and consequently the suction, to much the fan can not do its job. Lower RPM's mean lower suction. At some point the suction effect of the house would pull the radon into the home as if you did not have a radon fan. You also do not change the wattage used appreciably with a fan speed controller. Running watts of the Radon Mitigation fan are 77 watts. If you have any questions about this please contact us at 800-999-3267 M-F 8-4:30 central time. We would be happy to answer your questions.
Thanks,
Suncourt
Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

Your fan will be mounted in basement..can it be mounted horizontally there? No water can get it...thanks

This question is from Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator
Asked by
Read all my Q&A
August 2, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

August 4, 2016
Answer:
Hello,
Radon mitigation fans should not be mounted in a basement or in a horizontal position. Radon mitigation fans should be outside or above all living spaces. Radon Mitigation fans should only be mounted vertically. The vertical mounting allows moisture that condensates in the pipe to flow through the fan. If the fan is mounted horizontally a pool of moisture can form in the low part of the fan and Read More
Hello,
Radon mitigation fans should not be mounted in a basement or in a horizontal position. Radon mitigation fans should be outside or above all living spaces. Radon Mitigation fans should only be mounted vertically. The vertical mounting allows moisture that condensates in the pipe to flow through the fan. If the fan is mounted horizontally a pool of moisture can form in the low part of the fan and impact the fan blade.
If you have any further questions please contact us at 800-999-3267 M-F 8-4:30 central time.
Thanks,
Suncourt Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

I have 1900 sq. feet of basement..thinking of 2 penetrations in slab about 40' apart..feed to one fan outside using 3"

This question is from Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator
Asked by
Read all my Q&A
July 30, 2016
Will the 4 to 3 work ok?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

August 2, 2016
Answer:
Sure 4" to 3" will work find. It is really a matter of preference. You might consider doing one penetration and then testing before you do a second penetration. You might not need it.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
2 »
  • 2016-10-30 T23:10:59.855-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202669564, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 94ms
  • QUESTIONS, PRODUCT

Customer Reviews

Radon Mitigation Fan Kit 4 in. Fan with 4 in. to 3 in. Couplers and Air Pressure Indicator is rated 4.4 out of 5 by 52.
Rated 4 out of 5 by from The Fan kit was easy to replace but not rewire. Had to call an electrician for that. wires in the... The Fan kit was easy to replace but not rewire. Had to call an electrician for that. wires in the kit need to be longer, more manageable. But works fine now (quiet) seems to have a good draw and was a good value considering a $800-$1000 visit from a radon repair company
Date published: 2016-12-07
Rated 5 out of 5 by from Suncourt Radon mitigation fan Good product, easy to install. You will need a cord, I cut one off of an old halogen shop light (2 prong with a ground). Unit only pulls about a 1/2 amp so it does not have to be a very heavy wire.
Date published: 2016-10-04
Rated 5 out of 5 by from DIY radon mitigation fan The installation from beginning to final needs to be researched before starting. Lots of videos on line can help. This Old House has an excellent video on installing Radon Mitigation.
Date published: 2016-09-20
Rated 5 out of 5 by from Easy to install (the 3 in is really about 3.5 inch OD pipe) and lower the radon level within a fe... Easy to install (the 3 in is really about 3.5 inch OD pipe) and lower the radon level within a few days to below 3 pCi/L. Wish they'd include the power cord (maybe 15-20 ft).
Date published: 2016-12-06
Rated 4 out of 5 by from So far I am quite pleased with this fan. It is remarkably quiet, quieter than basically any bath... So far I am quite pleased with this fan. It is remarkably quiet, quieter than basically any bathroom ceiling fan. Installation was a breeze, just had to cut the passive 4" pipe with a little extra clearance to make sure the fan doesn't touch the existing pipe (to minimize any noise transmission). I didn't bother using the brackets. The unit needs to be level, which is a little bit tricky, but a short hand level seemed to do the job. The couplings seem nice, but are not the right size for most installations, I would think (including mine). But standard black rubber couplings worked fine, and noise transmission doesn't seem to be a problem. As others noted, you will need an old 3-prong cord from something (no need to hard-wire it into a box). The device is only 75 watts, so it needn't be especially heavy-duty. My basement is a typical 4-bedroom size, and the negative pressure per the manometer looks ok (the scale is NOT calibrated; no idea why not. Also note the the fluid is some sort of viscous oil, so water is probably not the best thing to replenish with, if needed). I mounted it in the basement. Rules say don't do that, since if the top connector somehow comes off, or that pipe breaks inside the basement, subslab air will be pumped into the house -- not good. But it is nearly impossible to imagine how that would happen in most situations; consider yours carefully and if it seems more prudent, install it outside (harder to wire, of course) or in the attic. Unfortunately it is too early to comment on its longevity; I'm hoping for the best. It seems reasonably well built. Hence only 4 stars so far, 5 if it lasts 10 yrs.
Date published: 2016-12-07
Rated 5 out of 5 by from Nice fresh air fan My goal was to get some fresh air moving in the basement. If this fan could accomplish that goal, I had planned to buy a second fan, to add a full radon removal setup to the sump hole where we have radon. (Radon is only emitted from one of our four sump holes). However, after adding this fan in another area (well away from the radon source), the radon detectors (at the source) now indicate normal radon gas levels. I've checked it twice and our radon problem seems to be gone. Just by adding a little fresh air flow. Currently running the fan 7 hours a day, and the average reading this morning is 1.6 pCi/L (third test). Tested with both detectors hanging 16" above the 'open' sump hole. The 'Before' (fresh air fan) reading was 4.6 pCi/L with the sump hole sealed. (Before flooding necessitated installing the sump pump).
Date published: 2013-06-25
Rated 5 out of 5 by from Good buy When my house was built 25 years ago, contractor installed 3" ABS piping to roof, including sub-slab perf pipe for future radon mitigation. My radon levels measured over twice the recommended 4 pC/L, so I finally got around to mitigation as a DIY project. I had problem in attic, because the existing pipe was almost all at 45 degrees, with not enough vertical for the fan. I had to modify attic pipes and elbows to get a 22.5 degree angle, allowing a good vertical run for the fan, after which the installation was pretty straightforward. I haven't yet measured my post-mitigation radon level - expect to do that in a week or so. Just a little bit of noise heard in room below.
Date published: 2016-04-19
Rated 4 out of 5 by from Radon Mitigation Fan Kit The price was good Fan installed easily Problem with the fan gives off a hum noise thru entire wall. Very noticeable in the garage where the pipe goes up the wall into the attic of the garage, then out thru the roof. I've tried putting pieces of rubber backed carpet behind the mounting flanges but it is still sending the hum noise on the end of the house wall. I'll have to figure out something for the mounting to stop the resonation hum thru the entire wall. More rubber I guess, anyone with suggestions. This is my first time dealing with this type of fan so I'm not sure weather there all this way no matter what brand you get. So can I recomend it, the price was very good for what you received, now lets see how long it runs for. I saved about 750 dollars by installing it myself, plus I hired a person to go up on the roof to install the roof flang. My total cost was about 350 dollars and took about 10 hrs. at a slow and easy pace (over 3 days). The fan seems to be doing the job according to the vacume meter. I'll do another Radon test in a couple of weeks and I hope it goes from 29 down to below 4.
Date published: 2012-08-12
