Unique Home Designs

Model # SPD02020601049

Internet # 202327088

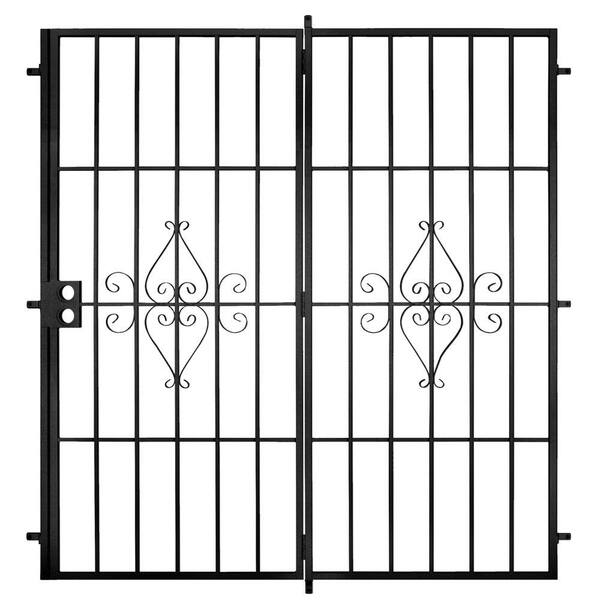

60 in. x 80 in. Su Casa Black Projection Mount Outswing Steel Patio Security Door with No Screen

This item has been discontinued.
The Home Depot no longer carries this specific product.
Please select another option below.

$699.00 /each




Model # SPD02020601049

Internet # 202327088

The Su Casa patio security door is designed for wide sliding door installations. Tasteful scrollwork makes an understated design statement, while welded-steel construction provides superior strength. This door uses a mounting system that projects the door 3 in. away from the home's surface. There is no screen in the patio door.

  • Made from steel for strength with a heavy-duty 2 in. x 1 in. frame
  • No screen for maximum visibility
  • 1/2 in. Square-tube, forged steel pickets with decorative scroll work
  • Heavy-duty lockbox with 2-3/8 in. backset (lockset not included)
  • Protective powder-coat for a beautiful and durable finish
  • Reversible for left or right active door allows versatility when installing
  • Projection mount door affixes over the sliding patio door, and it projects 3 in. from the mounting surface (1 in. flat surface required for installation), see image in Info & Guides Specifications
  • 4" One-way screws and one-time-use one-way driver bit included
  • Use Unique Home Designs one-way screw drill bit driver for easier installation (not included)
  • Fits most standard-sized entryways with a 60 in. x 80 in. entry door, see measure instructions and fit ranges under Info & Guides Instructions/Assembly
  • The overall dimensions of the door including the frame is 61-1/4 in. x 80 in. The dimensions of the door including the frame tabs (tip to tip) is 65-1/4 in. x 84 in.
  • For installation help see the installation video and the installation instructions in Info & Guides

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.


Door Size (WxH) in.
60 x 80
Door Thickness (in.)
.75 in
Color Family
Powder-coat Black
Door Configuration
Double Door
Door Handing
Door Material
Door Type
Finish Type
Product Weight (lb.)
91 lb
Warranty / Certifications
Manufacturer Warranty
Limited Lifetime


Rated 3.8 out of 5 by 47 reviewers.
Rated 4.0 out of 5.0 by does the job, looks good Much less cost than custom, but is hollow rather than solid steel. Gives the security I need for a bedroom door that I want to leave open at night for the cool breeze. Note: Passive side does not open, both sides do not open as described. Not a problem for my application September 6, 2011
Rated 4.0 out of 5.0 by good delivery, Quality, and Installation were good. Also, It was painted very nice. the price was fair for this product. March 27, 2012
Rated 5.0 out of 5.0 by wonderful and strong looking security gate Beautiful finish and perfect size for my new French doors! January 29, 2014
Rated 1.0 out of 5.0 by Unreliable handling by Home Depot. Save your money! The product itself is not bad, but parts were missing when it arrived so instead of waiting another month for the missing parts we went to another store to get the parts they neglected to send. March 20, 2012
Rated 5.0 out of 5.0 by The product is a good one but is incomplete. The product is of good construction but it needs a security strip near the center L bracket on the door nob side of the door. On both sides of the door needs security screens. The bottom L bracket needs to be pointed down on the outside of the bottom frame so it can be bolted to the concrete. The L brackets hole should be drill one inch from the end of the tab. January 2, 2013
Rated 5.0 out of 5.0 by very satisfied One afternoon someone walked up to a neighbors patio door, smashed in the glass, walked in, and walked out with a new flat screen TV, leaving my neighbors to pick up the pieces. I felt way too vulnerable so immediately started looking for a way to avert that from happening to our house and came across this product! Exactly what I had in mind. I ordered and installed and am very pleased with the end result. The price of the unit is very good. However, the shipping charge was expensive (~99$) and took about two weeks. The product quality is very good with the exception of the rushed paint job. I had to use a can of white spray paint to touch up some rust spots and uneven painted areas but not a big deal. I did not use the included security screws because after 4 stores I couldn't find a driver for them and based on other reviews I just tossed them in the loose screw bucket. I used heavy duty 4 inch screws installing with silicone on the threads to enhance seal integrity (as another reviewer suggested). I then used silicon and lock-tight to deface the screw heads. Lastly, I painted the screw heads white to disguise which matches the gate. I installed a lever doorknob so I can still use the screen (clears the knob) with nice weather and feel secure, but rely on a small strand of robust chain (painted white to match) wrapped around (used clear silicone to attach the chain links in convenient position on the mounted frame) the frame near doorknob and a heavy-duty designer combination padlock to secure. This makes it secure and qwik and easy to exit/enter. The design is such that you can modify it any way you want basically, My install is solid, looks nice, and makes a statement. For the money you will not do better. I highly recommend this as an investment to your home. Now I worry less while away and the beach will feel that much better! February 23, 2013
Rated 5.0 out of 5.0 by Just the right security door! I knew I had the right security door for my patio door. It closes halfway only just like the sliding door. . The only thing I have to use two different lock sets without knob or else you cannot really close the door. It is gonna bump your sliding door. One lock set you can lock and unlock from inside and can be picked from outside to unlock. I have to get another lockset that has a keyhole so you can only lock and unlock either inside or outside with a key. I chose a deadbolt. It works perfectly. I love the most is I can lock my security door when I am at the backyard without worrying someone may enter my house thru the patio door. April 14, 2015
Rated 5.0 out of 5.0 by Great value for money I am very pleased with these gates. I needed extra security for my french doors after having two break-ins in a month. Installation would have been easier if the instructions had said to use a 1/4inch drill bit, not the 3/16ths they tell you to use which is too small and impossible to get the screws in. But all in all a great product at a great price! May 15, 2011
