VELUX

Model # QPF 2222 2005

Internet # 202038755

Store SKU # 475201

22-1/2 in. x 22-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass

Frequently Bought Together

Product Overview

VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.

  • Features pre-installed metal pan-flashing, welded and painted flashing joints, and protective aluminum cladding - a combination which adds strength and durability
  • Designed for use with roofing sealant based installation with thin roofing materials, like asphalt shingles
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for a 30% federal solar tax credit and allows you to control the light
  • Consider upgrading to a solar powered fresh air skylight (model VSS) to bring both natural sunlight and fresh air into your home using only the power of the sun, plus it is eligible for a 30% federal solar tax credit, making it very affordable
  • Features tempered energy efficient, Low-E3, argon-filled, dual glass panes
  • Please note: We recommend and most building codes require laminated glass for out of reach applications

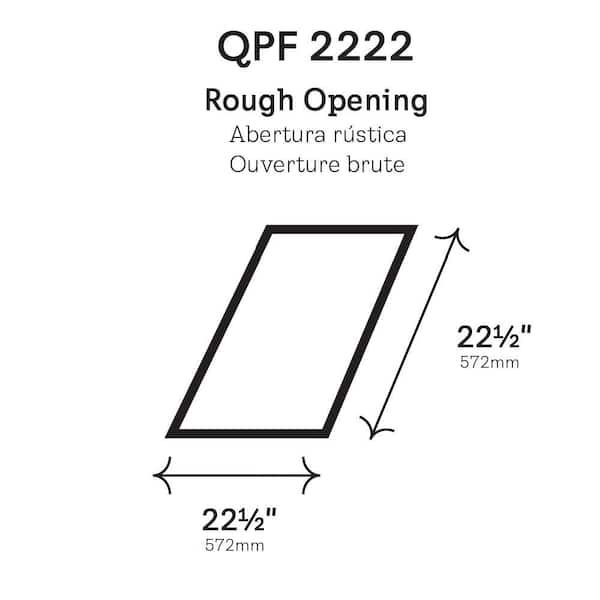

  • VELUX QPF 2222 dimensions for rough opening are 22-1/2 in. wide x 22-1/2 in. tall

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
2.63
Product Depth (in.)
3.5
Product Height (in.)
24.19
Product Width (in.)
24.19
Rough Opening Height
22.5 in
Rough Opening Width
22.5 in

Details

Cladding Type
Aluminum
Color Family
Gray
Color Family
Grays
Flashing Included
Yes
Frame Material
Wood
Glazing type
Tempered glass
Hardware Included
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
14
Product Weight (lb.)
29.6 lb
Returnable
90-Day
Severe weather ready
Yes
Skylight Mounting Type
Self Flashed
Skylight material
Glass
U-Factor
0.44
UV protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

More Products With These Features

Search

Customer Questions & Answers

20 Questions25 Answers

Customer Questions & Answers

22-1/2 in. x 22-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass
22-1/2 in. x 22-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass

Ask your questions. Share your answers.



Clear Search Term


Sort By:

1 answer

can I get it 34 1/2 X 55 1/2

This question is from 22-1/2 in. x 22-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass
Asked by
Read all my Q&A
June 18, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

June 20, 2016
Answer:
We do not offer your requested size in the QPF pan flashed unit. If you need a special size skylight, we can custom make our FCM (fixed curb mount) unit only. Thank you for choosing VELUX!
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

What is the Thermal Properties on the glass for this model. (SHGC), UV, VT and U-Factor?

This question is from 22-1/2 in. x 46-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass
Asked by
Read all my Q&A
June 23, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

June 27, 2016
Answer:
The UV Factor is .45. The Solar Heat Gain Co-efficiency (SHGC) is .24. The Visible Transmittance (VT) is .57. The UV Protection is 95.2 percent. Thank you for choosing VELUX!
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

Can this skylight be mounted long side horizontally ?

This question is from 22-1/2 in. x 30-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass
Asked by
Texas
Read all my Q&A
May 4, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

May 11, 2016
Answer:
Yes, you can turn the QPF Skylight sideways to install horizontally longer, however, it can only turn in one direction. To clarify, there is a true horizontal top and true horizontal bottom. Be certain to check the labeling on the unit to ensure that you are turning it correctly. Thank you for choosing VELUX!
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

2 answers

Do I need a "flashing kit"?

This question is from 22-1/2 in. x 22-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass
Asked by
Cerritos, CA
Read all my Q&A
March 14, 2016
Do I need a "Flashing kit" for this skylight?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

March 16, 2016
Answer:
No, you do not need to purchase a flashing kit for the QPF Pan-Flashed unit, as the flashing is already integrated onto the skylight. Please be aware that this unit is compatible with an asphalt shingled roof that has at least a 3/12 pitch. Thank you for choosing VELUX!
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

March 15, 2016
Answer:
No, a flashing kit is not required with the skylight as it is pre-flashed.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
2 »
  • 2016-07-23 T16:36:39.506-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202038755, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 103ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.9 out of 5 by 9 reviewers.
Rated 5.0 out of 5.0 by Nice and easy Perfect for my new shed! It Was shipped to me in a couple of days and was easy to install June 7, 2016
Rated 5.0 out of 5.0 by Great Skylight This skylight was very easy to install and high quality. Very good price, would recommend it Thanks Home Depot. May 3, 2016
Rated 5.0 out of 5.0 by Fixed pan-flashed Skylight Great product! Only one that does not leak. Took me 2 hours to install. September 22, 2015
Rated 5.0 out of 5.0 by easy to install I love the windows, clear and the installers said they were easy and a good fit. January 12, 2016
Rated 5.0 out of 5.0 by Great Skylights, Great value! These were purchased as replacements for the "OEM" skylights originally installed on our home. The roof was due for replacement, and one of the original skylights had started leaking. Our roofer had no problem installing the Veluxe lights, and they look infinitely better from the inside. Although they have a slightly smaller window area, they let in far more light, and are much quieter during the rain. Note: Some "experts" will tell you that pan-flashed skylights are significantly inferior to other mounting techniques. It is all down to the quality of the lights themselves, and your installer. the Veluxe skylights are clearly excellent, and there is no way they could leak if properly installed and sealed. December 21, 2011
Rated 5.0 out of 5.0 by Skylights The skylights fit perfectly to replace skylights that had been in my roof for 30 years and had started leaking. I hired a roofer who gave me the measurements, I ordered the skylights that were delivered to my home and the roofer installed five skylights in four hours. October 29, 2014
Rated 5.0 out of 5.0 by Good value and appearance Looks good and fairly easy to install. It hasn't gone through a heavy rain yet but doubt there will b a problem June 17, 2014
Rated 5.0 out of 5.0 by The quailty is great for the price I purchased the skylight in September 2013. In FL during the raining season and summer will give me a better idea of it's performance. As of today I am pleased with the appearance and quality of the product October 8, 2013
