Model # VCS 2234 2004

Internet #204463794

VELUX 22-1/2 in. x 34-1/2 in. Solar Powered Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass

VELUX

22-1/2 in. x 34-1/2 in. Solar Powered Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • Eligible for a 30% federal tax credit
Was  $1,032.08
$87727 /each

Save $154.81 (15%)  through 10/04/2017

15% off on Select VELUX Skylights, Sun Tunnels and Accessories
Promotion Details
Price Valid : 09/21/2017 - 10/04/2017
15% off on Select VELUX Skylights, Sun Tunnels and Accessories
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • Eligible for a 30% federal tax credit

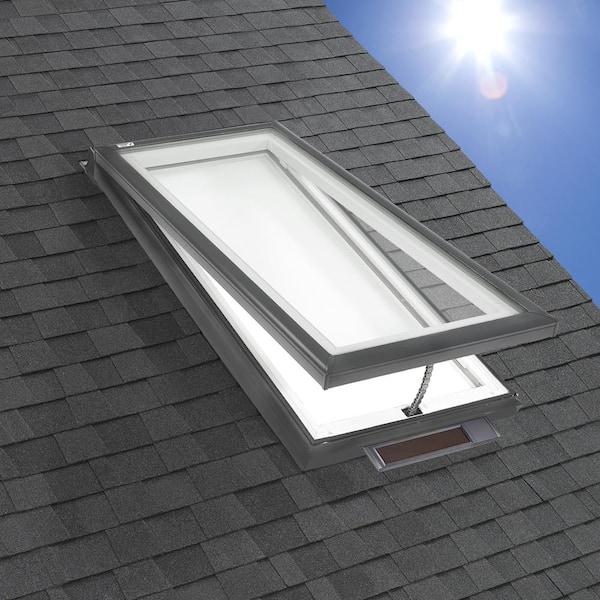

The new solar powered Fresh Air skylight lights up your home and provides proper ventilation using only the power of the sun. It features a solar panel that captures any available daylight and uses it to recharge a highly efficient battery powered operator and control system. The solar panel does not have to be exposed to direct sunlight to function, so it will work on cloudy days and with indirect light.
  • Inside curb dimensions for VELUX VCS 2234 models are 22-1/2 in. x 34-1/2 in. and outside curb dimensions are 25-1/2 in. x 37-1/2 in.
  • Eligible for up to a 30% federal tax credit on both product and installation costs, making this product very affordable
  • Qualifies for a 10-year "no leak" installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60° or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features laminated clean, quiet and safe glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient and has an extra glass pane for added safety
  • Operated by a VELUX integra control pad (included) with easy touch screen control
  • An integrated rain sensor will close the skylight automatically, in case of inclement weather
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for up to a 30% federal tax credit and allows you to control the light
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake and slate roof flashing model ECL 2246 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 2246 0000



  • Click here for more information on Electronic Recycling Programs

Product Overview

The new solar powered Fresh Air skylight lights up your home and provides proper ventilation using only the power of the sun. It features a solar panel that captures any available daylight and uses it to recharge a highly efficient battery powered operator and control system. The solar panel does not have to be exposed to direct sunlight to function, so it will work on cloudy days and with indirect light.

  • Inside curb dimensions for VELUX VCS 2234 models are 22-1/2 in. x 34-1/2 in. and outside curb dimensions are 25-1/2 in. x 37-1/2 in.
  • Eligible for up to a 30% federal tax credit on both product and installation costs, making this product very affordable
  • Qualifies for a 10-year "no leak" installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60° or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features laminated clean, quiet and safe glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient and has an extra glass pane for added safety
  • Operated by a VELUX integra control pad (included) with easy touch screen control
  • An integrated rain sensor will close the skylight automatically, in case of inclement weather
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for up to a 30% federal tax credit and allows you to control the light
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake and slate roof flashing model ECL 2246 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 2246 0000



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
4.25
Product Depth (in.)
5.625
Product Height (in.)
39.375
Product Width (in.)
27.375
Rough Opening Height (In.)
34.5
Rough Opening Width (In.)
22.5

Details

Cladding Type
Aluminum
Color
Neutral Gray
Color Family
Gray
Color Family
Grays
Flashing Included
No
Frame Material
Wood
Glazing type
Laminated glass
Hardware Included
Yes
Insect screen
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Operation
Push button
Operation Type
Solar
Product Weight (lb.)
66lb
Remote Control
Yes
Returnable
90-Day
Rotates for Cleaning
No
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
Telescoping control rod
No
U-Factor
.53
UV protection (%)
99.9

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Specifications

Dimensions

Daylight area (sq. ft.)
4.25
Product Depth (in.)
5.625
Product Height (in.)
39.375
Product Width (in.)
27.375
Rough Opening Height (In.)
34.5
Rough Opening Width (In.)
22.5

Details

Cladding Type
Aluminum
Color
Neutral Gray
Color Family
Gray
Color Family
Grays
Flashing Included
No
Frame Material
Wood
Glazing type
Laminated glass
Hardware Included
Yes
Insect screen
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Operation
Push button
Operation Type
Solar
Product Weight (lb.)
66lb
Remote Control
Yes
Returnable
90-Day
Rotates for Cleaning
No
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
Telescoping control rod
No
U-Factor
.53
UV protection (%)
99.9

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

More Products With These Features

Search

Questions & Answers

Open past the venting position

If the powered actuator arm is disconnected, can the skylight be manually opened past the venting position to allow a person to climb through? Does the hinge open that far?
Asked by: JB
Thank you for the replies! The roof is fairly flat So I am not worried about it sliding off. I think 45 degrees is enough to get through if needed. Just curious, is there terminology for an "accessible skylight" that is designed to allow someone to climb through. I think this product will work for me
Answered by: JB
Date published: 2016-09-13

Does it come with blinds

Asked by: Louis
This does not automatically come with blinds, however, you can order a blind for it and have it pre-installed. Thank you for choosing VELUX!
Answered by: VELUXCustomerServiceTeam
Date published: 2017-09-19

does this come with a screen

does this come with a screen
Asked by: Molly
Yes, our Venting Skylights come with an Insect Screen. Thank you for choosing VELUX!
Answered by: VELUXCustomerServiceTeam
Date published: 2017-08-16

Does "curb mounted" mean a curb must be built on-site to accommodate the skylight, or is the "cu...

Does "curb mounted" mean a curb must be built on-site to accommodate the skylight, or is the "curb" already part of the skylight?
Asked by: Mark
The curb is not included.
Answered by: CommunityAnswer
Date published: 2017-06-09
  • y_2017, m_9, d_23, h_1CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_32
  • loc_, sid_204463794, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 106ms
  • QUESTIONS, PRODUCT

Customer Reviews

22-1/2 in. x 34-1/2 in. Solar Powered Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass is rated 4.5 out of 5 by 8.
Rated 5 out of 5 by from We replaced an acrylic skylight that had developed a leak... We replaced an acrylic skylight that had developed a leak between the layers of the dome. The Velux skylight fit perfectly and was simple to install. The skylight is in the kitchen and that room has limited venting options, mainly a sliding door to outside. The venting skylight is very effective. The control is easy to use and intuitive. Does exactly what we wanted. The 30% tax credit helps.
Date published: 2017-07-25
Rated 5 out of 5 by from I wanted a venting skylight and all ready had the... I wanted a venting skylight and all ready had the opening finished. I removed the existing Velux skylight and placed the Solar Powered one. Fit perfectly and works great. With the tax break and functionality, it is a great purchase.
Date published: 2017-03-28
Rated 1 out of 5 by from I purchased six of these last summer. they are pretty easy to set up and I thought they would be... I purchased six of these last summer. they are pretty easy to set up and I thought they would be great. the rain sensor was cool - they shut automagically when it started raining. really nice. fast forward to not quite one year later. I have had to "reset" the skylights several times through the year to keep them working. this entails getting a ladder, removing the screen, poking a hole with a paper clip and reprogramming the remote - removing the old entry for that skylight and adding the new one. for each of six skylights. Frustrating, but at least they were working. Now, one of them won't reset. I looked online, but there is no info about what do to if it doesn't reset. In fact, on the Velux website, this model of skylight is not even listed in their troubleshooting section. I tried sending them a request on their customer support form several times, but I only get the message back: "We experienced a technical difficulty while processing your request. Your data may not have been correctly saved." Extremely frustrating and no path forward that I see. I would not recommend these.
Date published: 2017-06-17
Rated 5 out of 5 by from superb design and construction These newest skylights from Velux are amazing: they can be operated without an electrical supply, instead being powered from their own solar panels. A built-in rain sensor will close the window automatically. The quality of the construction and design is first rate, and they are easy to install (caveat: well built in this case means heavy). The remote is easy to program and can control many skylights with tons of options. One worry, which I hope isn't a problem in the long run: there's an internal battery charged from the solar panel, but I don't see any way to replace it if it goes bad.
Date published: 2013-10-05
Rated 5 out of 5 by from good product I brought this product last week and it works more than what I expected. Worth for paid money
Date published: 2013-11-12
Rated 5 out of 5 by from WOW this skylight is amazing I have 4 of the older ones that are hard wired and was a little apprehensive ordering this one but was certainly impressed. It's been installeda couple months now and it's spectacular. The operation in smooth and quiet, the controller is easy and impressive.
Date published: 2014-10-28
Rated 5 out of 5 by from Very well made product---so far I rated the 'installation' as "excellent" based only on the unit itself. For a DIY homeowner, if the opening for the skylight has yet to be cut and/or the 'curb' has not been built onto which the skylight is mounted, then this becomes a much more involved, and complicated project. That being said, Velux has made a very good product which looks very weather proof. Because it is a solar system there is no wiring to run, and the solar panel mounts very easily with only two screws and a simple snap electrical connector. The remote, touchsreen, control module is very easy to operate and the rain sensor worked flawlessly. Because I have only had the unit installed for about 2 weeks, I have no way to rate the quality beyond that time frame.
Date published: 2016-05-17
Rated 5 out of 5 by from Thought I made a mistake, but.... Thought I made a mistake, but....We love the solar powered skylight!!!!! I had buyers remorse at first, but after was installed, and we started using it, couldn't be more happy. It lets so much air threw, I cant believe it myself. Plus the quality is there! You wont regret it.
Date published: 2015-09-15
