The product you chose is discontinued, but we found something similar you might like.
22-1/2 in. x 46-1/2 in. Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass
  • VELUX
  • Model VCM 2246 2004
  • Internet #202094074
  • Store SO SKU #392428

22-1/2 in. x 46-1/2 in. Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass

Discontinued Model:

Model # VCM 2246 205RS01

Internet #203229806

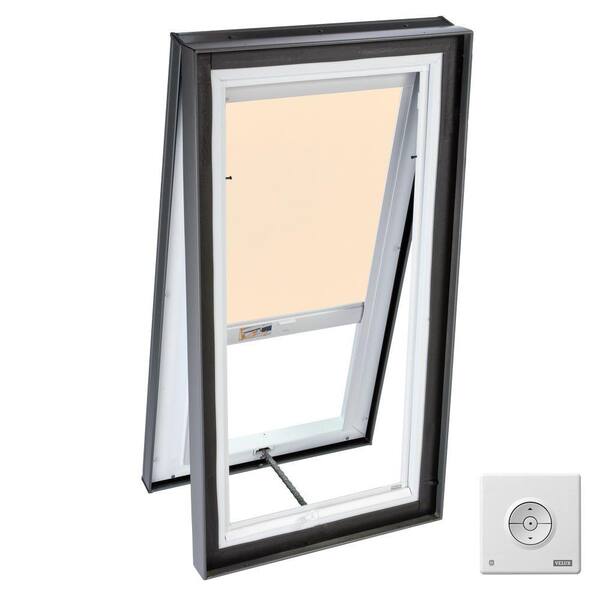

VELUX 22-1/2 x 46-1/2 in. Venting Curb-Mount Skylight with Tempered LowE3 Glass, Beige Solar Powered Light Blind-DISCONTINUED

Discontinued VELUX

22-1/2 x 46-1/2 in. Venting Curb-Mount Skylight with Tempered LowE3 Glass, Beige Solar Powered Light Blind-DISCONTINUED

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

VELUX Fresh Air skylights are an energy-efficient way to bring both fresh air and sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.
  • Inside curb dimensions for VELUX VCM 2246 models are 22.5 in. by 46.5 in. and outside curb dimensions for VCM 2246 models are 25.5 in. by 49.5 in.
  • This model includes a light filtering blind, which allows soft, diffused light to enter the room, providing optimum daylight control
  • Solar powered blind is operated by a radio frequency keypad (included) that will work from anywhere in the room
  • Qualifies for a 10-year "No Leak" installation warranty when installed with VELUX ECL shingle roof or ECW tile roof flashing (sold separately) on a roof pitch between 10 and 60 degrees
  • Features tempered energy efficient, Low-E3, argon-filled, dual glass panes
  • Consider upgrading to a Solar Powered Fresh Air Skylight (model VCS) to bring both natural light and fresh air into your home using only the power of the sun, plus it is eligible for a 30 percent federal solar tax credit, making it very affordable
  • Manual control rod (ZCT 300) or motorized control rod (ZMT 300) for venting skylights are sold separately for out-of-reach applications
  • Please note: we recommend and most building codes require laminated glass for out of reach applications

Product Overview

VELUX Fresh Air skylights are an energy-efficient way to bring both fresh air and sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.

  • Inside curb dimensions for VELUX VCM 2246 models are 22.5 in. by 46.5 in. and outside curb dimensions for VCM 2246 models are 25.5 in. by 49.5 in.
  • This model includes a light filtering blind, which allows soft, diffused light to enter the room, providing optimum daylight control
  • Solar powered blind is operated by a radio frequency keypad (included) that will work from anywhere in the room
  • Qualifies for a 10-year "No Leak" installation warranty when installed with VELUX ECL shingle roof or ECW tile roof flashing (sold separately) on a roof pitch between 10 and 60 degrees
  • Features tempered energy efficient, Low-E3, argon-filled, dual glass panes
  • Consider upgrading to a Solar Powered Fresh Air Skylight (model VCS) to bring both natural light and fresh air into your home using only the power of the sun, plus it is eligible for a 30 percent federal solar tax credit, making it very affordable
  • Manual control rod (ZCT 300) or motorized control rod (ZMT 300) for venting skylights are sold separately for out-of-reach applications
  • Please note: we recommend and most building codes require laminated glass for out of reach applications

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
7.26
Product Depth (in.)
5.625
Product Height (in.)
49.5
Product Width (in.)
25.5
Rough Opening Height (In.)
46.5 in
Rough Opening Width (In.)
22.5 in

Details

Cladding Type
Aluminum
Color Family
Beige
Color Family
Grays
Flashing Included
No
Frame Material
Wood
Glazing type
Tempered glass
Hardware Included
Yes
Insect screen
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Operation
Lever
Operation Type
Manual
Product Weight (lb.)
66.8lb
Remote Control
Yes
Returnable
90-Day
Rotates for Cleaning
No
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
Telescoping control rod
No
U-Factor
0.54
UV protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Specifications

Dimensions

Daylight area (sq. ft.)
7.26
Product Depth (in.)
5.625
Product Height (in.)
49.5
Product Width (in.)
25.5
Rough Opening Height (In.)
46.5 in
Rough Opening Width (In.)
22.5 in

Details

Cladding Type
Aluminum
Color Family
Beige
Color Family
Grays
Flashing Included
No
Frame Material
Wood
Glazing type
Tempered glass
Hardware Included
Yes
Insect screen
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Operation
Lever
Operation Type
Manual
Product Weight (lb.)
66.8lb
Remote Control
Yes
Returnable
90-Day
Rotates for Cleaning
No
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
Telescoping control rod
No
U-Factor
0.54
UV protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
