VELUX M02/M04/M06/M08 Low-Profile Flashing with Adhesive Underlayment for Deck Mount Skylight

VELUX

M02/M04/M06/M08 Low-Profile Flashing with Adhesive Underlayment for Deck Mount Skylight

  • Required for VELUX No Leak Skylight installation warranty
  • Engineered to fit VELUX skylights perfectly for easy installation

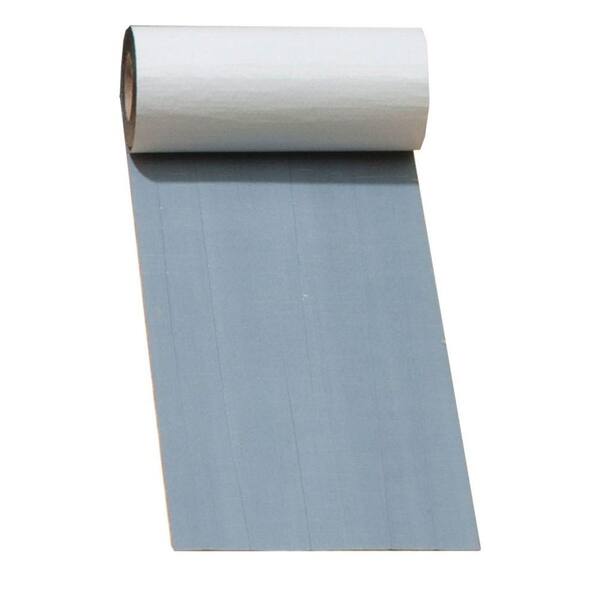

  • Includes adhesive underlayment for watertight protection
$95.98 /each

Frequently Bought Together

Product Overview

This Deck Mount Skylight Flashing Kit interweaves with your roofing material to help provide proper water drainage. The included adhesive underlayment provides an additional layer of water protection. When paired with the new VELUX "No Leak" Skylight (models FS/VS/VSE/VSS) this flashing makes the skylight eligible for the VELUX 10-year No Leak installation warranty.

  • VELUX EDL flashing is designed for use on roofs with shingles, shakes, or slate with a minimum pitch of 14°s and a maximum pitch of 85°
  • EDL M08 flashing is designed specifically to fit VELUX FS/FSR/VS/VSE/VSS models in sizes M02, M04, M06, and M08
  • Flashing kit model cannot be installed on skylights from other manufacturers, or other VELUX skylight models not noted above
  • EDL flashing is not designed to work with a tile or metal roof, or curb mount skylights

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

More Products With These Features

Search

Customer Questions & Answers

I HAVE FSR MO2 2004 VELUX WHAT FLASHING DO I NEED

Asked by: FIXITMAN
If you have a minimum pitch of 3/12 and you have an asphalt shingled roof, you will need the EDL M08 0000B Step Flashing Kit. If you have a tile roof, the EDW M02 0000A High Profile Flashing. If you have a standing seam metal roof, the EDM M02 0000B Metal Roof Flashing. Thank you for your inquiry.
Answered by: VELUXCustomerServiceTeam
Date published: 2015-10-12

will this fit the: VS 306 0075h 32 ar06a Skylight???

Asked by: tom24
Hello. No, this flashing kit is designed to be installed with VELUX skylight models beginning in 2010. Please contact VELUX Customer Service directly to determine which older flashing kit model to use with your skylight. 800-888-3589
Answered by: VELUXCustomerServiceTeam
Date published: 2015-09-20

am i ordering M08 for all and adjusting length to fit M06

Asked by: Anonymous
Yes, if you have a shingle roof you will order the EDL M08 even though you have the M06 skylight. You will just not use all the step pieces. Thank you.
Answered by: VELUXCustomerServiceTeam
Date published: 2015-09-17

will this flashing kit fit the old 308 venting velux

Asked by: dave
No, you will need to purchase the older version EDL 308 Flashing Kit. It is still available. Thank you.
Answered by: VELUXCustomerServiceTeam
Date published: 2015-09-20

How can I put 2 or more 21 in. x 54-7/16 in. Fixed Deck-Mount Skylight with Laminated Low-E3 Glass together?

Hello , I have a really big opening and i was wondering if I can install 2 (21 in. x 54-7/16 in. Fixed Deck-Mount Skylight with Laminated Low-E3 Glass) together and for the third a (21 x 54-7/16 in. Fresh Air Venting Deck-Mount Skylight with Laminated LowE3 Glass).
Asked by: SAP
Hello, You can install deck mounted skylights side by side with comb-flashing. Combi-flashing is a system that flashes the units together. The closest that they can be installed, frame to frame, is 2.5 inches. Thank you
Answered by: VELUXCustomerServiceTeam
Date published: 2015-12-22

I am buying model # FS M02 2005, please verify which kit I need to purchase for this model. Thank you!

Asked by: Havocdirector
If you have a minimum of 3/12 pitch with shingles, you need the EDL M08 Step Flashing Kit. Thank you.
Answered by: VELUXCustomerServiceTeam
Date published: 2015-09-20

why would one buy high-profile deck flashing over low-profile deck flashing?

Asked by: Anonymous
You buy flashing according to your roofing material. If you have a high profile tile then you would order high profile flashing. If you have a lower profile such as shingles, you order the shingle step flashing.
Answered by: VELUXCustomerServiceTeam
Date published: 2015-09-17

I want to purchase a Velux skylight Model FS M-062005RS00, size 31 1/2 x 47 1/4. Will this flashing kit work? If not which one? Shingle roof. Thx

Asked by: Ddiva
Yes, providing your roof pitch is no less than a 3/12, the EDL Deck-mount Step Flashing kit will work. For your size skylights, you must order the EDL M08.
Answered by: VELUXCustomerServiceTeam
Date published: 2015-09-20
  • y_2017, m_2, d_16, h_9CST
  • bvseo_bulk, prod_bvqa, vn_bulk_0.0
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_, sid_202094052, prod, sort_[]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 32ms
  • QUESTIONS, PRODUCT

Customer Reviews

M02/M04/M06/M08 Low-Profile Flashing with Adhesive Underlayment for Deck Mount Skylight is rated 5.0 out of 5 by 4.
Rated 5 out of 5 by from Velux I' m doing roofing for living so I've installed hundreds of skylights. For my own house I choose velux because ( on my opinion) they are best on the market
Date published: 2016-10-11
Rated 5 out of 5 by from worked very good with sky light Added the finished look to the sky light that I also purchased @ Home Depot.
Date published: 2012-07-18
Rated 5 out of 5 by from I installed this skylight with the flashing kit, it was a replacement. Watching the video on utube 1st was helpful ordered from home depot online got everything needed w/n 3 days.
Date published: 2012-07-04
Rated 5 out of 5 by from i bought 2 velux sky lights and they are very nice they we easy to install and they and they look very good
Date published: 2012-07-04
