VELUX

Model # FS D06 2004

Internet # 202844501

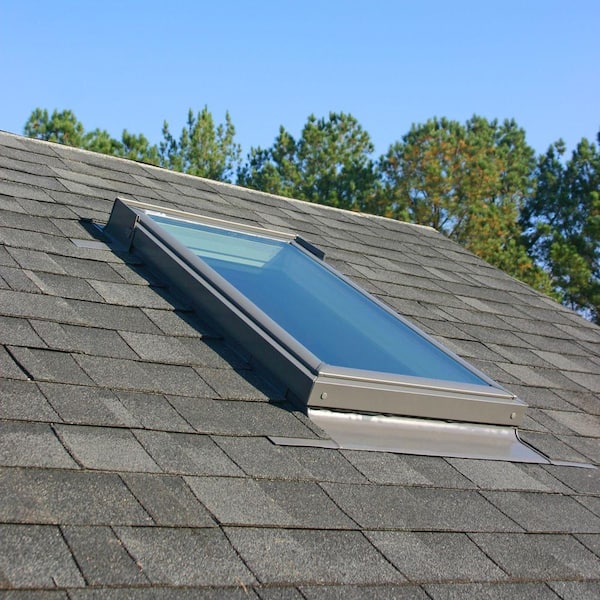

Truss Series 22-1/2 in. x 45-3/4 in. Fixed Deck-Mount Skylight with Laminated Low-E3 Glass

This item has been discontinued.
The Home Depot no longer carries this specific product.
Please select another option below.

$312.44 /each

Loading...

PRODUCT OVERVIEW

Model # FS D06 2004

Internet # 202844501

VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.

  • VELUX D06 and D26 models are sized to fit between roof trusses in a 22-1/2 in. wide rough opening
  • Qualifies for a 10-year no leak installation warranty when installed with VELUX flashing (required, sold separately) on a roof pitch between 14° and 85°
  • EDL flashing is required when installing the skylight on a shingle/shake/slate roof, EDW flashing is required for installation on a tile or high-profile roof, and EDM flashing is required for installation on a metal sheet roof
  • Features laminated clean, quiet & safe glass with a Neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient, and has an extra glass pane for added safety
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for a 30% federal solar tax credit and allows you to control the light
  • Consider upgrading to a solar powered fresh air skylight (model VSS) to bring both natural light and fresh air into your home using only the power of the sun, plus it is eligible for a 30% federal solar tax credit, making it very affordable
  • For D06 models, rough opening dimensions should equal 22-1/2 in. for width and 45-3/4 in. for height

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Daylight area (sq. ft.)
5.95
Product Depth (in.)
4.5
Product Height (in.)
46.25
Product Width (in.)
23.25
Rough Opening Height
45.75 in
Rough Opening Width
22.5 in
Details
Cladding Type
Aluminum
Color Family
Grays
Color Family
Gray
Flashing Included
No
Frame Material
Wood
Glazing type
Laminated glass
Hardware Included
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
85
Minimum roof pitch (degrees)
14
Product Weight (lb.)
53 lb
Returnable
90-Day
Severe weather ready
Yes
Skylight Mounting Type
Deck Mount
Skylight material
Glass
U-Factor
0.44
UV protection (%)
99.9
Warranty / Certifications
Energy Star Qualified
North-Central,Northern,South-Central,Southern

CUSTOMER REVIEWS

Rated 4.9 out of 5 by 20 reviewers.
Rated 5.0 out of 5.0 by Good quality product, clear installation instructions, great value for the money. We had two installed by our roofer. He said that these were the first Velux skylights that he's installed, and that the quality and flashing kits were much improved over the ones he'd done in the past. He has over 25 years experience as a roofer and has installed all types of skylights...he said that these were top-notch and he was pleased with the multi-layered leak protection. From the outside, the skylights have a low profile and they look clean and modern. I have an homeowner's association and they would not have allowed me to use the big white bubble type skylights; these look nicer and they blend in nicely. It rained the day after installation, and several times since then. No leaks and the water just rolls right off. From the inside, I love all the natural light. The light is not hot and there are no ultra-bright spots in the room. I love standing in my kitchen, looking up and watching the clouds roll by. One night, I got up and noticed a bright light in my kitchen. It was the full moon glowing through the skylight. I plan to buy and install the solar shades before summer comes. I love that the Velux skylights have the clips pre-installed, so that all I'll have to do is snap them in. I wanted skylights over my kitchen for more than 10 years. My only regret is that I waited so long. These are gorgeous. December 23, 2011
Rated 5.0 out of 5.0 by Awesome skylight and get the remote blind I got this skylight size but for a flat roof. I also got the programmable remote shade and am so glad I did. This thing works great and you can program hundreds of settings. I have it programmed every hour during the day so it closes little by little to keep the sun off of furniture but still gives you light and fully closed for an hour or two then back open. If you don't like the program or its a cloudy day just hit the remote to open it all the way. The service reps with VELUX are great. I could get through to them every time on the phone anytime I had a question with programming and very helpful. After about 11/2 years I was having a problem with the blind motor and talked to the rep on the phone and they sent me a brand new blind unit. I had my contractor install the first one and didn't want to mess it up so I was willing to pay Velux to install for me. I called them back and said I want a Velux trained guy to install it and the rep came out and installed for free since it was still in the warranty period. The Velux Rep also told me that who ever did the flashing did not do it correctly and should get it fix and showed my why. The only thing was weird with there service call is that you have to give them your CC number and precharge $150 and that worried me a little since they said they would do it for free, but they did not charge me. January 11, 2014
Rated 5.0 out of 5.0 by This is a quality product My skylight is built solid all the way around. The one I purchased fits perfectly between the joists and looks nice from the inside looking out from my ceiling. Although, I had a professional install it, the instructional booklet is very detailed for the DIY type person. January 17, 2012
Rated 5.0 out of 5.0 by Nice skylight! Easy to install! This a great product! If I had one wish: the mounting flange is very small. It is hard to nail in so close to frame. I put a couple small dents in the metal nailing it down. Coupled with the flashing kit I am sure this skylight will never leak. August 4, 2013
Rated 5.0 out of 5.0 by Perfect fit Beautiful after installation. The old one was aluminum and sweated. This one didn't sweat and allowed more light in. Wonderful product. Had tremendous rain storm after installation ........... no leaks April 30, 2013
Rated 4.0 out of 5.0 by Excellent Window Installation was simple after watching the youtube video and following the instructions. The flashing kit was mad for a larger window so there was extra material. Which was fortunate because we needed the extra becasue one strip of the sealing tape got messed up. Folks getting larger windows my want to order an extra roll of the sealing tape. finishing form the inside was a breeze with the slots on the windows for the sheetrock. March 10, 2015
Rated 5.0 out of 5.0 by Great redo One piece custom 8 window ceiling was replaced by 8 fixed panes from velum with solar shades. August 6, 2015
Rated 5.0 out of 5.0 by Beautiful, Bright & Bragged-on!!!! We've had this for about 16 months now - it HAS added beauty, brightness and "bragging rights" to our new home!!! My only regret is that I didn't include several more throughout our home during the initial building!!! I truly believe now that a home cannot have too many "sky lights"!!! My advice would be add one or two to almost every room and enjoy the beauty & brightness in each room you enter!!! They are truly a blessing! June 23, 2015
