0818114002038

VIAIR

Model # 10003

Internet # 202948459

Medium Duty Onboard Air System

$289.95 /box

FREQUENTLY BOUGHT TOGETHER

PRODUCT OVERVIEW

Model # 10003

Internet # 202948459

A VIAIR Medium Duty Onboard Air System provides all of the components needed to install a useful onboard air system that operates up to 150 psi. This system is recommended for tires up to 33 in. in diameter. And provides real time air tank pressure monitoring via an air pressure gauge panel.

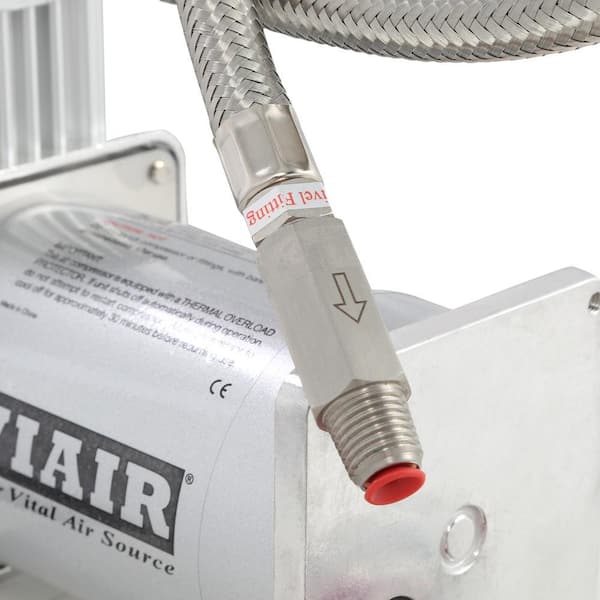

  • A 325C, 1.38 CFM (33% duty cycle) compressor provides up to 150 psi for many uses
  • Automatic shutoff pressure of 150 psi means that you never have to worry about turning the system off at a determined pressure, although for prolonged periods of non-use, you should disable power in case of air leaks
  • All required basic fittings are included to install a fully functional onboard air system capable of having hoses and tools connected directly to the system
  • Maximum amp draw at peak pressure is 21-Amp (12-Volt)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Assembled Depth (in.)
27 in
Assembled Height (in.)
10 in
Assembled Width (in.)
15 in
Cord Length (in.)
Hose length (in.)
18
Product Depth (in.)
14
Product Height (in.)
10
Product Width (in.)
26
Details
15 Gauge Finish Nailer Included
No
16 Gauge Finish Nailer Included
No
18 Gauge Finish Stapler Included
No
Air Delivery SCFM @ 40PSI
1.2
Air Delivery SCFM @ 90PSI
0.9
Amperage (amps)
21
Application Use
Inflation
Brad Nailer Included
No
Compressor Tank Capacity (Gallons)
2.5
Compressor Type
Light Duty
Compressor/Air Tool Features
Tank Pressure Gauge
Decibel Rating (Outdoor)
Not Measured
Horsepower (hp)
Included
Hose
Lubrication Type
Oil Free
Maximum Pressure (psi)
150.0
Portable
No
Power Source
Electric
Product Weight (lb.)
29 lb
Pump Type
Oilless, 12-volt
Returnable
30-Day
Stage Count
Single Stage
Tank Capacity (gallons)
1.0
Tank Material
Steel
Tank Pressure Gauge
Yes
Tank Style
Truck Mount
Tools Product Type
Air Compressor Kit
Twin Stack Tank Configuration
No
Voltage (volts)
12
Warranty / Certifications
Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
One-year manufacturer defect warranty
