Model # 00200W1W1FR20

Internet #202515256

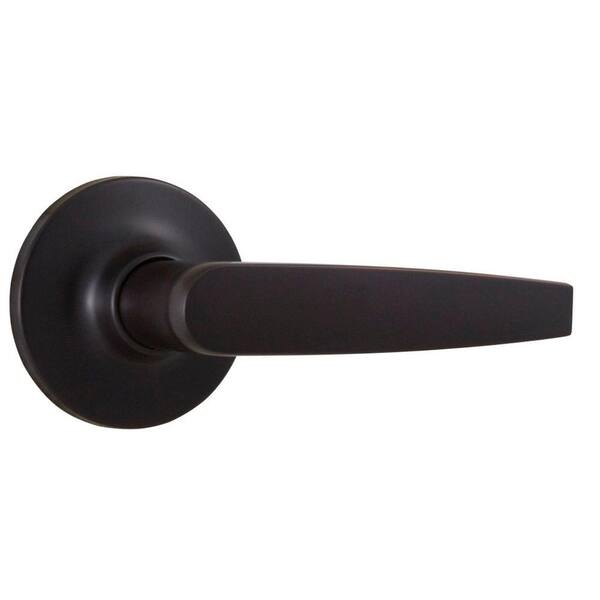

Weslock Reliant Oil-Rubbed Bronze Passage Bristol Lever-DISCONTINUED
0048899046211

Discontinued Weslock

Reliant Oil-Rubbed Bronze Passage Bristol Lever-DISCONTINUED

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

An affordable alternative to Weslock's Grade 2 Traditionale and Essential collections, the Reliant offers the same styles and finishes. Special features include a Grade 3 adjustable latch for 2-3/8 and 2-3/4 in. backsets and split spindles for ease of installation. This passage function is ideal for hall or closet doors where no locking is required.
  • Exceeds ANSI grade 3 lock standards
  • Half moon spindle tubular design
  • Adjustable latches 2-3/8 in. to 2-3/4 in. with radius faceplates and strikes
  • Adjusts to door thickness from 1-3/8 in. to 2 in.
  • Knob/lever fits door prepared with 2-18/ in. cross hole and 1 in. edge hole

Product Overview

An affordable alternative to Weslock's Grade 2 Traditionale and Essential collections, the Reliant offers the same styles and finishes. Special features include a Grade 3 adjustable latch for 2-3/8 and 2-3/4 in. backsets and split spindles for ease of installation. This passage function is ideal for hall or closet doors where no locking is required.

  • Exceeds ANSI grade 3 lock standards
  • Half moon spindle tubular design
  • Adjustable latches 2-3/8 in. to 2-3/4 in. with radius faceplates and strikes
  • Adjusts to door thickness from 1-3/8 in. to 2 in.
  • Knob/lever fits door prepared with 2-18/ in. cross hole and 1 in. edge hole

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Assembled Depth (in.)
2.375 in
Assembled Height (in.)
2.625 in
Assembled Width (in.)
2.625 in
Cross bore diameter (in.)
2.125
Lever grip length (in.)
4.5
Lever housing height (in.)
3.1875
Lever housing width (in.)
2.5
Maximum door thickness (in.)
2.0
Projection (in.)
2.375
Strike height (in.)
2.25
Strike width (in.)
1.75
Throw length (in.)
0.5

Details

Application Type
Passage
Commercial/Residential
Residential
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Levers
Finish
Oil Rubbed Bronze
Hardware Finish Family
Bronze
Hardware Included
Yes
Interior/Exterior
Interior
Lever material
Zinc
Lever style
Straight
Lock Type
Unkeyed
Material
Steel
Minimum door thickness (in.)
1.375
Product Weight (lb.)
1.25lb
Returnable
90-Day
Security/ANSI Grade
ANSI Grade III (Good)
Strike
Full round

Warranty / Certifications

Certifications and Listings
ADA Compliant
Manufacturer Warranty
Limited 10 Year Mechanical and Limited 5 Year Finish

Specifications

Dimensions

Assembled Depth (in.)
2.375 in
Assembled Height (in.)
2.625 in
Assembled Width (in.)
2.625 in
Cross bore diameter (in.)
2.125
Lever grip length (in.)
4.5
Lever housing height (in.)
3.1875
Lever housing width (in.)
2.5
Maximum door thickness (in.)
2.0
Projection (in.)
2.375
Strike height (in.)
2.25
Strike width (in.)
1.75
Throw length (in.)
0.5

Details

Application Type
Passage
Commercial/Residential
Residential
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Levers
Finish
Oil Rubbed Bronze
Hardware Finish Family
Bronze
Hardware Included
Yes
Interior/Exterior
Interior
Lever material
Zinc
Lever style
Straight
Lock Type
Unkeyed
Material
Steel
Minimum door thickness (in.)
1.375
Product Weight (lb.)
1.25lb
Returnable
90-Day
Security/ANSI Grade
ANSI Grade III (Good)
Strike
Full round

Warranty / Certifications

Certifications and Listings
ADA Compliant
Manufacturer Warranty
Limited 10 Year Mechanical and Limited 5 Year Finish

More Products With These Features

Search

Questions & Answers

is there a R or L model, or does one work for either orientation?

is there a R or L model, or does one work for either orientation?
Asked by: Mark
The Bristol lever is reversible on passage, privacy and keylock functions. Therefore, the specific lock you are looking at, which is a passage function, is for both, left and right hand doors.
Answered by: Weslock Product Manager
Date published: 2017-01-07
  • y_2017, m_9, d_23, h_19CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_202515256, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 124ms
  • QUESTIONS, PRODUCT

Customer Reviews

Reliant Oil-Rubbed Bronze Passage Bristol Lever-DISCONTINUED is rated 1.0 out of 5 by 2.
Rated 1 out of 5 by from Very poor quality!!! Do not buy this product !!! The handle broke after a few weeks of use. Ordered the same product online and after getting the second set the handle broke in a few weeks.
Date published: 2017-05-30
Rated 1 out of 5 by from AVOID It broke after 2 months of limited use. The outer handle fell off. Spend a little more and buy a better brand.
Date published: 2017-07-13
