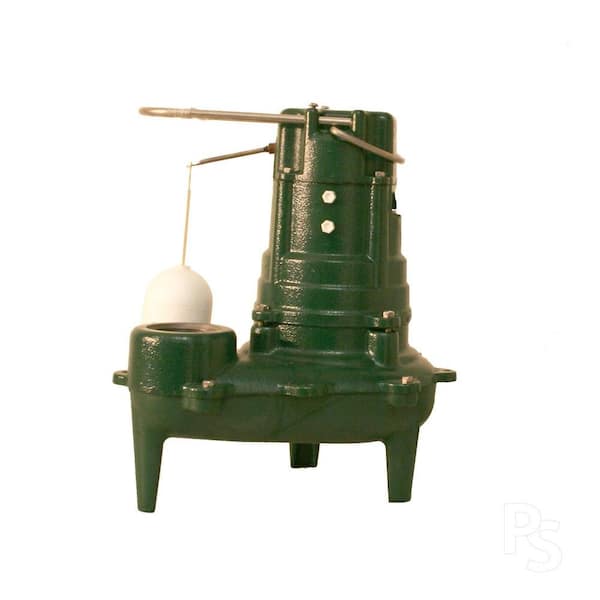

Zoeller M267 1/2 HP Auto Eject with Built-in Float Switch Pump-M267 - The Home Depot


Model # M267

Internet # 204073037

Store SKU # 1000010889

M267 1/2 HP Auto Eject with Built-in Float Switch Pump

Zoeller M267 1/2 HP Auto Eject with Built-in Float Switch Pump

This item has been discontinued.
The Home Depot no longer carries this specific product.



Model # M267

Internet # 204073037

Store SKU # 1000010889

This submersible pump is used for sewage and dewatering. The pump can pass solids measuring two inches in spherical solids. M267 is an automatic pump designed for residential, commercial, or industrial use.

  • Corrosion-resistant, powder coated epoxy finish
  • Float operated, submersible (NEMA 6) 2-pole mechanical switch
  • Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
  • Cast iron base on models 267 and 268
  • 2 in. female and 3 in. NPT male discharge

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.


Assembled Depth (in.)  11.219 in  Assembled Height (in.)  14.031 in
Assembled Width (in.)  13.063 in  Maximum Pumping Height (ft.)  21.5
Product Depth (in.)  11.219  Switch-Off Height (in.)
Switch-On Height (in.)  12
Amperage (amps)  10.4  Battery Back-Up  No
Cord Length (ft.)  10  Discharge Flow @ 0 ft. (gallons/hour)  128
Discharge Flow @ 10 ft. (gallons/hour)  89  Discharge Flow @ 15 ft. (gallons/hour)  50
Horsepower (hp)  1/2 hp  Housing Material  Cast-Iron
Maximum Working Temperature (F)  130  Minimum working temperature (F)  35
Power Type Required  AC  Product Weight (lb.)  48 lb
Pump Switch Type  Switchless  Returnable  90-Day
Self-Priming  No  Submersible  Yes
Sump Pump Outlet Diameter Type  1-1/2 FPT  Voltage (volts)  115
Warranty / Certifications
Manufacturer Warranty  limited one-year warranty


Rated 4.3 out of 5 by 4 reviewers.
Rated 5.0 out of 5.0 by Excellent entry level commercial pump I looked everywhere for a pump to fit the strict requirements my plumber requested. This pump was the only one that fit the bill at a very affordable price. We installed it for a basement remodel. We were both shocked to find how quiet and fast this pump worked. My plumber was so impressed. He stated this was at the level of commercial pumps he had installed in the past. June 12, 2013
Rated 5.0 out of 5.0 by Long Lasting - GREAT quality Had this pump for 11 years and no problems - always dependable. Just stopped working after all these years of hard work and we replaced with the same model to get 11 more years of dependable service. June 18, 2013
Rated 3.0 out of 5.0 by Workhorse pump but the switches go back fairly often I've had three of these pumps in two houses and the switches burn out much too fast. In the last house, I replaced the second pump [after the first one completely failed and after several switches] with a simple pedestal model where the motor stays dry. That worked for over a decade without a switch problem. The Zoellner in our new home was installed in 2011 and the switch has already failed. Zoellner must be aware of the problem because there is plenty written about this style pump on forums. The product is basically unchanged since the 80s... maybe earlier. April 25, 2013
Rated 4.0 out of 5.0 by This was an exact replacement Replacement for the same model which lasted 13 years with moderate use in a sewage ejector application. July 23, 2013
