Project Guide

How to Install a Tile Backsplash

Measure the Wall
A wall behind a kitchen counter.

When determining how much tile and installation materials you need, don't guesstimate, calculate. Know exactly how much you need with our project calculators.

  • Measure your wall to determine the amount of tile you need. If you only have one section to cover, multiply the width and height of the wall to get a square footage. The square footage determines how much tile is necessary for your tile backsplash installation. Proper measurements will help keep tile installation costs down.
  • Include an additional 10 percent of tile to fill any small gaps or use as replacements for damaged pieces. More calculation is required if you have walls with disproportionate sections, like the one shown in this guide.
  • You have four separate areas to measure. Label section “a” as the space on the left side, between the base of the cabinetry and countertop. Space “b” is the midsection of the wall. Space “c” is the space on the right side, between the base of the cabinetry and countertop. Space “d” sits under the window.
  • Multiply the width and height of each section, then add the sums of each to get the total square footage of tile needed to complete the project. Remember to include 10 percent of the sum for spare pieces, and make sure you have enough mortar, mastic and grout.

Tip: Be aware of outlets and switches when tiling, making sure to take them into account.

Prep the Workspace
A removing an object from a kitchen counter.
  • Remove all appliances and cookware from your countertop. You may need to move the stove slightly away from the wall so you can easily place tile behind it. Disconnect the stove for added safety.
  • Place a layer of cardboard or heavy-duty craft paper over your countertop to protect it from debris. Tape off the existing countertop or backsplash and the underside of the cabinets to protect those surfaces.
  • Shut off power to any nearby electrical outlets or light switches, then remove the cover plates.
Prep the Wall
A man removing an outlet cover.
  • Patch any holes with spackling compound and sand the area lightly to a smooth surface.
  • Use mild soap and water to clean your walls and allow the surface to dry. Check the wall behind the stove for any oil or grease stains. These should be cleaned with a degreaser or primer if you have tough stains.
  • Painted walls can be wiped down with tri-sodium phosphate and sanded gently. Glossy surfaces are typically sanded and de-glossed. Wipe the wall with a soft cloth or damp sponge to ensure a clean, dry surface.
Pre-Lay the Tile
A man laying tile onto a wall.
  • Place the tile across the wall and mark your starting and end points. Your starting point depends on the most viewable area of the wall.
  • Work your way outward and upward from there. A straight edge or level can help you keep the tile even.
  • You may need to cut tiles to properly fill your backsplash area. Use a tile cutter for porcelain or ceramic tile, and a tile nipper for any circular incisions. Use a wet saw if you are cutting natural stone to prevent chipping or breaking.
Prepare the Mortar

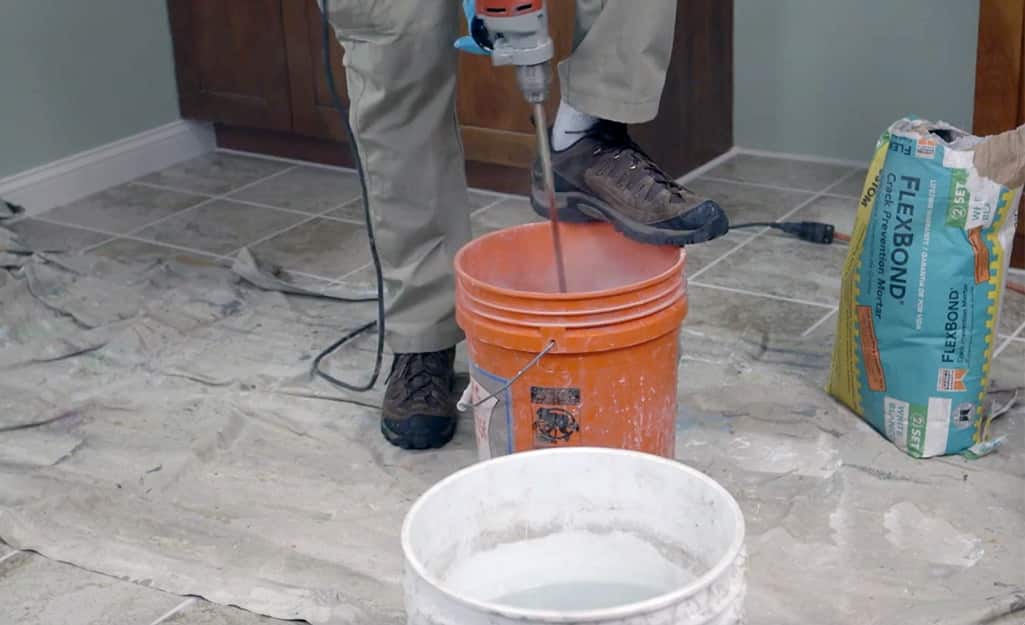

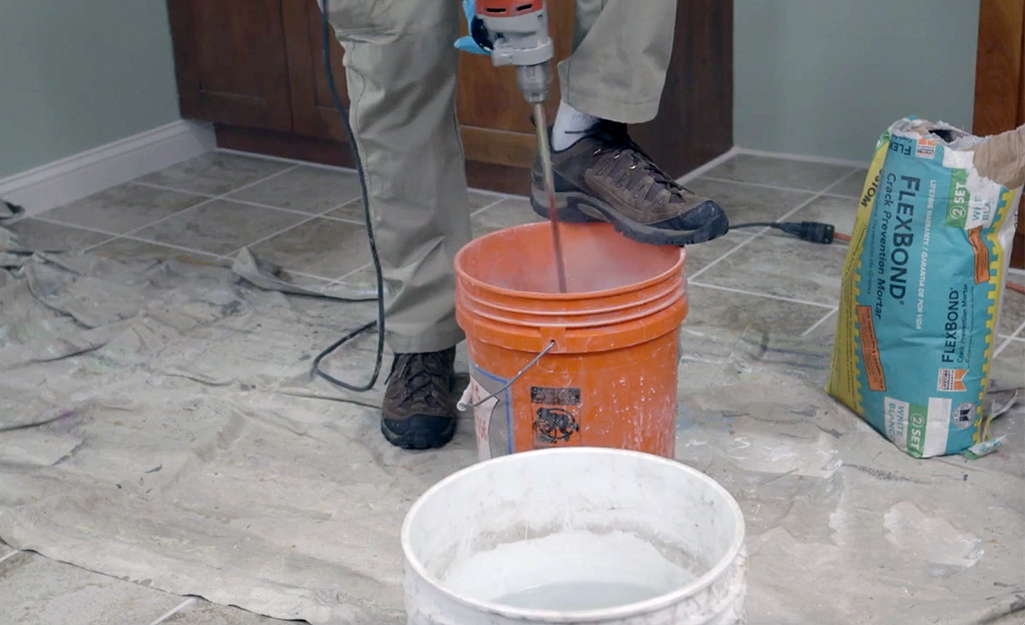

A person pouring water into an orange bucket.
  • To prepare powdered thin-set mortar for natural stone and mosaic tile, fill your bucket with water in the amount listed on the package. Gradually add the thin-set powder, mixing it thoroughly.
  • Let the mixture stand for 5 to 10 minutes, then mix it again without adding more water.
  • When you’re finished mixing, you’ll have a limited time to use it. Flex-type mortar can generally be used up to 4 hours after it’s been mixed.
  • If you’re looking to save time use a tile setting mat. Tile setting mats adhere to the wall so that you can tile immediately and move on to grouting.
Apply the Mortar

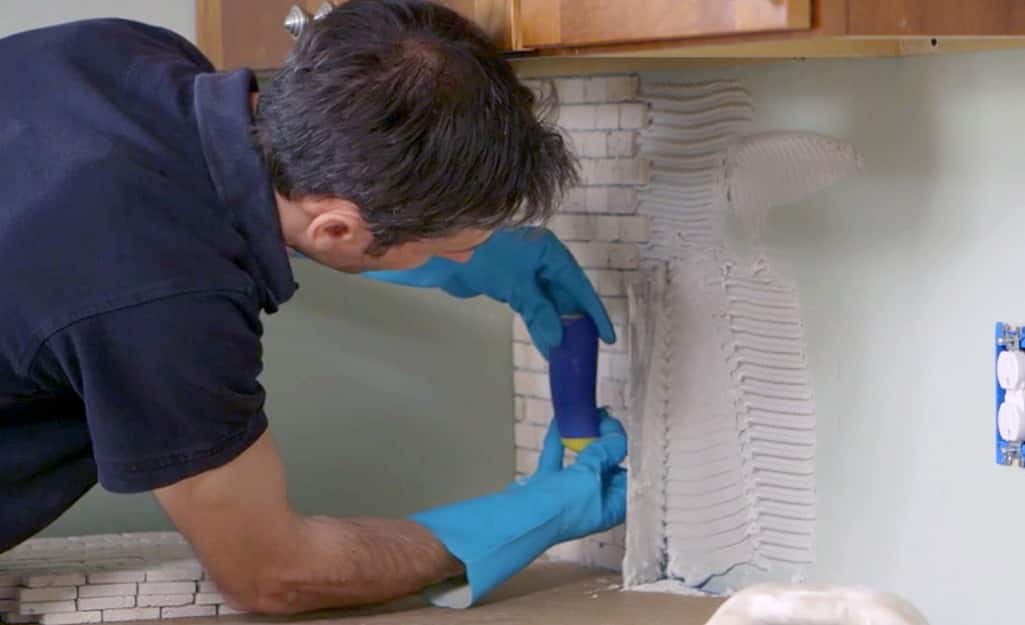

A man laying tile onto a wall.
  • Begin with a 2-foot section and apply the mortar to the wall, spreading a thin layer of the mortar with the flat side of the trowel. Press at a 45-degree angle. This will ensure the mortar fully adheres to the wall.
  • Using the notched edge, add a little extra mortar onto the trowel and comb even ridges in one direction. Make sure your notch trowel corresponds with the tile you’re installing. Natural stone tile typically works well with a notch trowel that is 1/4-x1/4-inch in size.

Tip: Work in small sections to prevent the mortar from drying or forming a skin as you apply the tile. Clean any excess mortar off the face of the tile with a sponge.

Lay the Tile
A man laying tile onto a wall.
  • Place the mosaic sheets along the wall. Add tile spacers for help keeping the tile pieces lined up. Follow the lines you made when the tiles were dry fit to the wall.
  • Slightly rock the sheet up and down, perpendicular to the trowel lines, to collapse the ridges and help the tile settle into place. Flatten the tile with a grout float if necessary.
  • If the space between the top row of tiles and cabinetry is greater than an inch, cut your extra tile pieces to fit the space. If the gap is smaller, consider installing a piece of moulding to hide it.
Dry and Pre-Seal the Tile
A kitchen wall with newly installed backsplash tile.
  • Allow the mortar and tile to dry completely following the manufacturer’s recommendations. This usually takes 24 hours, but it depends on the mortar used and the temperature of your home.
  • Use pre-sealer for natural stone at least three hours before you apply the grout. Pre-sealer helps protect the stone from staining.
Clean the Tile and Prepare the Grout
A man cleaning a tile backsplash.
  • We used a poly-blend sanded grout, which is a cement-based product. A sanded grout is great for joints 1/8 inch or greater. For grout joints smaller than 1/8 inch, use poly-blend non-sanded.
  • Wipe the tiles clean with water and remove all spacers before you apply poly-blend sanded grout to natural stone mosaic tile. Carefully follow the preparation details on the package.
  • Fill a bucket with the appropriate amount of water. Then, gradually add the grout powder and mix thoroughly.
  • Let the mixture stand for 5 to 10 minutes, then re-mix it without additional water. Periodically re-mix the grout to maintain the consistency.
Grout the Tile
A man applying grout to a tile backsplash.
  • Once the grout is mixed, you’ll have a limited time to use it. Generally, poly-blend can be used up to two hours after it is mixed. Work in sections, so that you can complete an area within 30 minutes.
  • Apply the grout with the grout float at a 45-degree angle. Work diagonally. Wipe off any excess grout with the grout float held at a 90-degree angle.
  • Using a damp sponge, remove the grout from the face of the tiles in a circular motion and shape the grout joints fully. Rinse the sponge in clean water frequently.
  • Repeat this process several times. Limit the amount of water you use to avoid washing out the grout joints.
  • After about 3 hours, you can remove the last haze of grout. Use a dampened cheesecloth or sponge to wipe down the face of the tiles.
Seal the Tile
A man cleaning tile backsplash.
  • Once the grout is fully dry, usually 24 hours to 3 days later, apply grout sealant to protect your backsplash from staining. After the sealer is dry, you can add a small amount of latex caulk to the base of your backsplash where it rests against your countertop.
  • Replace your appliances and cookware, and restore the power to your electrical outlets.
  • To maintain your backsplash, wipe it down occasionally with a non-acidic kitchen or glass cleaner.
