Project Guide

How to Make a Bookshelf Planter

1
MEASURE
Measure

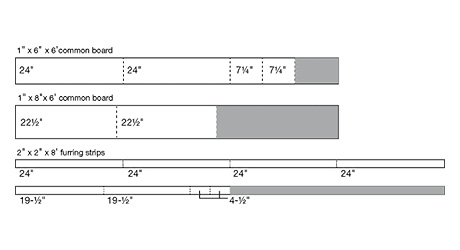

Measure and mark cuts on the lumber according to the cut list below.

2
MARK
REPLACE THIS TEXT

1- x 6-inch common board

  • Two 24-inch sections
  • Two 7 1/4-inch sections


1- x 8-inch x 6-foot common board

  • Two 22 1/2-inch sections


2- x 2-inch x 8-foot furring strips

  • Four 24-inch sections
  • Two 19 1/2-inch sections
  • Two 4 1/2-inch sections
3
CUT
Cut
  • Use a circular saw to make the straight cuts, following your marks across the board.
  • Cut a 1 1/2-inch square out of each corner of one of your 22 1/2-inch sections. This will become your bottom shelf.


Tip: Use a sanding block to smooth any rough edges.

4
PAINT
Paint

Stain or paint the boards if desired. Allow each piece to fully dry before assembling.

5
ASSEMBLE THE LEGS
Assemble the Legs

Pre-drill and screw each 24-inch leg into each corner of the 22 1/2-inch section, this will become the bottom of the planter box.

6
FRAME THE BASE
Frame the Base
  • Place the two 19 1/2-inch sections two inches up from the bottom of the legs.
  • Pre-drill and attach with screws through the legs.
  • Place the two 4 1/4-inch sections two inches up from the bottom of the legs.
  • Pre-drill and attach with screws through the legs.
  • This completes the frame.
7
BUILD THE WALLS
Build the Walls
  • Place both 7 1/4-inch side walls against the short side of the assembly so that they hang ¼-inch below the bottom of the planter box.
  • Pre-drill and secure with wood screws by screwing them into the side of the base.
  • Place both remaining walls on front and back of side.
  • Pre-drill and secure with wood screws by screwing them into the sides of the walls.
8
POSITION THE BOTTOM SHELF
Position the Bottom Shelf

 Place the last shelf directly atop the bottom frame.
