How to Wire an Above-ground Pool Pump

Item(s) have been added to cart.

1
Dig a Trench
a man using a shovel to dig a trench
  • Working with electricity around a pool can be dangerous. Hiring a licensed electrician is recommended.
  • Before doing any electrical work, ensure the power is turned off at the circuit breaker.
  • Dig a 24-inch deep trench for the underground wire.
  • Drill a hole to the inside of the house where the electrical panel is located. Use an extension if needed to get through the wall.
2
Connect the Wiring

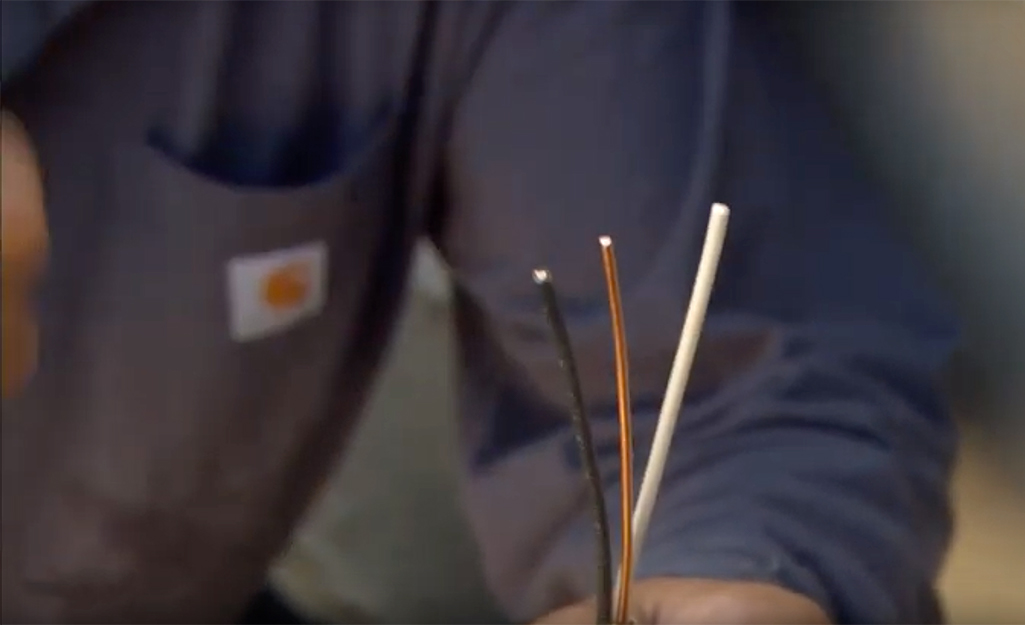

a close up of three exposed wires
  • Fish two 12-2 nonmetallic cables through the hole into the basement, then attach them to a plastic electrical box.
  • Run conduit from the box into the trench. Continue the conduit into the trench and then into the post.
  • Feed three individual 12-gauge wires through the conduit into the post.
3
Connect the Pool Pump
wires being connected to a pool pump
  • Mount the timer to the wall.
  • Wire the twist-lock receptacle.
  • Plug in the pool pump and cover it with a weatherproof cover.
  • With the main service off to the house, wire in GFCI circuit breakers to the electrical panel.
  • Connect an 8-gauge wire to the metal posts of the pool, the pump, and the metal plate on the skimmer and then wire that to the pump to bond the entire pool.
