Internet #202270502

Model #U094LFA

Store SKU #323172

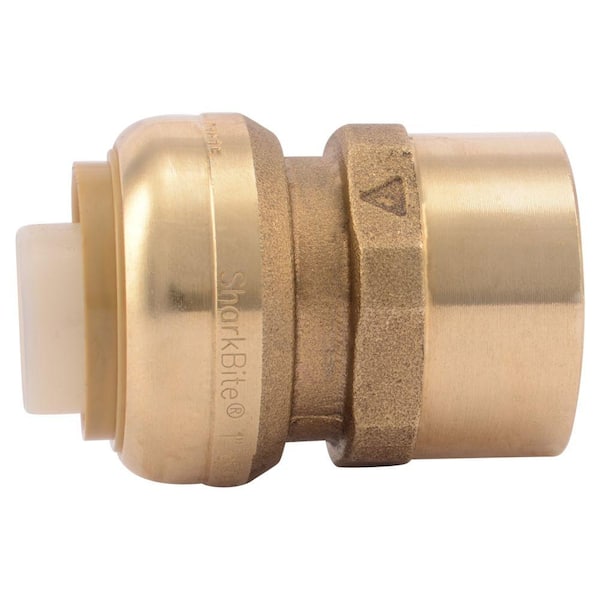

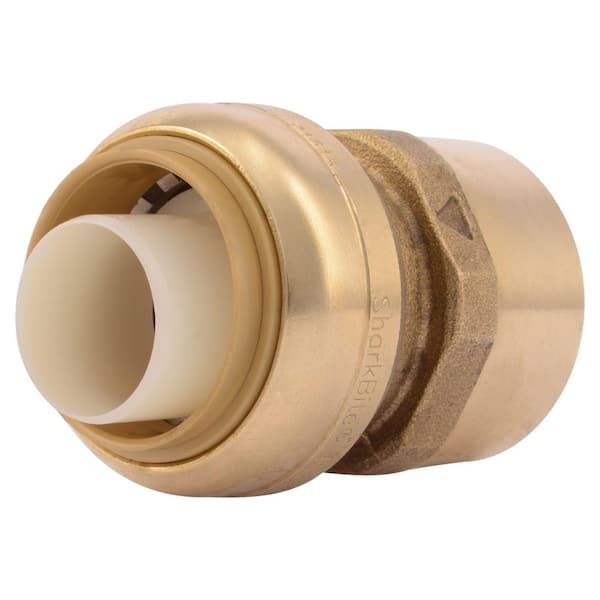

1 in. Push-to-Connect x FIP Brass Adapter Fitting

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Push to Connect system, quick and easy installation in seconds
  • See More Details
$1230

Frequently Bought Together

+
+
Price:
$1230

Product Overview

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

No Tools Required

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Versatility

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap.

Easy Fast Install

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap. Allows fot the ability to work in tight spaces without having to make structural changes.

Man working with SB

Approved for Underground

Approved for burial applications (wrapping required when burying underground)

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Error-Proof

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

Wet or Dry Applications

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

SharkBite owns the entire manufacturing process, from raw materials to finished product.

Quality you can trust

SharkBite owns the entire manufacturing process, from raw materials to finished product

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe.

Versatile Fittings Collection

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe

Listed by IAPMO and design certified.

Certified

Listed by IAPMO and design certified and listed to ASSE 1061, CSA B125.3, NSF 372, NSF/ANSI 61, ASTM E84, CAN/ULC S102.2, ASTM, E119, CAN/ULC S101,UL289

Rated to 200°F and 200 PSI

Working Temperature and Pressure

Rated to 200°F and 200 PSI

Made of durable DZR brass

Material

Made of durable DZR brass

Approved for behind-the-wall applications

Behind the Wall

Approved for behind-the-wall applications

25 Year System Warranty

Reliability

25 Year System Warranty

The 1 in. SharkBite Push-to-Connect x 1 in. Female Pipe Thread Adapter allows you to make a connection to 1 in. pipe using a push-fit connection and then gives you a 1 in. Female NPT Adapter on the opposite end. SharkBite fittings are the easiest way to join Copper, PE-RT, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
  • California residents
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC, or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions, or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200F and 200 psi
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

1/2 in. Push-to-Connect x 3/4 in. FIP Brass Adapter Fitting
current product
1 in. Push-to-Connect x FIP Brass Adapter Fitting
1 in. Push-to-Connect Brass Coupling Fitting1 in. Push-to-Connect Brass End Stop Fitting
BrandSharkBite SharkBiteSharkBite
Name1/2 in. Push-to-Connect x 3/4 in. FIP Brass Adapter Fitting1 in. Push-to-Connect x FIP Brass Adapter Fitting1 in. Push-to-Connect Brass Coupling Fitting1 in. Push-to-Connect Brass End Stop Fitting
Price
$691
$1230
$1313
$1337
Ratings
(89)
(414)
(1343)
(531)
Fitting 1 size1/2"1"1"1"
Fitting or Connector TypeAdapterAdapterCouplingCap
ConnectivityPush FitPush FitPush FitPush Fit
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
FeaturesRemovable,ThreadedRemovableRemovableRemovable
Pack Size1111
MaterialBrassBrassBrassBrass
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
1" x 1"
Fitting 1 size
1"
Fitting 2 size
1"
Product Length (in.)
1.675

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
FIP
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Adapter
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
200
Maximum Working Temperature (F)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.33
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

24Questions40Answers

Will the female FIP fit a 1/2" NPSM thread. I already tried but it was very difficult to fully ti...

Asked by Jh September 8, 2020
3
Answers

I do not believe these are made for threaded pipe since threads would prevent seals from engaging. Forcing anything is a recipe for many leaks and worse. Use the right product.

mini-tank ES4, electric water heater, I used this connector but FIPT and FNPT are not listed for this heater

Asked by Maddie August 28, 2020
2
Answers

Even though it it's a straight thread, with a little finesse, it will thread on.

If I want to connect to a 3/4" garden hose bib and another end to 1/2" PEX, what would be the pro...

Asked by mt July 31, 2020
1
Answer

If I'm understanding you right, you will need a 1/2 mip x hose adapter

I am looking for a fitting that screws to a hose bib and connects a 1/2" PEX tube. Is this it? If...

Asked by mt July 30, 2020
5
Answers

Hello, We do not currently offer any fittings that will connect to garden hose thread. It will be necessary to find a FNPT (female national pipe tapered) to GHT (garden hose thread) adapter to transition thread types. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Can this be used on straight thread Male connection

Asked by Stacy May 28, 2020
3
Answers

Yes

I see a few reviews saying that these failed after several years. Is there anyone who has used th...

Asked by BrianH March 11, 2020
5
Answers

Hello, SharkBite push-to-connect fittings feature a 25-year warranty when installed according to the installation instructions in the link below. These fittings are very reliable but care must be taken to make sure the pipe or tubing being used is in good condition. Any foreign material or deep scratches on the outside of the pipe/tubing could prevent the fitting's O-ring from making a watertight seal. It is also very important to make sure the pipe/tubing is inserted to the full insertion depth and that copper pipe is properly deburred to prevent damage to the fitting's O-ring. If you have additional questions please don't hesitate to reach out to our technical service department at 877-700-4242. https://www.sharkbite.com/sites/g/files/rgohfh321/files/2019-12/sharkbite-installation-guide-2019.pdf Best Regards,

Is the size specified ID or OD?

Asked by Mike December 5, 2019
4
Answers

Outside diameter

How long are the connectors for this product page? Images show it to be the same as Model # U072L...

Asked by Blueeyedbombshell July 16, 2019
3
Answers

They are the same product as the single version. They are a little over an inch long, close to 1 1/2" long.

This one appears to be a female copper sweat on one end (which is what I want). I have not found ...

Asked by David March 15, 2019
10
Answers

Honestly, I've yet to see a sweat sharkbite fitting, sorry

I JUST PURCHASED A HOME IN CALIFORNIA AND WANT TO CONFIRM THESE ARE UP TO CODE WHEN IT COMES TIME...

Asked by JD November 21, 2018
4
Answers

Yes, there are up to code unless CA. Has some really weird code that you couldn't use copper.
