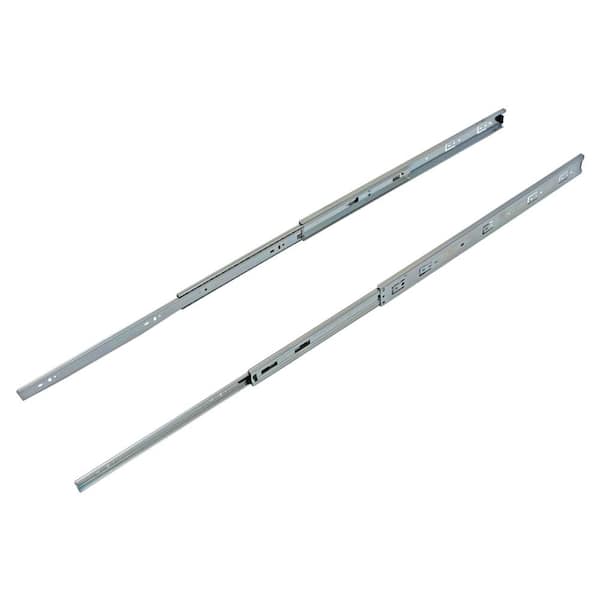

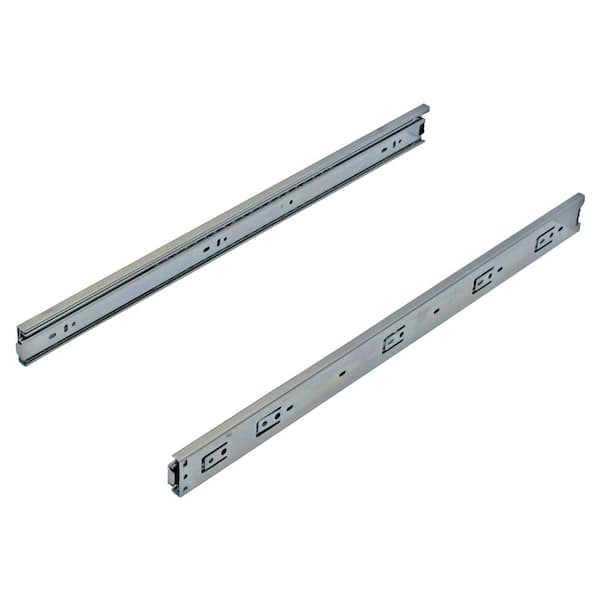

10 in. Full Extension Ball Bearing Side Mount Drawer Slide 1-Pair (2 Pieces)

  • Durable steel slide holds up to 100 lbs.
  • Smooth ball-bearing operation for optimal support
  • Full extension slide great for kitchen and furniture applications
  • View More Details
How to Get It

Frequently Bought Together

+
+
Price:

Product Overview

The 1150 series full extension drawer slide features a smooth ball bearing operation with a clear zinc chromate finish. The 1150 series slide is perfect for Kitchen, Bath, Furniture upgrades and many other useful applications. The 1150 series slides come in a range of length of sizes from 10 in. to 24 in.
  • 100 lbs. load capacity per pair
  • Full extension slide
  • Exceeds ANSI/BIFMA tests
  • 1/2 in. side clearance per side
  • Actual slide spec dimension 250 mm (9-13/16 in.) L x 45.6 mm (1-3/4 in) H
  • 32 mm hole pattern metric slide
  • Steel ball bearings
  • Non-handed
  • Easy lever disconnect for removing drawer box
  • Side mount only-not recommended for flat mount
  • Hardware fasteners not included due to application capacity and variances
  • Fasteners for wood applications use the following: truss head screw # 8 x length needed
  • Optional back socket for face-frame applications use model number 391170
  • Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
  • Types Of Cabinet Hinges

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Maximum Expandable Length (in.)10Product Height (in.)1.75
Product Width (in.)0.5Slide Length (In.)10 in

Details

Builders Hardware Product TypeDrawer SlidesDrawer Slide TypeBall Bearing
FeaturesNo Additional FeaturesFinish FamilyChrome
Hardware Color FamilyChromeMaterialSteel
Mount TypeSide MountPackage Quantity2
Returnable90-DaySlide SystemFull Extension
Weight load per set (lb.)100

Warranty / Certifications

Manufacturer WarrantyOne Year

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.7
    out of 135 reviews
  • 96%recommend this product
Filter by:
Showing 1-10 of 135 reviews
Had to Drill Holes to Install Hardware
My 18 yr old 34" TV died; so, I bought a new 40" TV to replace it; but, the new TV won't fit in the old entertainment center. I used these drawer slides to mount a 1"X12" board in the old TV hole and I bolted a TV Mount to it: Mount IT part # MI-4222; and, hung the new TV in its place. It's all secure now and makes it easy to access the cables in the back of the TV; so, that's cool. What bugs me about these slides is in many places, to install mounting hardware, I had to create or hog out access holes, with a drill & a Dremel, to mount the screws into position. Of course, these metal shavings or saw dust got into the bearings; so, these slides don't move as freely as when they were new. Please let the manufacturer know to put in more access holes and larger access holes. Take a look at these photos.
by
    • Recommended
    Work great and very affordable
    I used these to make a slide out for my DeWalt Miter saw, the saw is about 60 lb and sits on a shelf behind my table saw. With these now I can slide out my saw far enough to lift it off or put it back away without hurting my back. Now I don't have to go through the hassle every time of moving my table saw just to take this off. Now I want to get another pair so I can slide out my planer.
    by
      • Recommended
      Ok budget slides, you get what you pay for.
      I have bought ones that cost about $13/set and they were good. I read about these and thought I’d save about $5 per set for a cart I made for my table saw. I read these weren’t as smooth as some and had no hardware or instructions. So I knew what I was getting. They install like the other slides. I would buy them again for projects which didn’t require a refined feel. For something inside the house or if I cared more about how they felt, I will probably go back to the $13 slides. As with any cabinet installation for drawers, you must be extremely accurate in your measurements to prevent binding or other issues. I ended up using 1 inch blocks along side the drawers inside the cabinet to ensure the correct width for the slides.
      by
        • Recommended
        1 found this review helpful
        Looks identical to the name brand. Time will tell.
        Looks identical to the name brand. Time will tell.
        by
        • Verified Purchase
        • Recommended
        I used eight of these slides to build a spice rack for my kitchen. Worked great! Very sturdy, and...
        I used eight of these slides to build a spice rack for my kitchen. Worked great! Very sturdy, and easy to install. I couldn't find the hole dimensions or locations, but a tape measure made quick work of integrating these slides into my design. 5/5 Would buy again!
        by
          • Recommended
          I used these drawer slides in a custom cabinet I built to house music gear in my office/studio. ...
          I used these drawer slides in a custom cabinet I built to house music gear in my office/studio. I'm building another of these cabinets for a customer and am ordering these slides again. It's a no-brainer. These drawer slides are very well made. They are comparable to units costing two to three times as much. Installation was a breeze and they function perfectly.
          by
            • Recommended
            6 found this review helpful
            by
              Performed better than any other slides I've ever used...
              Performed better than any other slides I've ever used
              by
                by
                  Priced right, work great
                  Get value. Thanks Home Depot for offering these outside of the big internet stores.
                  by
                  • Verified Purchase
                  • Recommended
                  Showing 1-10 of 135 reviews
