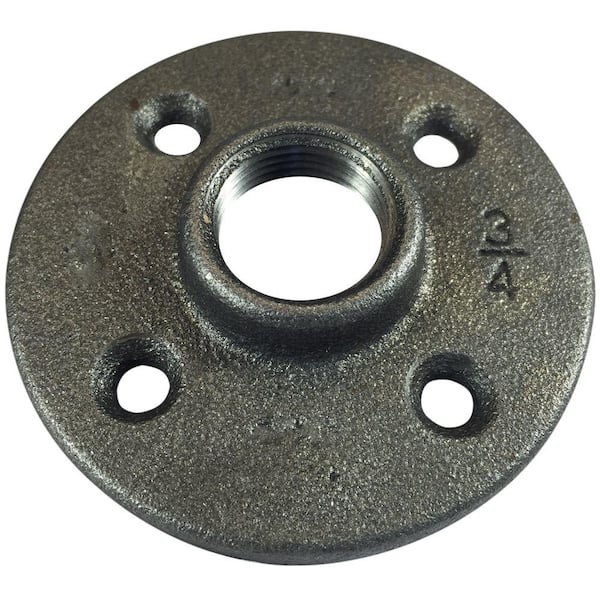

- Floor flange for securing pipe to the floor or a wall
- Female threaded connection to easily attach piping
- Install with 3/8 in. countersunk screws (sold separately)
- See More Details
Frequently Bought Together
Product Overview
- 3/4 in. female pipe threads connect to 3/4 in. male pipe threads
- Hydrostatic tested
- Easily mounts to the wall or floor
- Perfect for DIY home projects
- Not for use with potable water
- Rated at 150psi
- Use for above ground gas, LP and air applications
Info & Guides
Product Overview
- Floor flange for securing pipe to the floor or a wall
- Female threaded connection to easily attach piping
- Install with 3/8 in. countersunk screws (sold separately)
Compare Similar Black Pipe Fittings
 |  | |  | |
| Brand | LDR Industries | LDR Industries | ||
| Name | 1 in. Black Iron Floor Flange | 3/4 in. Black Iron 90° FPT x FPT Elbow (2-Pack) | 3/4 in. FPT Black Iron FPT Floor Flange | 1-1/4 in. Black Iron Floor Flange |
| Price | $356 | $456 | $598 | $898 |
| Ratings | (52) | (9) | (96) | (51) |
| Fitting 1 size | 1" | 3/4" | 3/4" | 1-1/4" |
| Fitting or Connector Type | Flange | Elbow | Flange | Flange |
| Application | Air,Furniture Grade,Natural Gas,Propane | Air,Furniture Grade,Natural Gas,Propane | Natural Gas,Propane | Air,Furniture Grade,Natural Gas,Propane |
| Pack Size | 1 | 2 | 1 | 1 |
| Connectivity | Threaded | Threaded | Threaded | Threaded |
| Features | Threaded | Threaded | Threaded | Threaded |
| Material | Iron | Iron | Iron | Iron |
| Pipe or Fitting Product Type | Fittings & Connectors | Fittings & Connectors | Fittings & Connectors | Fittings & Connectors |
| Bend Degree | 90 Degree | |||
| View Product | View Product | View Product | View Product |
Compare Similar Black Pipe Fittings
| | | | |
| Brand | LDR Industries | LDR Industries | ||
| Name | 1 in. Black Iron Floor Flange | 3/4 in. Black Iron 90° FPT x FPT Elbow (2-Pack) | 3/4 in. FPT Black Iron FPT Floor Flange | 1-1/4 in. Black Iron Floor Flange |
| Price | $356 | $456 | $598 | $898 |
| Ratings | (52) | (9) | (96) | (51) |
| Fitting 1 size | ||||
| Fitting or Connector Type | ||||
| Application | ||||
| Pack Size | ||||
| Connectivity | ||||
| Features | ||||
| Material | ||||
| Pipe or Fitting Product Type | ||||
| Bend Degree | ||||
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Details
Warranty / Certifications
Questions & Answers
why isn't the floor flange threaded all the way through the fitting?
Asked by Camera October 19, 2020You may be looking for a "gas appliance stub out."
How strong are these? Curious if I could use this to do a ceiling pull up bar setup? Or would the...
Asked by Jacob September 6, 2020These are built very tough. I used them to make some heavy duty book shelves that hold quite a bit of weight. The bigger concern would be that you need to make sure you find a good stud to mount them into, and then putting some lockthread on the threads to prevent the bar from rotating. You will probably only be able to get one screw in the top and one in the bottom hole since the holes on the left and right will be wider than the stud.
What is the size of the fastener holes?
Asked by MJ April 15, 2020It states to use 5/8 in Flat head screws. I needed something sturdier, and went with 1/4 in. Carriage bolts. 5/8 in. Carriage bolts were too thick for the holes.
IS THIS PRODUCT MADE IN AMERICA ???
Asked by JOE April 10, 2020Yes. I have it and there is no marking saying otherwise anywhere on the packaging or item. Fun fact: if it is sold in America and doesn't say the country of origin on it, it's from America.
What is the spacing of the holes? I would guess that the spacing is a bolt circle diameter (to ge...
Asked by DS March 24, 2020the holes are 4 on 2.5" dia. circle.
using 4 # 8 SS screws, what is the pull out value.
Asked by jim October 15, 2019Sorry Jim. I cannot answer that. In order to calculate the withdrawl force of your screws you will need to know the diameter fo the screw, (#8), the length of the screw and the description and specific gravity of the material that you driving the screws into. There is a lot of informaiton on the internet regarding how to find your answer. Take a look at https://www.engineeringtoolbox.com/wood-screws-allowable-withdrawal-load-d_1815.html
It is hard to tell but I am trying to run an air pipe through a wall and I was thinking about usi...
Asked by BB August 12, 2019Be easier to drill a hole in the wall use longer pipe to go through the wall. Cut pipe to allow for half inch of threads from where it exits the wall and however much more is needed to mount the airhose connection to the pipe. Then cut threads on the pipe and screw one of these on back against the wall lag bolt or screw the flange to the wall.
what is the thread count per inch for 3/4 in pipe
Asked by ric May 16, 201910 per American National Standard Pipe standards
In using Black Malleable Iron for furniture/shelving does it need to be cleaned and sealed?
Asked by Paul May 2, 2019No, this piece should be ready to go as is. Be warned, some of the pipes however may need the grease cleaned off. Just depends on what size pipes you need to buy.
What concrete screw would hold this 3/4" flange in place, and hold it in place, preferably flush ...
Asked by Adamino December 15, 2018Depends what you are using it for. You can use Tapcon screws can work but you are using it for something heavy then I would suggest any masonry style anchor.
