Whole Home 240-Volt 25 kA Panel Mount Surge Protection Device (THQLSURGE2)
- GE residential electrical products is switching to ABB
- Simple plug in installation
- Compatible with all ABB and GE residential panels
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
THQLSURGE2 is designed for service entrance or subpanel locations. It provides small, easy to install surge protection for the entire home or office. An LED indicates the proper function of the protection elements. The thqlsurge2 conveniently connects inside the GE power mark load center, directly onto the bus, like a circuit breaker, providing direct protection for the entire panel and all attached loads.
Highlights
- 3-year warranty
- Covers up to $25,000 of connected equipment
- Protected against dangerous lightning and utility produced power surges
- Installed in your next GE load center (the best location for protecting all AC circuits in your home)
- Meets newest UL 1449 5th edition surge protection requirements
- Installed to meet NEC 2023 SPD requirements for dwelling units at or adjacent to service entrances
- Learn More About Circuit Breakers Here in our Buying Guide.
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions
Product Depth (in.) | 3 in |
|---|---|
Product Width (in.) | 2 in |
Details
Connection type | Breaker |
|---|---|
Joules | 1520 |
Maximum Amperage (A) | 25000 A |
Returnable | 90-Day |
Surge Current Capacity (kA) | 25 kA |
Warranty / Certifications
Certifications and Listings | UL Listed, cUL Listed |
|---|---|
Manufacturer Warranty | 3 year warranty from first use |
Questions & Answers
Does it have to be installed in the first position? I am planning on installing a generator interlock as well.
The THQLSURGE2 is recommended to installed in the 1st position, it does not have to be. It can be installed in other positions. Thank you for your question.
From the warranty this must be installed by a licensed electrician. If it is installed correctly but not by a licensed electrician does that void the warranty?
How is this a type 1 SPD? By all definition it is a type 2.
What size surge arrester is required for a Siemens 200amp service w/sub-panel commercial/residential property?
What is the clamping voltage?
will this fit on a weston panel
Can this be used in a GE panel that accepts THQL circuit breakers? It doesn’t say THQLSURGE or THQLSURGE2 on the panel.
It will work in a panel labeled for THQL breakers.
Is this a one time use , or after it trips it needs to be replaced or those it reset itself ?
Both
It can’t be reset. Once the green light goes out, the surge protector needs to be replaced.
Viewing 1-8 of 8
Customer Reviews
4.8 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for homeowners who want whole-home surge protection, ensuring safety and peace of mind. | Ideal for homeowners seeking whole-home surge protection, ensuring safety and peace of mind. | Ideal for homeowners wanting whole-home surge protection, ensuring safety and peace of mind. | Ideal for homeowners seeking whole home surge protection, ensuring electronics safety. |
Surge Protection Rating | |||
25 kA | 25 kA maximum surge capacity | 65kA surge current | 108 kA |
Clamping Voltage | |||
150 VAC line-to-ground maximum | |||
Energy Absorption/Dissipation | |||
1520 Joules | 930 Joules | 3600 Joules | 2820 Joules |
Number of Protected Circuits | |||
All AC circuits | All circuits throughout your home | All home circuits | |
UL 1449 Safety Certification | |||
Related Products
25 kA Universal Whole Home Surge Protection Device (HEPD25)
Square D brand Home Electronics Protective Devices (HEPDs) are compact and affordable surge suppressors designed for residential load centers. HEPDs work together with surge protection plug strips to provide surge suppression for sensitive electronics. HEPDs reduce surges that might otherwise overwhelm plug strips and damage connected household equipment. HEPDs also provide surge suppression for important items such as washers, dryers, refrigerators, stoves and air conditioning that plug strips may not or cannot protect.
25kA 2-Pole Whole Home Surge Protection Device for Square D Homeline Load Centers (HOM2175SB)
The Homeline Surge breaker Surge Protective Device is designed as a quick plug-on unit is compatible with Square D Homeline load centers and CSED devices. The SPD requires 2- pole spaces. This unit has 25,000 Amp Maximum Surge Capacity and has a 150 VAC line-to-ground maximum providing protection from electrical surges.
80kA Universal Whole Home Surge Protection Device (HEPD80)
Square D brand Home Electronics Protective Devices (HEPDs) are compact and affordable surge suppressors designed and is compatible for any brand residential load centers. HEPDs work together with surge protection plug strips to provide surge suppression for sensitive electronics. HEPDs reduce surges that might otherwise overwhelm plug strips and damage connected household equipment. HEPDs also provide surge suppression for important items such as washers, dryers, refrigerators, stoves, and air conditioning that plug strips may not or cannot protect.

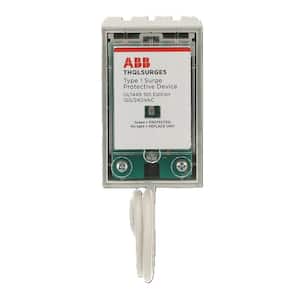

Whole Home 240-Volt 50ka Panel Mount Surge Protection Device (THQLSURGE5)
