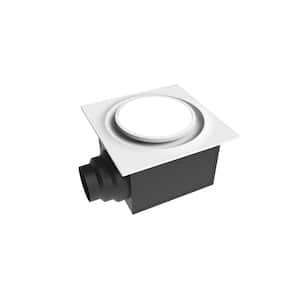

Low Profile 110 CFM 0.9 Sones Quiet Ceiling Bathroom Ventilation Fan with LED Light/Night Light White

$178.00
Apply Now
Pay $153.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • 8W dimmable LED light with night light; CA Title 24/JA8 compliant
  • Ceiling mount fits 2 x 8 in. joists; 4-5-6 in. metal duct adaptor
  • 110 CFM quiet 0.9 Sones; 6 year warranty
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Let there be light in your bathroom! The ABF110 L Series ENERGY STAR qualified bathroom fans feature a 10 Watt 3000K 850 Lumens LED light, 7 Watt LED night light, contemporary low profile grilles, and are approved for installation in an insulated ceiling. Fan, light, and night light may be wired separately. A detachable 4, 5, 6 round duct adapter and patented quick-install brackets make installation a snap for new construction and room side retrofit. Aero Pure ABF 110 CFM bath fans are ETL listed for wet application when used with a GFCI branch circuit wire, Energy Star qualified, meet ASHRAE 62.2 national standards for achieving acceptable indoor air quality in typical residences, and are CA Title 24/JA8 compliant. Aero Pure bathroom lighting and ventilation solutions- Style. Performance. Energy Efficient.

Highlights

  • ENERGY STAR qualified quiet 0.9 Sones enclosed 110 CFM motor with built-in overload disconnect engineered for continuous operation
  • 10-Watt 3000K 850 Lumens LED light, 7-Watt LED night light; fan, light, and night light may be wired separately
  • ETL listed for wet application over tub and shower enclosure when used with a GFCI branch circuit wire
  • HVI listed, ENERGY STAR qualified, CA title 24/JA8 and ASHRAE 62.2 compliant
  • Grille dimensions- 13x13; housing dimensions- 10.31x7.5x10.39
  • 4, 5, and 6 in. metal duct adaptor included
  • Fits 2 x 8 construction
  • Full 6 year warranty
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 308763715

Model # ABF110 L6 W

Store SKU # 1004137484

Specifications

Dimensions: H 7.5 in, W 10.31 in, L 10.39 in

Dimensions

Housing Length (in.)

10.39

Housing Width (in.)

10.31

Product Height (in.)

7.5 in

Product Length (in.)

10.39 in

Product Width (in.)

10.31 in

Details

Air Volume (CFM)

110

Amperage (amps)

0.23

Color/Finish

White

Duct Compatible Sizes

4 or 5 in, 4 or 6 in

Features

Decorative, Light, Nightlight

Grill Shape

Square

Housing Material

Galvanized Steel

Included

Hardware, Light Bulb, Nightlight Bulb

Installation Type

Ceiling

Light Bulb Type Included

Integrated LED

Maximum Light Bulb Wattage (watts)

10

Maximum Room Size (sq. ft.)

110

Mount Type

Recessed

Number of Bulbs Required

1

Pack Size

1

Product Weight (lb.)

14 lb

Returnable

90-Day

Room Size

Large Room Fan

Voltage (V)

120

Wattage (watts)

26

Warranty / Certifications

Certifications and Listings

ETL Listed, HVI Certified

Manufacturer Warranty

All parts under warranty for a period of 6 years (72 months) from date of original purchase; fan must be installed by licensed electrician; offered only to original purchaser; proof of purchase is required; offered only if purchased from authorized Aero Pure seller.

Questions & Answers

11Questions
caret
Q:With the folding bracket, is it possible to mount the fan flush with the ceiling joist? (In a retrofit application, the existing fan is mounted on the joist, and thus the ceiling hole is there)
by|Jan 1, 2024
1 Answer
Answer This Question

A:  Please send me an email and I can send you the installation instructions. info@aeropurefans.com

by|Jan 8, 2024
    caret
    Q:I wired the blue, brown and black wires together with the hot wire coming in. Does that mean both the regular light and the night line come on when I flip the switch?
    by|Apr 19, 2023
    1 Answer
    Answer This Question

    A:  Yes. If you want to use the night light it needs to wired on a separate switch.

    by|Apr 20, 2023
      caret
      Q:What size of pipe for venting do I use? I tried a 3 inch but that's too small and a 4 inch is too big!
      by|Mar 18, 2023
      1 Answer
      Answer This Question

      A:  Install a circular duct and secure it with clampsor ties and seal it with mastic or approved duct tape. A 4”, 5”, or 6” circular duct is needed to connect to relevant part of adaptor. (See page 6 of installation manual)

      by|Mar 20, 2023
        caret
        Q:I prefer not to connect the nightlight, and just use one switch for the fan and lamp. Is that a viable option?
        by|Dec 4, 2022
        1 Answer
        Answer This Question

        A:  Yes. Just cap the blue wire (nightlight) and tie the black and white wires for the fan and LED together to the switch.

        by|Dec 7, 2022
          1 found this answer helpful
          Showing 1-4 of 11

          Customer Reviews

          4.2 out of 5

          • 4.2 out of 11 reviews
          • 60% recommend this product
          Filter by:
          Showing 1-10 of 11 reviews
          • Verified Purchase
          1 found this review helpful
          Aero Pure Low Profile
          Very quiet that's what I wanted.
          by
          • Verified Purchase
          • Recommended
          This fan is so quiet the installer thought it was...
          This fan is so quiet the installer thought it was a bad exaust fan, I explained it's a quiet fan. The LED light is very bright, my daughter was so surprised. I mean, it lit up the bathroom really nice, being we have a patio that does not allow sun light. I should have bought two fans so if it goes out hopefully in years to come we'll have an extra to install again.
          by
          • Verified Purchase
          Very quiet and added tons of light to a bathroom...
          Very quiet and added tons of light to a bathroom without windows. Very pleased with it.
          by
          • Verified Purchase
          1 found this review helpful
          This fan is amazingly quiet. After listening to our old...
          This fan is amazingly quiet. After listening to our old fan for years, it was hard to even tell if the new one was on! I’ll have no concerns getting another one the same for our other bathroom.
          by
          • Verified Purchase
          This product is much quieter that the unit it replaced. It was not an easy retrofit, would have ...
          This product is much quieter that the unit it replaced. It was not an easy retrofit, would have been much easier in new construction but I was able to fit it in and attach to the existing vent. My wife really likes the night light feature.
          by
          • Verified Purchase
          • Recommended
          FAN is VERY QUIET; COULD NOT GET LIGHT TO DIM; SHOULD MANUFACTURE in MATTE BLACK
          I wanted this fan in MATTE BLACK, but it was not available. Tried the oil rubbed bronze and brushed nickel but that didn't work with the decor so I purchased the white and had my cousin paint! We could not get the light to dim - reading through other reviews that seems to have been an issue with others. So far it's been up and working for 6+ months with no issues. Compared to the 20+ year old fan without light that it replaced, this unit is WHISPER QUIET to the point where I constantly have to come behind my husband to turn it off.
          by
          Response from Aero Pure FansJun 26, 2020
          YHWHYIREH- We are happy to hear you not only have the finish you want in your bathroom and your new Aero Pure fan is running quietly. Have you contacted us about the light not dimming properly? We do have tech service available M/F 9am to 5pm EST and we can help you troubleshoot your dimming issue. Kudos to your cousin! Jessica @Aero Pure AeroPure
            good, not great
            Replaced a 30yr old fan that just died. A few unexpected disappointments, but overall it vents properly. Almost had a problem where I placed it nearly too close to a cross support beam without realizing how much space the bracket required in the ceiling, about 2" from beam. Luckily just barely avoided having to make a creative attachment to the beam instead of using the bracket. The main light is a good brightness and is the proper soft white color to match other soft white lights. Comparing to Nutone's "clean cover" light, which is a smaller light size, this light's larger footprint helps reduce shadows over curtain rods, and Nutone's whiter light won't match other daylight nor soft white lights in the room. However, the nightlight is way too bright and is apparently NOT dimmable like I had expected from the Q&A's. Installed in the master bathroom, it keeps my attached bedroom too bright for sleeping. Have to close the door or leave the nightlight off. I had put it on a smart dimmer switch to have it on a timer and dimmed if necessary. Well, it's necessary, but won't dim. Finally, its not as quiet as expected with it's 0.3 sones rating. Maybe its defective, but I can't tell a difference in sound level between it and a 0.8 sones Nutone 110 CFM fan also just installed. Both have similar lengths and shapes of rigid ductwork installed. It's definitely not loud, but just not as quiet as the 0.3 rating had me expect. I would buy again for the light, but only where the nightlight won't be near bedrooms, and maybe take the sones rating with a grain of salt.
            by
              1 found this review helpful
              The fan does work great but the directions were not...
              The fan does work great but the directions were not good at all. It does not clearly spell out a few items and referred to diagrams on the wrong pages. The bracket that holds the fan is not the best. They should provide a better bracket.
              by
              Response from Aero Pure FansDec 27, 2019
              Dennis- I apologize for the delay in responding to your review. We value the input we receive from our customers and we are working to improve the installation directions. Let me assure you that the brackets will support your fan for many years to come. We have had positive feedback on the brackets, but we appreciate your comment. We are happy to hear that the fan is working well for you. Thank you for your review.
              Lauren @Aero Pure AeroPure
              • Verified Purchase
              1 found this review helpful
              Installation was easy and performs as advertised....
              Installation was easy and performs as advertised.
              by
              Response from Aero Pure FansMay 30, 2019
              HomeDepotCustomer-
              We are always happy when our customers are happy! Thanks for taking the time to review our fan.
              Jennifer@ Aero Pure AeroPure
              • Verified Purchase
              1 found this review helpful
              Showing 1-10 of 11 reviews
