Internet #204344812

Model #ESDQ1248

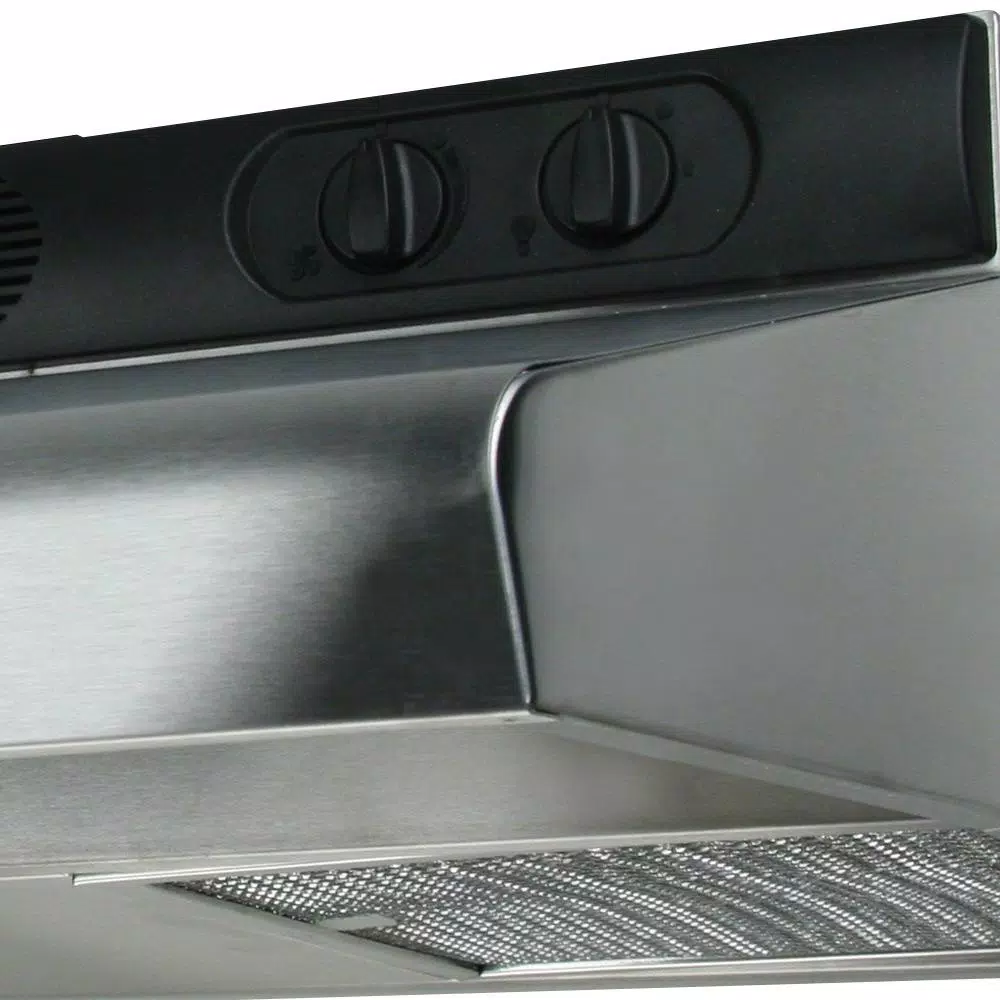

ESDQ Series 24 in. ENERGY STAR Certified Under Cabinet Convertible Range Hood Deluxe Quiet with Light in Stainless Steel

  • Perfect for use in standard residential kitchens
  • Quiet Operation
  • Included washable grease filters
  • See More Details
icon
Easy Returns In Store and Online
Read ourReturn Policy
Hover Image to Zoom
Highlights
  • Perfect for use in standard residential kitchens
  • Quiet Operation
  • Included washable grease filters
You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
19.5
Product Height (in.)
7.5
Product Width (in.)
24
Range Hood Size (Width)
24 in.

Details

Amperage (amps)
1
Appliance Type
Range Hood
Color/Finish
Stainless Steel
Color/Finish Family
Stainless Steel
Commercial/Residential
Residential
Control Type
Rotary Dial
Exhaust Vent Location
Back,Top
Features
Lighted,Removable Grease Filter(s)
Included
Bulb(s),Damper,Fan,Filter(s)
Light Type
LED
Maximum Air Flow Capacity (CFM)
270 CFM
Minimum Air Flow Capacity (CFM)
150
Mounting Type
Under Cabinet
Number of Fan Speeds
3
Number of Light Bulbs
1
Product Weight (lb.)
18.7
Returnable
180-Day
Vent Install Type
Convertible
Vent Material
Metal
Voltage (volts)
120
Wattage (watts)
73 W

Warranty / Certifications

Certifications and Listings
ETL Listed,HVI Certified
Manufacturer Warranty
1-year limited

Product Overview

The ENERGY STAR certified ESDQ Range Hood provides energy efficient and effective ventilation at low sound levels. Mitered edges allow side cabinet doors to fully open while a stainless steel or painted finish allows the hood to match the rest of the kitchen appliances. The included LED lamp provides energy efficient and effective lighting to the cooking surface.
  • Energy efficient, ENERGY STAR certified performance
  • Powerful, quiet operating 3 speed motor
  • Dual control knobs for speed and lighting settings
  • Included, 8-Watt LED lamp illuminates the cooking surface
  • Vertical or horizontal 3-1/4 in. x 10 in. ducting with damper included, convertible to ductless with odor (sold separately)
  • Easily removable aluminum mesh grease filters capture grease and debris
  • Up to 270 CFM of airflow, as low as 1.5 sones at 150 CFM
  • Continuous ventilation setting allows hood to be used to comply with ASHRAE 62.2 continuous whole house and local exhaust
  • Dimension - 24 in. width
  • Stainless steel finish
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Enjoy 10% off

Sign up for Style & Decor emails and save on your next order. Valid on select items.

Questions & Answers

23Questions14Answers

EXHAUST VENT work with 8 in.?

Asked by JONES May 1, 2020
1
Answer

The ESQZ2368 uses 7" round ducting. You will need to find an adapter that will change it to 8" round.

Does this vent to the outside?

Asked by DY April 23, 2020
2
Answers

Yes, the hood is to be vented to the outside. The actual ducting is not included so you will need to purchase it separately.

what hoods do you have that are cord and plug

Asked by Clyde March 5, 2020
1
Answer

Air King does not have range hoods with electrical cords. All of the hoods are hardwired.

i need 24 of these shipped to milwaukee

Asked by joe March 4, 2020
1
Answer

Hello Joe, Thank you for your recent inquiry with The Home Depot. This Air King ADA Series 24 in. ENERGY STAR Qualified Convertible Under Cabinet Range Hood with Light in Stainless Steel, Silver is currently in stock online. It can be ordered online and shipped directly to your home, business, or local store. For any other questions, please call us at HomeDepot.com Customer Service 800-430-3376. Thank you for shopping Home Depot.

what is the sones rating on this unit at each speed?

Asked by hd December 4, 2019
1
Answer

4.0 on high speed and 1.50 on low speed.

Is this hood hard wired or plug in?

Asked by Sareh October 6, 2019
2
Answers

the ESDQ hoods are hard wired.

Is a special light bulb required to get two levels of light? We like our Air King but for some r...

Asked by Sweepcall June 16, 2019
2
Answers

I asked this question and found the answer by taking off the diffuser to discover there is a second bulb socket. Further research confirms that my purchase did not contain the second bulb. Any bulb with a small ⅜" candelabra base will work, but I found out that a Type L7 4W max is recommended (and should have been in the box). I tried a larger bulb and the two level wall switch worked just fine, but the bulb is too big to fit underr the diffuser. I also confirmed the Model # is ES306ADA. So ignore the errant answer from Air King, I'm not sure what they are thinking.

Is that 230w comparable?

Asked by Don February 22, 2019
1
Answer

The 230 CFM refers to the amount of air the fan moves, cubic feet per minute.

I assume convertible means that the range hood can be used ducted or ductless?

Asked by Curious February 18, 2019
2
Answers

Yes, the range hood can vent externally or recirculate.

What adapter do I need for a 7" round duct vertical install?

Asked by JB February 5, 2019
1
Answer

The round duct adaptor is ARD7R.

ESDQ Series 24 in. ENERGY STAR Certified Under Cabinet Convertible Range Hood Deluxe Quiet with Light in Stainless Steel - page 2
