Model #BDW001-OV.011.295

Ovation 33.5 in. x 48 in. x 75.25 in. Combo 5-Piece Shower Kit in Arctic and Brushed Nickel

  • Includes curved shower base, shower door and 3 piece wall set
  • Curved design allows for more space while showering or bathing
  • Made of reinforced fiberglass & acrylic; resists scratches, stain
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Make your bath remodel easy with the Ovation Curved Shower Kit. It combines the Ovation Curved Shower Door with a coordinating Ovation low threshold Shower Base, so it's perfect for a bathroom renovation or just adding a shower feature to a bath. The curved base provides more elbow room in the shower. The door has a stationary glass panel and smooth sliding panel. Install the sliding door on either left or right side for access preference. A low step-over height base gives you easy entry and exit. The walls feature 6 extra deep shelves to accommodate your large bathing products.
  • Overall kit dimension 48 in. x 33-1/2 in. x 75-1/4 in.; spacious with curved front appeal to modernize a standard shower
  • Items included: Ovation shower door, curved low threshold shower base and 3 piece wall set
  • Ovation curved shower door has 1/4 thick safety tempered clear frameless glass design and brushed nickel hardware; fits 48 in. opening, 72 in. H
  • Door opening 17-1/4 in.; stationary panel 21-3/4 in.
  • Reversible for right or left installation
  • Width installation adjustability up to 1 in. per side
  • 1/4 in. (6 mm) clear tempered glass, tempered glass ANSI certified
  • Material: tempered glass, and aluminum
  • Satin nickel hardware finish
  • Anodized aluminum profiles and guide rails
  • Double rollers for smooth sliding
  • Includes inner and outer set of knob door handles

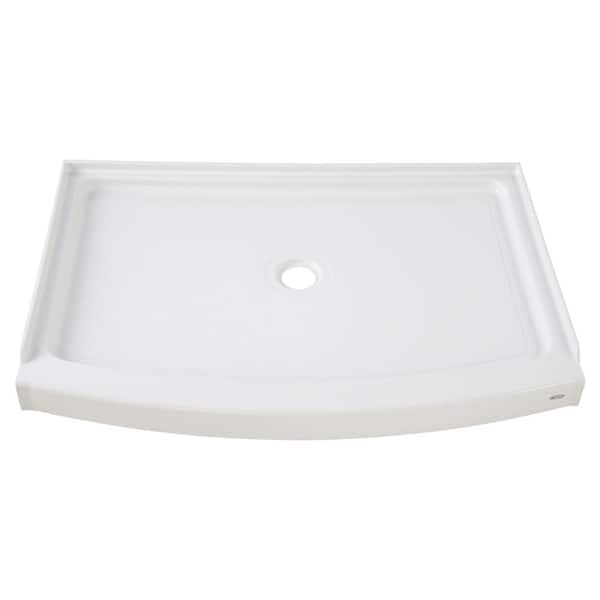

  • Ovation low threshold shower base has a textured bottom; dimensions are 48 in. L x 30 in. W x 3-1/4 in. H
  • Base curves to 33-1/2 in. at widest point; center drain configuration
  • High quality scratch and stain resistant acrylic; fiberglass reinforcement for durability
  • Textured floor for safe showering; integrated tile flange for easy installation and waterproofing
  • cUPC certified; drain not included
  • Component Model #’s included in Shower bundle: 4021.101N.020, 3717D.001.020

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Base Height (in.)
3.25
Base Length (in.)
48
Base Width (in.)
30
Fits Finished Width (in.)
30
Threshold Height (in.)
3.25
Wall Height (in.)
75.25
Wall Width (in.)
48

Details

Approximate Length x Width
48 x 32
Color Family
White
Color/Finish
Arctic and Brushed Nickel
Drain Location
Center
Features
No Additional Features
Included
Door Hardware,Frame Hardware
Installation Type
Rectangular
Material
Multi-Surface
Number of Finished Sides
1
Number of Shelves
6
Number of Shower Pieces
5 Pieces
Product Weight (lb.)
149.2 lb
Returnable
90-Day
Shower Kit Type
Base & Wall
Shower Type
Alcove
Style
Modern
Surface Type
Textured
Wall Installation Type
Free Standing

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Certified,CSA Listed,IAPMO Certified
Manufacturer Warranty
Limited Lifetime

Questions & Answers

65Questions19Answers

Does American Standard make the curve ovation shower sliding door 48 “ in chrome finish ? Or does...

Asked by Jim May 26, 2021
1
Answer

Unfortunately we only offer this is a satin finish. Your American Standard Consumer Connection Team.

I need a 33.5 X 48 in model 2602. Model 2602 drain location is in the center 24 in from each side...

Asked by kaveh May 23, 2021
2
Answers

That is really a question for American Standard. I think I may have seen a centre drain, but looked at so many...

What is the thickness of the material ?

Asked by flash February 6, 2021
2
Answers

It is very thin, not normal. Cracks and buckles

Is there an available right drain base or another brand that would fit this unit

Asked by titryin February 1, 2021
1
Answer

titryin, I am sorry but only the center drain is available with this model and this is the model needed to work with this door. Sincerely, your American Standard Consumer Connection Team

Is it possible to buy a new door frame. Had an accident and destroyed the frame. Glass is ok.

Asked by Kprintinc January 6, 2021
2
Answers

Kprintinc, Please contact our customer care line at 800-442-1902 and listen for the shower door prompt. One of our reps will be able to assist you with this. Sincerely, your American Standard Consumer Connection Team

Is there a different price for other than white. Since your people ignore me.

Asked by willie January 2, 2021
2
Answers

Hello, Thank you for reaching out to the American Standard Consumer Connection Team. The American Standard Ovation shower kit is only available in Arctic White.. If there is anything we can assist you in the future, please feel free to contact us at 1-855-815-0004 Monday – Friday, 8AM – 7PM EST or Saturday 10AM – 4PM and an American Standard Consumer Connection Advisor will be happy to assist you.

How do I clean glass

Asked by Cheryl October 17, 2020
2
Answers

Cheryl, You can use the typical glass cleaning products that are on the market. Invisible glass is really good. Sincerely, your American Standard Consumer Connection Team

how many boxes does this shower come in

Asked by neecie September 24, 2020
2
Answers

Three

what are the measurements of the center of the whole ?

Asked by scooter August 29, 2020
1
Answer

Hello, Thank you for reaching out to American Standard Consumer Connection Team. The drain hole has a dimension of 3.5". If you need additional assistance, please visit the American Standard Website, and email us directly through the “Contact Us” section and an American Standard Consumer Connection Advisor will be happy to assist you.

Hello! I really interested in installing this shower kit in my bathroom, but I want to make sure it Will fits well.

Asked by Theo August 25, 2020
4
Answers

You will need the full 48" in width between the studs, so it sounds like you are 2" short. the 33" measurement will work.

Ovation 33.5 in. x 48 in. x 75.25 in. Combo 5-Piece Shower Kit in Arctic and Brushed Nickel - page 2

Customer Reviews

  • 3.7
    out of 131 reviews
  • 53% recommend this product
Filter by:
Showing 1-10 of 131 reviews
Clean lines,amazing doors,great price!
Clean lines,amazing doors,great price!
by Shower
Stunning once installed. However, our plumber said they were the hardest doors he has ever instal...
Stunning once installed. However, our plumber said they were the hardest doors he has ever installed. The only other drawback is the door handle placement. Included are handles that stick straight out from the glass. When you open the door the handle bangs into the other glass door. There are no bumpers/stoppers to prevent this from happening. I am afraid the other glass door is going to shatter. If you switch the handle, so that the shorter knob on the inside of the shower door points outward, the handle slides behind the other glass door. It is hard to grab.
by Handle
Response from AmericanStandardBrandsOct 5, 2020
I'm sorry to see you aren't completely satisfied with your American Standard Ovation door. You may want to contact us to ensure it was installed correctly. We put a lot of thought into our products, so it is unfortunate whenever we do not meet a customer’s expectations. We would like to connect with you to learn more about your experience to find a way to help! Please visit the American Standard Website, and email us directly through the “Contact Us” section and reference your review. Your American Standard Consumer Connection Team. AmericanStandard
Beautiful and quite simple to install by just following the instructions, that were very well wri...
Beautiful and quite simple to install by just following the instructions, that were very well written. The hardest part of the installation was the door frame. Be sure you have studs behind the front wall to secure the door frame to. ALSO, you will need a pick up truck or rent theirs as the wall box is 50 x 75 aprox.
by jeff
1 person found this helpful
Great looking shower unit. The directions could have been better explained as some steps are actu...
Great looking shower unit. The directions could have been better explained as some steps are actually missing causing unneeded disassembly of some steps to complete the assembly of the door instructions. Otherwise the shower assembly was easy to do if you have some previous experience in shower unit assembly.
by Andre
1 person found this helpful
I am a home owner and installing showers is not my day job, but I'm very handy which is why I ren...
I am a home owner and installing showers is not my day job, but I'm very handy which is why I renovate my whole house. HOWEVER, installing this shower + door was by far the most difficult thing I had to do on my house so far. Be warned, it's really not thought trough. First the shower itself, ok to install but if you don't have your studs EXACTLY where they are required... oh boy, you're up for some hours of fun... the thing is the panels are very wobbly and unless you have studs every 10 inches, you're up for some loose and moving plastic panels. Then, the door, oh wow, that door, I would recommend an ironworker workshop and multiple years’ experience to install it. First, they give you those square screws, like who does that?? Those screws have a life span of half a second until they are rounds, then they expect you to screw into some (not so great) predrilled steel, so I had to predrill everything first... Installing that door took me about 16 months, and it was mostly because of the instructions provided, awfully written. Finally, when you think you have done everything and it looks good, you're about to install the handle, they bang into the fixed glass panel. This is not great design at all I'm afraid and it looks like there are no solutions out there. Nope, they just leave it like that... Just ask you to be careful when you open the door.... well tell that to a kid or literally anyone else. Good price overall.
by Pierre
Response from AmericanStandardBrandsNov 26, 2019
Pierre,I'm sorry to see you had issues with installing your Ovation Shower Kit. We put a lot of thought into our products, so it is unfortunate whenever we do not meet a customer’s expectations. We would like to connect with you to learn more about your experience to find a way to help! Please visit the American Standard Website, and email us directly through the “Contact Us” section and reference your review. Sincerely Your American Standard Consumer Connections Team. AmericanStandard
5 people found this helpful
This shower looks great, is pretty spacious inside, and so far has worked well, but there were so...
This shower looks great, is pretty spacious inside, and so far has worked well, but there were some issues. When the unit first came in, it was damaged and some parts were missing. Once we got a replacement, our contractor had a very difficult time installing it. He said that it did not seem to be well manufactured, and he had to make some modifications to install it properly. The door was also tricky to hang so that it slid smoothly. One other negative is that the metal knob hits right up against the glass door with no buffer. Overall we're happy with the result, but I'm glad we didn't try to install it ourselves.
by Rose
2 people found this helpful
Water escapes from under stationary glass even though I caulked. Its actually going under the gla...
Water escapes from under stationary glass even though I caulked. Its actually going under the glass building up and splashes up and out.
by Rav
6 people found this helpful
Love the base! Walls panel could use improvement, possibly a...
Love the base! Walls panel could use improvement, possibly a flange at the bottom that fits into base to hold firm. Door installation were a little confusing. Also didn’t like the screws in shower, I would prefer them to be hidden or on the outside!
by Ricky
Great looking product! Just make sure walls are plumb...
Great looking product! Just make sure walls are plumb as there are no adjustments for rails or rollers on door.
by TRACY
excellent value and quality.
excellent value and quality.
by jstrz11
Showing 1-10 of 131 reviews
