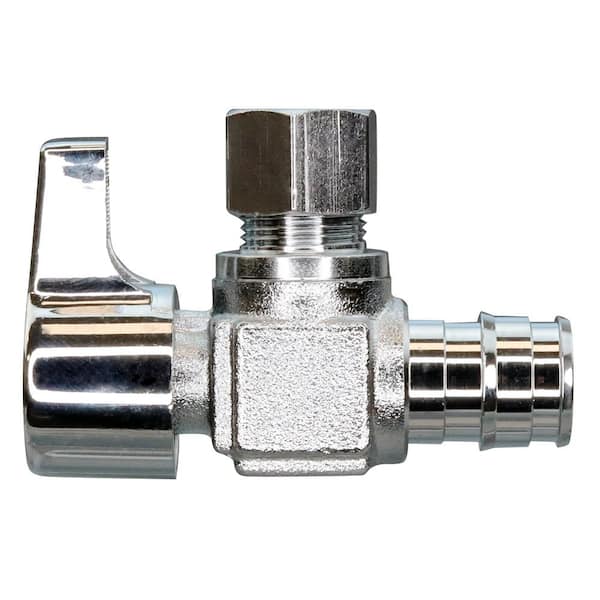

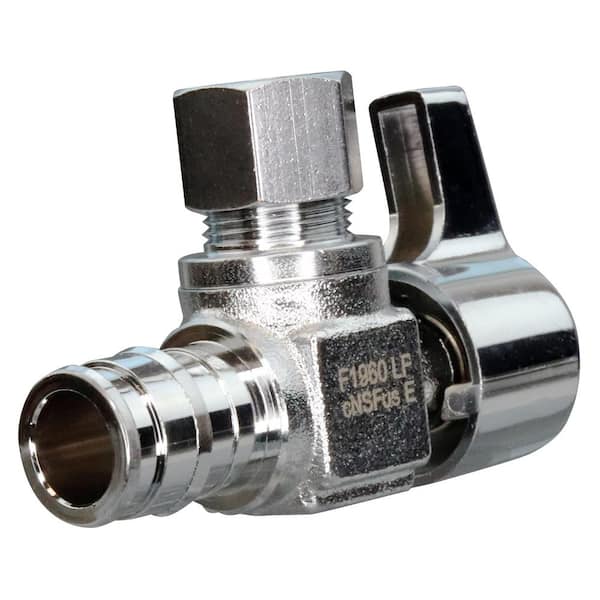

1/2 in. Chrome-Plated Brass PEX-A Expansion Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve
$8.73
- Designed exclusively for use within Type A PEX piping systems
- Full-flow design for maximum water output
- Quarter-turn lever handle design for simple flow control
Product Details
The Apollo ExpansionPEX 1/2 in. Chrome-Plated Brass PEX-A Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve is simple to install and provides flow control through a quarter-turn ball valve. Most commonly used at point of use fixtures, it allows for repair and maintenance of fixtures without the need to shut down flow control to the entire system. The 3/8 in. compression outlet provides the capability to install 3/8 in. O.D. tubing or 3/8 in. supply lines. It is designed for use on point of use fixtures such as dishwashers, toilets and faucets. Apollo ExpansionPEX barb fittings are a key component to one of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, Apollo ExpansionPEX couplings must be secured into place Apollo ExpansionPEX sleeves or comparable expansion-type sleeve or ring (all sold separately). The Apollo ExpansionPEX system is a comprehensive piping system comprised of lead free brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.
- Individually bagged
- Larger internal diameter of Apollo ExpansionPEX fittings results in a 25% greater flow rate within the system
- Constructed of chrome-plated lead free dezincification resistant (DZR) brass for superior reliability and strength
- Cold-expansion tool (sold separately) is required for installation
- Meets or exceeds ASTM F1960 standard
- Meets UPC, IPC and cUPC standard
- Barb x compression connection for PEX plumbing systems
- NSF listed
- Rated to 200 degree F and 200 psi
- Item is not compatible with PEXb pipe, crimp-style (ASTM 1807) or pinch clamp (ASTM F2098) piping systems
- Return Policy
- California residents
Specifications
Questions & Answers
Jun 6, 2022
DIYer be careful
If you look at the pictures online you will see that the pex fitting is milled right up to the body of the shutoff valve, making it near impossible to install incorrectly. However the pieces you buy in store can have a longer collar between the pex fitting and the body of the shutoff. If you are a rookie like me, you can installed the fitting too far into the pipe and the expansion collar will not fully seal. Just make sure you install right up to the end of the fitting and no further.
by
Jan 8, 2023
by
Jan 4, 2023
PEX-A is the way to go. Great item. Quarter turn...
PEX-A is the way to go. Great item. Quarter turn long lasting.
by
Aug 26, 2022
by
Apr 13, 2022
by
Mar 22, 2022
by
Oct 6, 2021
Good product easy to work with....
Good product easy to work with.
by
Apr 1, 2021
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
Jan 12, 2021
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
Jun 3, 2020
It would be very beneficial to begin supplying this item...
It would be very beneficial to begin supplying this item within the store.
by
Frequently Bought Together
Price:
$873
Compare Similar Shut-off Valves
|  |  |  | |
| Brand | Apollo | Tectite | BrassCraft | Tectite |
| Name | 1/2 in. Chrome-Plated Brass PEX-A Expansion Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve | 1/2 in. Chrome-Plated Brass Push-to-Connect x 3/8 in. Compression Quarter-Turn Straight Stop Valve | 1/2 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Angle Valve | 1/2 in. Chrome-Plated Brass Push-To-Connect x 1/4 in. Compression Quarter-Turn Angle Stop Valve |
| Price | $873 | $916 | $945 Buy 20 or more $4.73 | $1027 |
| Ratings | (14) | (21) | (48) | (8) |
| Connection | PEX Barb x Comp | PTC x Comp | PEX Barb x Comp | PTC x Comp |
| Material | Brass | Brass | Brass | Brass |
| Inlet Diameter (In.) | 1/2 | 1/2 | 1/2 | 1/2 |
| Outlet Diameter (In.) | 3/8 | 3/8 | 3/8 | 1/4 |
| Compatible Pipe Material | PEX | Multi-Purpose | PEX | Multi-Purpose |
| Maximum Working Temperature (F) | 200 | 250 | 140 | 250 |
| Maximum Pressure (psi) | 200 | 200 | 125 | 200 |
| Valve Inlet Diameter (in.) | 1/2 | 1/2 | 1/2 | 1/2 |
| Application | Potable Water | Potable Water | Potable Water | Potable Water |
| THD SO SKU | 1002377410 | |||
| View Product | View Product | View Product | View Product |
