- Superior flexibility allows for fewer joints and leak points
- Full-flow design for maximum water output
- Less coil memory than regular PEX pipe thus resists recoiling
- See More Details
Frequently Bought Together
Price:
$10194
Product Overview

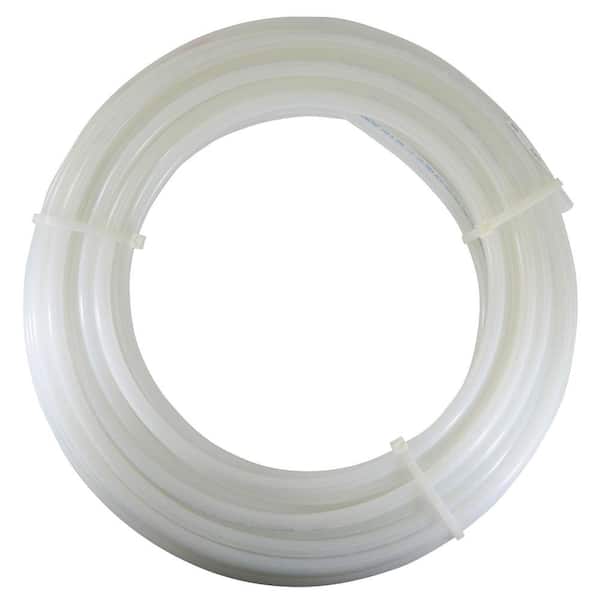

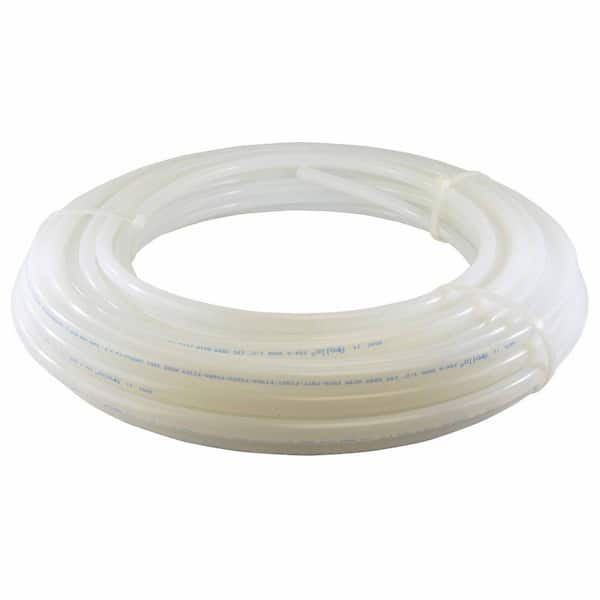

Apollo ExpansionPEX is cross-linked polyethylene tubing designed for use within potable water piping systems. Produced using a Peroxide method, Apollo ExpansionPEX is PEX-A pipe. Having been in use for over 50 years PEX-A pipe has the highest rate of cross-linking of any PEX pipe. Apollo ExpansionPEX is the most flexible PEX pipe available. Apollo ExpansionPEX Pipe provides superior durability, corrosion resistance and flexibility for the most demanding environments. Apollo ExpansionPEX is available with red, white and blue print lines for the simple identification of cold water, hot water and main water lines. The Apollo ExpansionPEX system is a comprehensive cold expansion piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.
- Pipe is opaque in color with a blue print line for easy identification of cold-water distribution lines within a piping system
- Apollo ExpansionPEX pipe is compatible with both expansion and crimp, clamp or sleeve methods of joining
- Compatible with Tectite by Apollo push-to-connect fittings
- Meets or exceeds the following standards: ASTM F876, F877, F1807, F1960, F2023, F2080 and F2159
- Heat-reparable if kinked during installation thus further eliminating additional repair connections
- Shape memory inherent in PEX-A tubing results in the shrinking of expanded pipe to normal size, creating strong, durable and reliable ASTM F1960 fitting connections
- Maximum cross-linking increases flexibility and resistance to cracking
- Available in a variety of lengths including 100 ft. and 300 ft. coils
- cNSFus-pw
- CSA B137.8
- California residents
Info & Guides
Product Overview
- Superior flexibility allows for fewer joints and leak points
- Full-flow design for maximum water output
- Less coil memory than regular PEX pipe thus resists recoiling
Compare Similar PEX Pipe
| |  |  | |
| Brand | Apollo | Apollo | Apollo | The Plumber's Choice |
| Name | 1/2 in. x 300 ft. Blue PEX-A Expansion Pipe | 1/2 in x 300 ft. Red PEX-A Expansion Pipe | 1 in. x 100 ft. Red PEX-A Pipe in Solid | 1/2 in. x 500 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red |
| Price | $10194 | $10821 | $12600 | $15898 |
| Ratings | (18) | (5) | (56) | (2) |
| Nominal Inside Pipe Diameter (In.) | 1/2" | 1/2" | 1" | 1/2" |
| PEX Type | A | A | A | B |
| Product Length (ft.) | 300 | 300 | 100 | 500 |
| Connectivity | Barb | Barb | Barb | Barb |
| Pipe Features | Corrosion Resistant,Ductile,Flexible | Corrosion Resistant,Ductile,Flexible | Corrosion Resistant,Ductile,Flexible | Corrosion Resistant |
| Actual outside diameter (in.) | .625 | .625 | 1.125 | 0.625 |
| Application | Potable Water | Potable Water | Potable Water | Hydroponics,Non-Potable Water |
| Material | Cross-Linked Polyethylene (PEX) | Cross-Linked Polyethylene (PEX) | Cross-Linked Polyethylene (PEX) | Cross-Linked Polyethylene (PEX) |
| Pack Size | 1 | 1 | 1 | 1 |
| View Product | View Product | View Product | View Product |
Compare Similar PEX Pipe
| | | | |
| Brand | Apollo | Apollo | Apollo | The Plumber's Choice |
| Name | 1/2 in. x 300 ft. Blue PEX-A Expansion Pipe | 1/2 in x 300 ft. Red PEX-A Expansion Pipe | 1 in. x 100 ft. Red PEX-A Pipe in Solid | 1/2 in. x 500 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red |
| Price | $10194 | $10821 | $12600 | $15898 |
| Ratings | (18) | (5) | (56) | (2) |
| Nominal Inside Pipe Diameter (In.) | ||||
| PEX Type | ||||
| Product Length (ft.) | ||||
| Connectivity | ||||
| Pipe Features | ||||
| Actual outside diameter (in.) | ||||
| Application | ||||
| Material | ||||
| Pack Size | ||||
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Actual inside diameter (in.)
0.475
Actual outside diameter (in.)
.625
Nominal Inside Pipe Diameter (In.)
1/2"
Pipe Wall Thickness (In.)
0.075
Product Length (ft.)
300
Details
Application
Potable Water
Color Family
Blue
Color/Finish
Blue
Connectivity
Barb
Material
Cross-Linked Polyethylene (PEX)
Maximum Flow Rate (gallons per minute)
2.3
Maximum working pressure (psi)
160
Maximum Working Temperature (F)
200
Minimum working temperature (F)
32
Pack Size
1
PEX Type
A
Pipe Features
Corrosion Resistant,Ductile,Flexible
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
16.1
Returnable
180-Day
Warranty / Certifications
Certifications and Listings
ASTM Compliant,NSF Listed
Manufacturer Warranty
25 Years: For exclusive use with ASTM F1960 fittings.
Questions & Answers
13Questions8Answers
can it be used as supply line from meter to house
Asked by ray December 3, 20200
AnswersCan this pipe be connected with crimp rings or does this pipe require the expansion connection?
Asked by Dave January 8, 20201
AnswerApollo PEX-A pipe is dual rated for use with copper crimp rings/stainless steel pinch clamps, or expansion sleeves. The pipe that you are referring to may be used with either.
Can you use this for compressed air?
Asked by Don June 6, 20191
AnswerNo, this PEX pipe is designed and certified exclusively for use in water applications. We cannot recommend the use of PEX for compressed air, and our manufacturer warranty does not apply in that case.
Can this be used with PEX compression fittings, or must expansion fittings be used?
Asked by pscarbor May 24, 20191
AnswerThis pipe carries all of the certifications for both PEX-A and PEX-B pipe so you may use PEX-specific compression fittings with this tubing,
Can this be used on outdoor ponds?
Asked by Robert April 30, 20191
AnswerNo, the pipe cannot be used on outdoor ponds.
What is the difference between blue&bred versus white?
Asked by Fred February 25, 20191
AnswerAll of the pipe in this system is exactly the same other than the color used to print our line of text along the pipe. You may use them interchangeably--we just have different colors so that you may easily identify hot water and cold water lines visually.
can I run a hot water recirculating pump with pex a expansion pipe
Asked by lex December 11, 20180
AnswersI'm buying the type A expansion tools, tubing and the rings that go with it. I'm very new to this...
Asked by Steve July 4, 20180
Answerscan sharkbite fittings be used with pipe?
Asked by Brokenpipe April 15, 20182
AnswersYes they can but the expansion sleeve is as easy as the push fitting if you have the tool
can this product be buried below ground
Asked by howard March 9, 20181
AnswerYes, Apollo Expansion PEX tubing is approved for direct burial outdoors. Apollo ExpansionPEX, with it's superior expansion properties, resists freezing more effectively than rigid pipe, but it can still burst if the water freezes. It is neccssary to bury the tubing below the frost line. Although an unbroken line of Apollo ExpansionPEX would be ideal, connecting two pieces of pipe is possible using dezincification-resistant brass PEX fittings or plastic PEX fittings in regions where aggressive water or soil are present.
Customer Reviews
Jan 27, 2020
These are not 100 foot rolls. They are about 65 ft max. I have 2 - 75 foot trenches that came u...
These are not 100 foot rolls. They are about 65 ft max. I have 2 - 75 foot trenches that came up short because of this and I had to buy extra and also put in joints I didn't want to have. So, I feel this is pretty significant issue. Yes, I got all the coil out. Yes, it was laying flat. These are no where near 100 feet long.
The quality of the pipe does appear to be good.
by Dave
Sep 18, 2019
It’s a PEX pipe.. they are all basically the same.....
It’s a PEX pipe.. they are all basically the same.. keep them out of the sun and they can have a longer life than copper at a much lower cost. Very easy to use with a small investment in some quality tools.One negative is that it is a little unnerving to be able to see through your water pipes.
by Patrick
