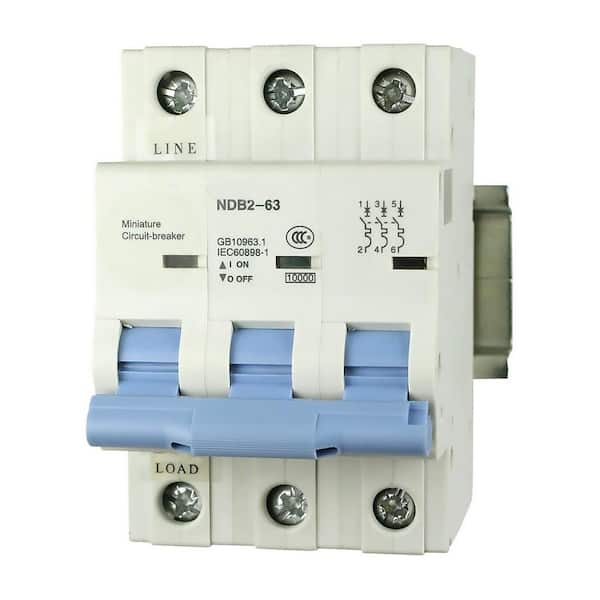

3 Pole, 16 Amp, 480-Volt AC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 52 mm W, UL1077
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
NDB2-63C16-3 is a DIN rail circuit breaker, MCB mini circuit breaker, 16 Amp MCB, 3-pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480-Volt AC circuits. Features include DIN rail mounting, visual LED indication when tripped, C trip curve for typical inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations. RoHS compliant and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077, TUV, CE, CCC.
Highlights
- 3-pole
- 16 Amp, 480-Volt AC
- Trip curve: C
- Din rail mount-miniature circuit breaker
- 52 mm W
- UL1077
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions
Product Depth (in.) | 2.05 in |
|---|---|
Product Width (in.) | 3.19 in |
Details
AIC Rating | 10 |
|---|---|
Breaker Type | Standard |
Connection Type | Non-Neutral |
Interruption Type | Standard Trip |
Maximum Amperage (A) | 16 A |
Mounting Type | Din Rail |
Number of Poles | Triple |
Number of Spaces | 1 |
Pack Size | 1 |
Power Distribution Features | Trip Indicator |
Returnable | 90-Day |
Series Type | Not Specified |
Trip Unit | No Trip Unit |
Voltage (V) | 480 V |
Warranty / Certifications
Certifications and Listings | TUV Listed, UL Listed |
|---|---|
Manufacturer Warranty | 1 Year Limited Warranty |
Questions & Answers
Typical questions asked about products:
- Is the product durable?
- Is the product easy to use?
- What are the dimensions of the product?
Customer Reviews
Customer Reviews
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for industrial applications, this 3-pole DIN rail circuit breaker provides reliable overload and short circuit protection in 480V AC circuits, ensuring safety and efficiency. | Ideal for customers who want to upgrade existing panels, ensuring code compliance and flexibility. | Ideal for typical inductive loads , this circuit breaker provides overload and short circuit protection for enhanced safety . A great choice for those who need a reliable circuit breaker without compromising on quality .. | Ideal for industrial applications, this DIN rail circuit breaker offers 63 Amp, 480V protection. Features overload and short circuit protection ensuring reliable performance. |
Maximum Amperage | |||
16 A | 30 Amp | 40 A | 63 A |
Number of Poles | |||
Triple | Quad | 3 | 3 |
Trip Curve | |||
C | Standard Trip | C | C |
Interrupting Rating | |||
10kA | 10, 000 Amp | 10kA | 10kA |
Voltage Rating | |||
480 V | 240 Volt | 480-Volt AC | 480 V |
