12,000 BTU 20.5 SEER2 Ductless Mini Split Air Conditioner with Heat Pump Wi-Fi 115-Volt
- BHI 12000 BTU 115 Volt 20.5 SEER2 mini split wifi 16.4ft lineset
- DC inverter compressor can optimize cooling and heating
- Wi-Fi control - AC can control or schedule from Smart phone
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The BHI mini split AC ductless heat pump with Wi-Fi Control is the air comfort system you need to ensure your home stays comfortable, cool, and cost effective for as long as you desire. This high-quality ductless heat pump is energy efficient, packed with great features, and priced to meet most household budgets and Specially Outdoor Unit has "Heating Belt" that works by temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when higher than 32°F (0°C) degree, would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use BHI Mini Split AC at cold temperature areas. If you need targeted air comfort for a single zone in your home or need more general air conditioning, variable speed compressor energy efficient performance ensures an BHI operates both effectively and affordable. BHI mini split series ductless heat pump should be exactly what you've been searching for.
Highlights
- 12,000 BTU 115-Volt ductless mini split air conditioner with heat pump, Wi-Fi control, 20.5 SEER2, 1 ton, 16.4ft lineset, wall-mount, cover up to 600 sq. ft.
- Wi-Fi control: easy to control the air conditioner in the house via smart device
- Outdoor Unit has "Heating Belt" that works by Temperature Sensor, if temperature lower than 32°F (0°C), it would start to heat and when higher than 32°F (0°C), it would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use at cold temperature areas.
- I-set: automatically memorize your preferences settings
- I-feel: the temperature sensor built in the remote controller can sense the surrounding temperature, so the unit can adjust room temperature more accurately and make you more comfort
- Self-cleaning: 122°F - 131°F (50°C - 55 ℃) quick-drying and sterilization
- 4-way air flow: vertical/horizontal auto swing
- Sleep mode: keep you away from an under-cooling or over-heating sleep
- ECO mode: the air-con cools the room much faster and then operates at low frequency but keeps the desired temperature
- Louver position memory: the louver will be restored to the previous position when the unit is restarted
- Easy-clean filter: the filter can be easy to be dismantled and cleaned to guarantee a healthy indoor environment
- Included indoor unit and outdoor unit, installation kits included
- Pre-charged with R-454B Refrigerant
- Not included Power Cable
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Air handler depth (in.) | 8.07 |
|---|---|
Air handler height (in.) | 11.49 |
Air handler width (in.) | 31.92 |
Condenser depth (in.) | 12.0 |
Condenser height (in.) | 21.65 |
Condenser width (in.) | 28.66 |
Details
Air Handler BTU | 12000 BTU |
|---|---|
Air handler weight (lb.) | 19.84 |
Amperage (A) | 10.1 A |
BTU Cooling Rating | 12000 BTU |
BTU Heat Rating | 12000 BTU |
Condenser weight (lb.) | 65.03 |
Coverage Area (sq. ft.) | 600 |
Decibel (Sound) Rating | 40 dBA |
Decibel Rating | 40 dBA |
Filter Type | Mesh |
Included | Heater, Remote Control |
Line Set Length (Ft.) | 16 ft |
Mini Split Features | Auto cool, Fan only option, Mobile App, Overload protection, Sleep setting, Timer, Wifi |
Minimum Outdoor Temperature (F) | 5 |
Mount Location | Wall Mount |
Number of Tons | 1 ton |
Refrigerant Compatibility | R-454B |
Returnable | 90-Day |
Voltage (v) | 115v |
Wattage (watts) | 1140 |
Zone Capacity | 1 Zone |
Warranty / Certifications
Manufacturer Warranty | 5 YEARS COMPRESSOR & 1 YEAR PARTS |
|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 2 |
Seasonal Energy Efficiency Ratio 2 (SEER 2) | 20.5 |
Questions & Answers
does it have a surge protector
The unit has built-in voltage protection, but for surge protection, we recommend using an external surge protector.
How do I purchase the power cable, as it's not included?
The power cable is not included. Please purchase a 14-gauge, 20A cable locally as needed.
Will need vaccum pump for installation?
Yes, it's pre-charged with R-410A refrigerant and requires a vacuum pump for installation. We recommend hiring a licensed installer for installation.
What is the EER rating on this system
The EER will be 12000/1140 = 10.5
What's the lowest operating temperature for the outside unit? I live in IL where it can (and has) well below freezing - 20 below and up.
Dear Customer, Working temperature will be between 5�F (-15�C) ~ 126� (52�C), when outside temp. below 32�F (0�C), then "Heat Belt" on the Outside unit will start working automatically to prevent any freezing condition, and will keep running Thank you
The lowest operating temperature for heating is -4? (-20�C). And for cooling the lowest operating temperature is 59?(15�C)
Does this mini split comes with everything needed To install an start working? I don’t want to have to go back to store for additional items.
Yes, it comes with everything for installation unless you need to do some modifications.
No. It does not include the main power cord
Can you control unit via wifi from second home?
I believe you can control the unit from where there is WIFI as it is done through the phone.
I have an installation that will need a shorter line. How much can I cut off of the lines without worrying about the system being over full.
There shouldn't be limitation for that as long as it can be connected.
Viewing 1-8 of 14
Customer Reviews
4.9 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for homeowners looking for efficient cooling and heating, making temperature control easier with Wi-Fi connectivity. | Ideal for homeowners who want efficient, smart Wi-Fi control, and powerful cooling/heating. | Ideal for customers wanting smart Wi-Fi control and efficient heating/cooling, ensuring year-round comfort. | Ideal for customers who want smart Wi-Fi control and efficient heating/cooling, ensuring year-round comfort. |
Cooling Capacity | |||
12000 BTU | 18000 BTU | 18000 BTU | 18000 BTU |
Heating Capacity | |||
12000 BTU | 18000 BTU | 18000 BTU | 18000 BTU |
Number of Zones | |||
1 Zone | 1 Zone | 1 Zone | 1 zone |
SEER Rating | |||
20 | 18.1 SEER2 | 18.1 SEER2 | 20 SEER2 |
Wi-Fi Enabled | |||
Related Products
12,000 BTU 115-Volt, 17 SEER2, 600 sq. ft. Ductless Mini Split Air Conditioner with Heat Pump, 16.4 ft. (5m) Lineset
The BHI mini split AC ductless heat pump is the air comfort system you need to ensure your home stays comfortable, cool and cost effective for as long as you desire. This high-quality ductless A/C with heat pump is energy efficient, packed with great features and priced to meet most household budgets and Specially Outdoor Unit has Heating Belt that works by the temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when over than 32°F (0°C) degree, would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use BHI Mini Split AC at cold temperature areas. If you need targeted air comfort for a single zone in your home or need more general air conditioning, variable speed compressor energy efficient performance ensures an BHI operates both effectively and affordable. BHI mini split series ductless heat pump should be exactly what you've been searching for.
18,000 BTU 230-Volt 18.1 SEER2 1000 sq. ft. Ductless Inverter Wi-Fi Mini Split Air Conditioner, Heat Pump 12 ft. Lineset
The Apollo Ductless Inverter Mini Split AC with Heat Pump is the air comfort system you need to ensure your home stays comfortable, cool, and cost effective for as long as you desire. This high-quality ductless A/C with heat pump is energy efficient, packed with great features, and priced to meet most household budgets and Specially Outdoor Unit has Heating Belt that works by the temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when over than 32°F (0°C) degree, would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use Apollo Mini Split AC at cold temperature areas. If you need targeted air comfort for a single zone in your home or need more general air conditioning, variable speed compressor energy efficient performance ensures an Apollo operation both effectively and affordable. Apollo mini split series ductless heat pump should be exactly what you've been searching for.

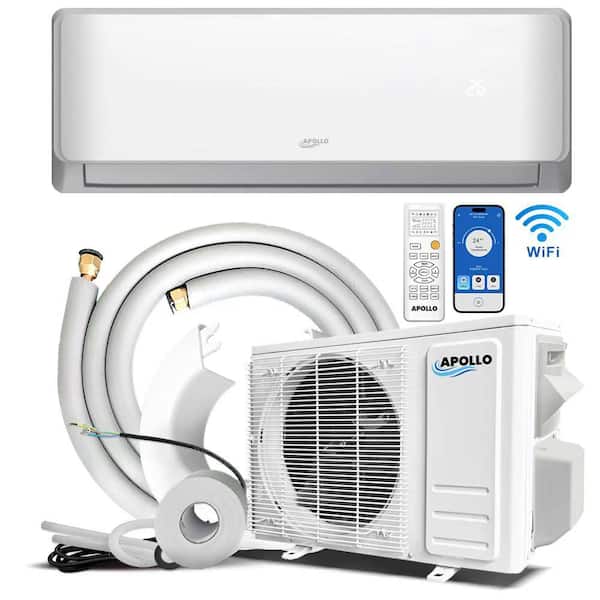

18000 BTU 230 Volt 18.1 SEER21000 sq. ft. Ductless Inverter Wi-Fi Mini Split Air Conditioner & Heat Pump 25 ft. Lineset
