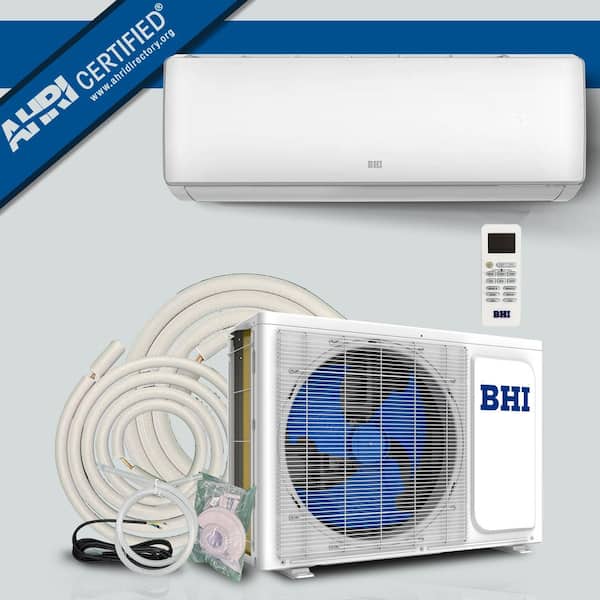

36,000 BTU 230-Volt, 17 SEER2 1800-sq. ft. Inverter Ductless Mini Split Air Conditioner with Heat Pump, 16.4 ft. Lineset
- Energy efficient DC inverter for high-frequency operation
- Sleep mode prevents undercooling or overheating sleep
- Easy to clean filter ensures a healthy indoor environment
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The BHI mini split AC ductless heat pump is the air comfort system you need to ensure your home stays comfortable, cool and cost effective for as long as you desire. This high-quality ductless A/C with heat pump is energy efficient, packed with great features and priced to meet most household budgets and Specially Outdoor Unit has Heating Belt that works by the temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when over than 32°F (0°C) degree, would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use BHI Mini Split AC at cold temperature areas. If you need targeted air comfort for a single zone in your home or need more general air conditioning, variable speed compressor energy efficient performance ensures an BHI operates both effectively and affordable. BHI mini split series ductless heat pump should be exactly what you've been searching for.
Highlights
- BHI 36,000 BTU 230-Volt, 17 SEER2, 1800-sq. ft. inverter ductless mini split air conditioner with heat pump, 3-ton, 16.4 ft. (5 m) lineset, wall mount, R-32
- Outdoor unit has heating belt that works by temp, sensor, if lower than 32°F (0°C), will start to heat and if higher than 32°F (0°C), will stop working to ensure outdoor unit doesn't freeze, it's a great feature to use at lower temp areas
- DC inverter: BHI dc inverter air conditioner has wide range frequency conversion, cooling and heating, after turning on, it can make the compressor and turbo into the high-frequency operation to achieve maximum operation speed and instantly reach the maximum input cooling and heating volume
- I-set: automatically memorize your preferences settings
- I-feel: the temperature sensor built-in the remote controller can sense the surrounding temperature, so the unit can adjust room temperature more accurately and make you more comfort
- Louver position memory the louver will be restored to the previous position when the unit is restarted
- Eco mode: the air-con cools the room much faster and then operates at low frequency
- 4-way air flow-vertical horizontal auto swing and self-cleaning-quick-drying and sterilization
- Sleep mode: keep you away from an under-cooling or over-heating sleep
- Easy-clean filter the filter can be easy to be dismantled and cleaned to guarantee a healthy indoor environment
- Working temperature range: 5°F or 125°F (minus 15°C or 52°C)
- Pre-charged with R-32 refrigerant
- Limited warranty: 1-year for parts/accessory and 5-year for compressor
- Not included power cable
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Air handler depth (in.) | 16.92 |
|---|---|
Air handler height (in.) | 12.91 |
Air handler width (in.) | 49.6 |
Condenser depth (in.) | 18.89 |
Condenser height (in.) | 32.87 |
Condenser width (in.) | 40.23 |
Details
Air Handler BTU | 36000 BTU |
|---|---|
Air handler weight (lb.) | 46.3 |
Amperage (A) | 14.6 A |
BTU Cooling Rating | 36000 BTU |
BTU Heat Rating | 36000 BTU |
Condenser weight (lb.) | 120.2 |
Coverage Area (sq. ft.) | 1800 |
Decibel (Sound) Rating | 46 dBA |
Decibel Rating | 46 dBA |
Filter Type | Washable |
Included | Accessories, Heater, Remote Control |
Line Set Length (Ft.) | 16.4 ft |
Mini Split Features | Auto cool, Automatic shutoff, Defrost, Ductless, Fan only option, Filter light reminder, Heat strip, Overload protection, Sleep setting, Timer |
Minimum Outdoor Temperature (F) | 5 |
Mount Location | Wall Mount |
Number of Tons | 3 ton |
Refrigerant Compatibility | R-32 |
Returnable | 90-Day |
Voltage (v) | 230v |
Wattage (watts) | 3450 |
Zone Capacity | 1 Zone |
Warranty / Certifications
Manufacturer Warranty | 1-Year for Parts & 5-Year for Compressor |
|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 9.5 |
Seasonal Energy Efficiency Ratio 2 (SEER 2) | 17 |
Questions & Answers
What circuit breaker and plug does it need ?
Viewing 1-1 of 1
Customer Reviews
5 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for customers who want efficient, quiet cooling and heating for a single zone. | Ideal for homeowners looking for Wi-Fi control, making temperature management easier. | Ideal for homeowners wanting efficient, powerful cooling/heating, ensuring comfort. | Ideal for large spaces needing powerful, energy-efficient cooling and heating with sleek design. |
Cooling Capacity | |||
36000 BTU | 36000 BTU | 36000 BTU | 33600 BTU |
Heating Capacity | |||
36000 BTU | 36000 BTU | 36000 BTU | 34000 BTU |
Number of Zones | |||
1 Zone | 1 | 1 Zone | 1 |
SEER Rating | |||
17 SEER2 | 17 | 17 SEER2 | 21 |
Wi-Fi Enabled | |||
Related Products
36,000 BTU 230-Volt, 17 SEER2, 1800-sq. ft. Inverter Ductless Mini Split Air Conditioner with Heat Pump, 25 ft. Lineset
The BHI Inverter mini split AC ductless heat pump is the air comfort system you need to ensure your home stays comfortable, cool and cost effective for as long as you desire. This high-quality ductless A/C with heat pump is energy efficient, packed with great features and priced to meet most household budgets and Specially Outdoor Unit has Heating Belt that works by the temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when over than 32°F (0°C) degree, would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use BHI Mini Split AC at cold temperature areas. If you need targeted air comfort for a single zone in your home or need more general air conditioning, variable speed compressor energy efficient performance ensures an BHI operates both effectively and affordable. BHI mini split series ductless heat pump should be exactly what you've been searching for.
36,000 BTU 230-Volt 17 SEER2 1800 sq. ft. Inverter Wifi Ductless Mini Split Air Conditioner w/Heat Pump 16.4 ft. Lineset
The BHI Inverter Wi-Fi mini split AC ductless heat pump is the air comfort system you need to ensure your home stays comfortable, cool and cost effective for as long as you desire. This high-quality ductless A/C with heat pump is energy efficient, packed with great features and priced to meet most household budgets and Specially Outdoor Unit has Heating Belt that works by the temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when over than 32°F (0°C) degree, would stop working automatically to ensure that Outdoor Unit does not freeze, it's a great feature to use BHI Mini Split AC at cold temperature areas. If you need targeted air comfort for a single zone in your home or need more general air conditioning, variable speed compressor energy efficient performance ensures an BHI operates both effectively and affordable. BHI mini split series ductless heat pump should be exactly what you've been searching for.
24,000 BTU 18.5 SEER2, 230-Volt,1200-SqFt Inverter Wi-Fi Ductless Mini Split Air Conditioner with Heat Pump,16Ft Lineset
AproDr Inverter Ductless Wi-Fi Mini Split Air Conditioner is designed to make your days better with its efficient performance. Our ductless inverter system eliminates the use of ductwork, making it easier to install while bringing effective heating and cooling to your living space. Moreover, our durable and stylish indoor unit with a sleek, flat front panel seamlessly blends into your interior decor.

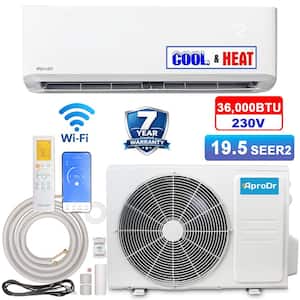

36,000 BTU 19.5 SEER2, 230-Volt,1800-SqFt Inverter Wi-Fi Ductless Mini Split Air Conditioner with Heat Pump,16Ft Lineset
