Bulldog Xtreme 1/2 in. x 4 in. x 6 in. SDS-Plus Carbide Rotary Hammer Drill Bit

  • 100% carbide tip for longer life in concrete, concrete with rebar
  • Bits for SDS-plus hammers have variable flute design for speed
  • Up to 25% more holes per charge, with wear mark for precision
  • See More Details

Frequently Bought Together

+
+
Price:
$1097

Product Overview

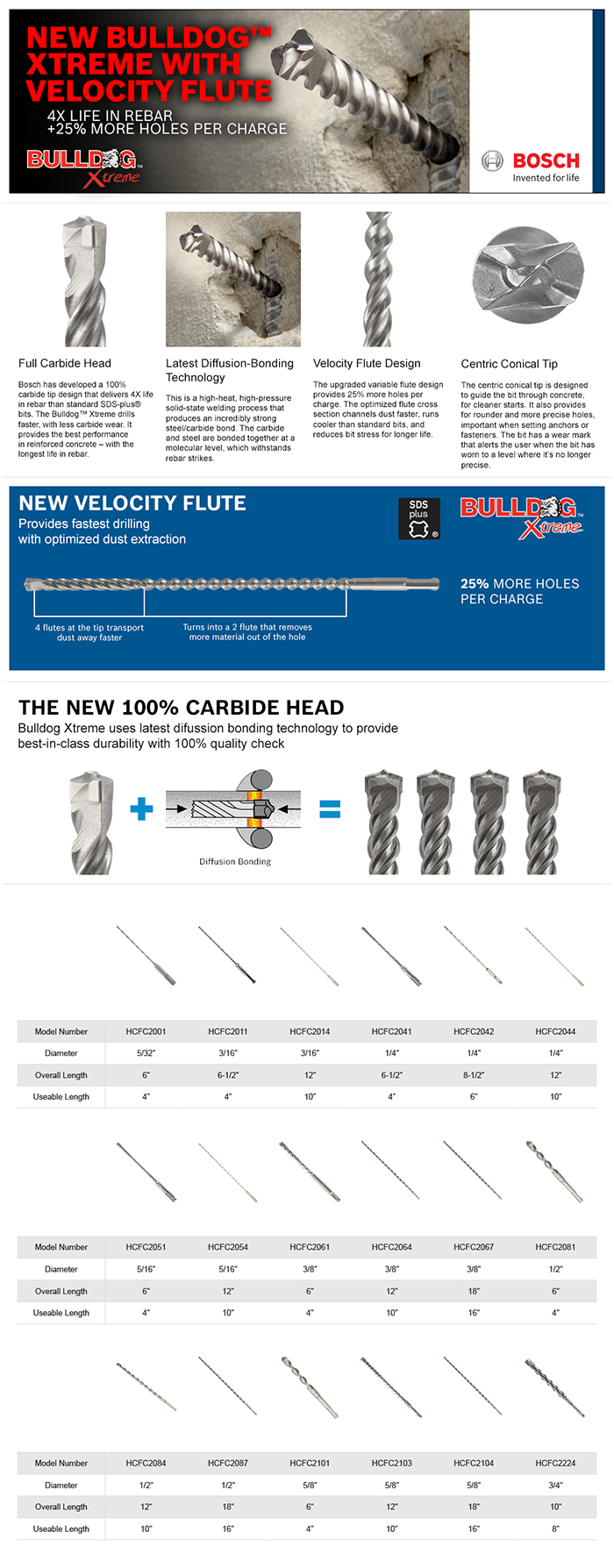

Bosch Bulldog Xtreme bit close up

Bosch Bulldog Xtreme Bits

The longest-lasting bit in concrete with rebar, with 100% carbide-tip design and diffusion-bonding technology.

Drilling into wet concrete with Bosch tool and bit

Designed for Professional Users

This SDS-plus bit represents Bosch's commitment to quality and value.

Bosch tools being used on construction site drilling into concrete

Last Longer in Reinforced Concrete

In internal testing, these bits delivered 4X life in concrete with rebar than a standard SDS-plus bit.

Close up of Bosch full head carbide tip

Full Carbide Head

4 cutter design, and complete carbide head provides 5X LIFE in rebar.

Drilling into concrete with Bosch tools and bit

Large Flute Volume

Fast drilling, dust transport and less clogging.

Product image of Bosch Bulldog Xtreme bit

Diffusion-Bonding

For high-stress and heat resistance, for longer life.

Close up of Bulldog Xtreme bit flute

4-Flute Design

For fast dust removal and high drilling speed.

Speed dial icon

Velocity Flute

Four flutes near the bit tip transition to two flutes for fast drilling.

Dust cloud icon

Material Removal

Four-to-two flute design removes a larger amount of material from the hole.

Bit tip icon

100% Carbide Tip

Bosch's quality carbide helps provide 4x life in reinforced concrete.

Target icon

Centric Conical Tip

The centric conical tip for rounder holes for precision-anchoring applications.

Strong arm icon

Diffusion Bond

Diffusion bonding produces a carbide and steel bond at a molecular level.

SDS-plus icon

SDS-plus Shank

The SDS-plus® system is the shank of choice for many concrete professionals.

4X life in rebar and 40% more life in concrete than competitive full-head carbide bits. Optimized for heavy-duty rotary hammers. Less carbide wear than 2-cutter means end user is more productive with each bit. No jamming when hitting rebar.
  • 100% carbide tip design for longest life
  • Diffusion bonding technology provides strongest carbide bond
  • Delivers 4X life in all concrete types and concrete with rebar
  • Variable flute design provides 25% more holes per charge
  • Wear mark assures hole-diameter tolerance for anchoring applications
  • Centric conical tip design for precise hole diameters
  • SDS-plus shank

Specifications

Dimensions

Assembled Depth (in.)
0.83 in
Assembled Height (in.)
10.25 in
Assembled Width (in.)
1.75 in
Bit Diameter
1/2 in
Bit Length (in.)
6
Shank Diameter
3/8 in

Details

Bit Material
Carbide
Drill Bit Type(s) Included
Percussion Bit
Individual/Set
Individual
Material Application
Brick,Concrete
Returnable
180-Day
Self-Feeding
No
Shank Style
SDS Plus

Questions & Answers

10Questions26Answers

can this bit work on a regular drill - non-hammer drill?

Asked by TheKid July 5, 2018
5
Answers

Yes, if the chuck opens wide enough. It might bugger up the SDS end for future use though.

does this bit fit the HILTI hammer drill?

Asked by james April 9, 2014
4
Answers

yes

how do i keep an outside door from swelling?

Asked by HOSS March 25, 2015
3
Answers

We first have to look at the material or type of wood that was used to build the door. If the door is well installed and we give it the treatment it needs and then we paint it, it should not inflate. tip if the door is already inlaid we remove it we fix the door frame well. Then we start working with the door where it is colliding we can pass an electric brush as soon as it is fixed we pass it sandy sealer then the desired tint and then the varnish or paint.

If the bit hits aluminum will it ruin the bit instantly

Asked by BKing June 1, 2020
3
Answers

yes, we can pass aluminum and metal at low speed. I am an electrician for more than 30 years I have passed the electrical panel boxes either aluminum or metal and then I pass the cement without fear of the bit being damaged.

I have to drill several holes in a terrazzo floor is this the drill for the job or would the Dare...

Asked by Will February 24, 2020
3
Answers

This bit requires a SDS Plus rotary hammer, which will eat through concrete like butter. A regular hammer drill won’t accept this type of bit. If you have a regular hammer drill you must use the tungsten carbide. A hammer drill will take much longer to drill the hole.

Ok to use with hammer drill (non-SDS) ?

Asked by kharma May 16, 2019
2
Answers

No, has sds shaft. Cant get tight lock on shaft

Are any of the drill bits for the 8.5 amp bulldog extreme max good for drilling into rock. Your ...

Asked by Pete September 14, 2017
2
Answers

Bulldog really only large enough for smaller holes in concrete, brick, sandstone, etc. Not very efficient drilling in igneous rock or aggregate product. U need to upgrade your drill to bosch max with a spline shaft drill bit. U can rent them if necessary, cost btwn $380 to $420 and bits are $50, should use a 4 point carbide tip for better cutting.

Will it drill marble

Asked by Sam October 15, 2019
2
Answers

The HCFC2051 drill bit is designed for an SD-plus Rotary Hammer. It is ideal to drill into masonry or concrete with rebar. You may use a diamond hole saw for your application, which you can find here https://www.boschtools.com/us/en/boschtools-ocs/diamond-hole-saws-22533-c/. For further assistance, contact us at 1-877-BOSCH99 (1-877-267-2499) from Mon-Fri 7A-7P CST.

Maximum Operating RPM?

Asked by Walt October 8, 2015
1
Answer

Thank you for your question. The maximum operating speed for this bit is 1,300 rpms.

Will this bit work in my older SDS Bulldog Supreme (not a plus model)

Asked by Trish November 16, 2015
1
Answer

Thank you for your question. The SDS-Plus bits will work with any of our SDS Plus rotary hammer or the old style SDS hammers. They will not work with the large SDS-Max hammers. All of the Bulldog models will accept SDS-Plus.

Bulldog Xtreme 1/2 in. x 4 in. x 6 in. SDS-Plus Carbide Rotary Hammer Drill Bit - page 2

Customer Reviews

  • 415 Customer Reviews
  • 4.3 out of 5 stars overall
84% of customers recommended.
Overall Ratings
5star-icon(284)
4star-icon(58)
3star-icon(21)
2star-icon(13)
1star-icon(39)
Sort By:
keeps drilling despite wear
I’m using it for slab demo. Chasing existing cracks. Works well even if though its badly wore out. Ill keep using them.
Was this helpful?
1
0
We used the bit I a add plus hammer drill...
We used the bit I a add plus hammer drill and used it to strap our water lines against concrete and cinderblocks
Was this helpful?
1
0
A nice masonry bit that worked well for me. BACKGROUND: I use TAPCON screws when I work masonry ...
Quality :
5
Value :
5
Seeds Program Review
(What's this)
A nice masonry bit that worked well for me. BACKGROUND: I use TAPCON screws when I work masonry projects. With an SDS hammer drill a good bit can make a clean hole quickly. I have Bosch bits, but this was my first SDS bit. FIT AND FINISH: Clean and functional in appearance the Bulldog bit looks like it’s ready to go. OPERATION: I installed the bit in my DeWalt hammer drill and drilled a few test holes. One in firebrick and two in a concrete anchor block. The bit broke the firebrick, but that was my fault as it was a small piece and unsupported. In the concrete anchor the bit drilled a 1 ½” deep hole with no problems. The bit removed the debris from the hole well and the hole itself was clean with minimal chip-out at the entrance. I use the bit to install a handrail to my side stairs for 6 TAPCON screws. It drilled into both the mortar and the brick with minimal problem and the screws drove in perfectly. SUMMARY: A good bit that met my need perfectly. A welcome addition to my TAPCON toolbox.
Was this helpful?
0
0
Quality :
5
Value :
5
Seeds Program Review
(What's this)
This SDS bit is a good example of newer bit tip technology. First SDS is a mounting system for rotary hammer drill systems, for cement , stone type surfaces. SDS mount is a spring loaded type chuck which allows for a simple insertion into the drill chuck . There is no need for having to tighten the chuck to the bit. You will se this type of mount on most rotor hammers , chisel type drills. The Bosch bit here is a SDS mount Bulldog Xtream SDS plus , the biggest thing I can see is the tip has an extra cuting edge perpendicular to the stone cutting edge. The claim is for it to be able to drill Soft steel embedded in concrete. The Plus is industry wording for heavy duty. Off to the races I tried a basic hole for a fastener in sander block worked effortlessly in hammer mode, no better then other brands in my box. I tried to also drill a hole out of hammer mode , because of its size not an issue. I did like this as with other bits I've had a hard time starting the hole. Very useful if your drilling Soft natural stone that could crack , with out the hammer the it didn't crack. I tried going thru rebar with mixed results in the hammer mode the bit really went around the rebar not leaving a bent bit but not cutting the bar either . I also tried once I hit the rebar switching to regular drill mode and it did cut through the metal , not great but did work. Of course I knew where the rebar was which most cases in the field you don't . The bit was still usable after this too. Not sure this bit is any better then other high end name brands but work equally as good. Is the Plus any better then regular SDS maybe in the hardness of the bit material and how much your doing with the bit. Most smaller diameters for light work load probably the plus is overkill but I guess if you want a bit in you arsenal that will be there for you in duration it's a good idea .
Was this helpful?
1
0
German engineering at its best! This drill bit is probably the best you can buy. It is claimed to...
Quality :
5
Value :
5
Seeds Program Review
(What's this)
German engineering at its best! This drill bit is probably the best you can buy. It is claimed to have 4x the life of regular bits. It is designed for drilling through concrete even if there is a chance of hitting rebar. The SDS plus fitting fastened firmly into my Milwaukee SDS hammer drill and came out easily when I was finished too. The tip has what looks like some special shape to aid drilling. It removed easily from the packaging. Rated for 1300 RPM maximum speed. Made in Germany!
Was this helpful?
1
0
Harrison, AR
Works great in concrete
Quality :
4
Value :
3
This bit worked great in concrete, but not so good when it hit rebar. Had to change bits for rebar, and change back this to finish the job.
Was this helpful?
4
0
Home owner from Boston
I CAN'T BELIEVE HOW WELL THIS CUTS GRANITE ... AND KEEPS ON CUTTING GRANITE!
Quality :
5
Value :
5
I've cut about 50 holes so far in granite blocks and curbing, as well as in "fieldstone" for splitting. The drill show no sign of slowing down. I don't use any pressure at all. I just let the hammer drill action and the bit do all the work. Effortless! I just bought a 10" version because I liked this so much and needed something longer for stones, which don't cleave as nicely as granite block. I could not be happier with this bit.
