Gen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 Hz

$159944
/bundle
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Energy Star 20.7 SEER for super low cost operation
  • Reknowned Bosch quality for easy of servicing and quiet operation
  • Equipment should be sized/installed by a licensed professional
  • View More Details
How to Get It

Frequently Bought Together

+
+
Price:
$159944

Product Overview

The Bosch Gen 2 Climate Ductless Mini Split Series provides energy-efficient, on-demand comfort that is flexible, simple to install and easy to maintain. An exceptional alternative to traditional HVAC systems, mini splits heat and cool individual rooms by utilizing a combination of efficient technologies to lower electricity usage and decrease your electric bill. The mini split system is ideal for spaces where ductwork will not fit or is overly costly including additions, renovations and enclosed patios. The system is comprised of 3-parts, the indoor air handler, an outdoor condensing section and the piping line set. The main units are connected by the electrical, refrigerant and condensate piping line set through a 3 in. Dia hole in an exterior wall. The outdoor unit is charged with enough refrigerant to charge up to 35 ft. of line set.
  • 12,000 BTU cooling and 12,000 BTU heating for powerful temperature control
  • 600 sq. ft. cooling and heating coverage for comfortable living
  • 3-speed fans adjusts to your particular heating or cooling needs
  • Timer and sleep mode allow you to custom program your settings
  • Digital display for precise temperature control
  • Follow me function on remote transmits actual temperature back to unit for exact temperature control
  • Easy to clean filter removes from top of air handler
  • ENERGY STAR certified for greater efficiency and lower energy costs

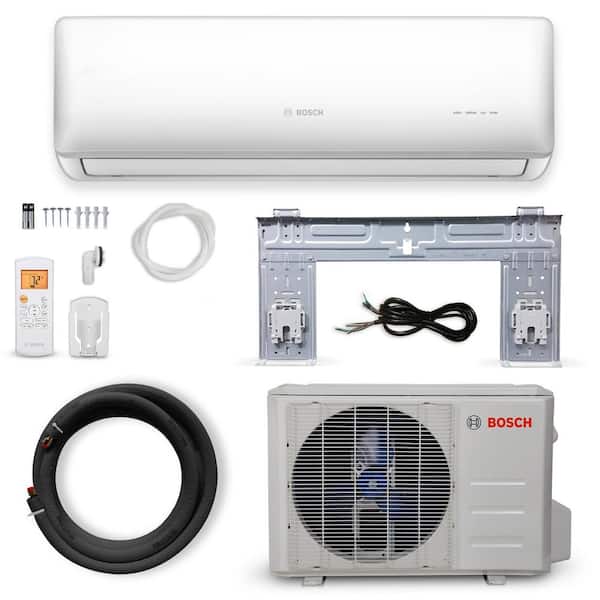

  • System includes indoor and outdoor unit, remote control and 25 ft. line set
  • 10-year residential warranty for peace of mind
  • Requires professional installation



Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Mini Split Heat Pumps

Gen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner and Heat Pump 115-Volt/60Hz
current product
Gen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 Hz
Gen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 HzGen 2 Climate 5000 ENERGY STAR 18,000 BTU 1.5-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 Hz
BrandBoschBoschBoschBosch
NameGen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner and Heat Pump 115-Volt/60HzGen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 HzGen 2 Climate 5000 ENERGY STAR 12,000 BTU 1-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 HzGen 2 Climate 5000 ENERGY STAR 18,000 BTU 1.5-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 Hz
Price
$141961
/bundle
$159944
/bundle
$166711
/bundle
$202954
/bundle
Ratings
(4)
(1)
(8)
(2)
Zone CapacitySingle ZoneSingle ZoneSingle ZoneSingle Zone
BTU Cooling Rating12000 BTU12000 BTU12000 BTU17000 BTU
BTU Heat Rating12000 BTU12000 BTU12000 BTU18000 BTU
Voltage (v)115v230v230v230v
Mount LocationWall MountWall MountWall MountWall Mount
Minimum Outdoor Temperature (F)-13-13-13-13
IncludedHeater,Remote Control,Self-diagnostic tools,Support BracketsHeater,Remote Control,Self-diagnostic tools,Support BracketsHeater,Remote Control,Self-diagnostic tools,Support BracketsHeater,Remote Control,Self-diagnostic tools,Support Brackets
Mini Split FeaturesAuto cool,Automatic shutoff,Heater compatible,Overload protection,Programmable,Sleep setting,Timer,Wireless remote controlAuto cool,Automatic shutoff,Heater compatible,Overload protection,Programmable,Sleep setting,Timer,Wireless remote controlAuto cool,Automatic shutoff,Heater compatible,Overload protection,Programmable,Sleep setting,Timer,Wireless remote controlAuto cool,Automatic shutoff,Heater compatible,Overload protection,Programmable,Sleep setting,Timer,Wireless remote control
View ProductView ProductView ProductView Product

Specifications

Dimensions

Air handler depth (in.)
7.8
Air handler height (in.)
11
Air handler width (in.)
32.9
Condenser depth (in.)
13.11
Condenser height (in.)
21.8
Condenser width (in.)
31.5

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
2-way
Air handler weight (lb.)
19.8
Amperage (amps)
4.5
BTU Cooling Rating
12000
BTU Cooling Rating
12000 BTU
BTU Heat Rating
12000 BTU
BTU Heat Rating
12000
Color
White
Color Family
White
Color/Finish
White
Condenser weight (lb.)
76.7
Coverage Area (sq. ft.)
600
Decibel (Sound) Rating
24 dBA
Decibel Rating
24 dBA
Filter Type
Washable
Included
Heater,Remote Control,Self-diagnostic tools,Support Brackets
Line Set Length (ft.)
25
Mini Split Features
Auto cool,Automatic shutoff,Heater compatible,Overload protection,Programmable,Sleep setting,Timer,Wireless remote control
Minimum Outdoor Temperature (F)
-13
Mount Location
Wall Mount
Number of cool settings
28
Number of Fan Speeds
3
Returnable
90-Day
Voltage (v)
230v
Voltage (volts)
230
Wattage (watts)
990
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
AHRI Certified,Energy Star,UL Listed
Manufacturer Warranty
10 year compressor warranty, 5 year parts warranty
Seasonal Energy Efficiency Ratio (SEER)
20.7
