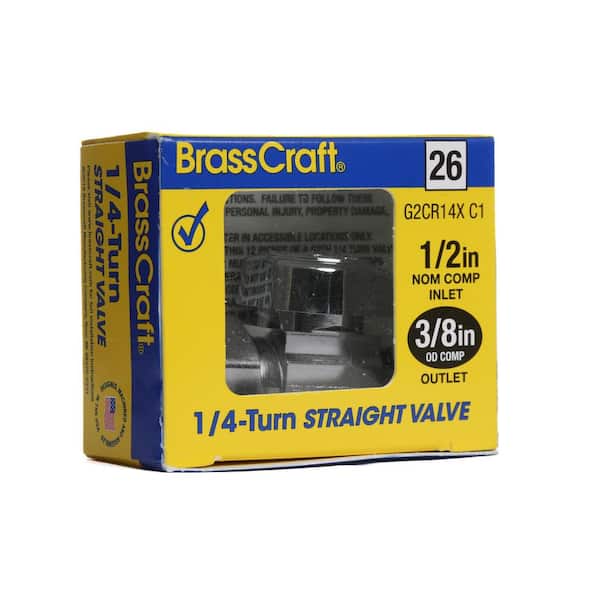

1/2 in. Compression Inlet x 3/8 in. Compression Outlet Straight Valve
- Controls water flow to household plumbing fixtures
- 90 degree turn of valve handle stops water flow for easy repair
- 1-piece construction offers added durability for long-lasting use
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

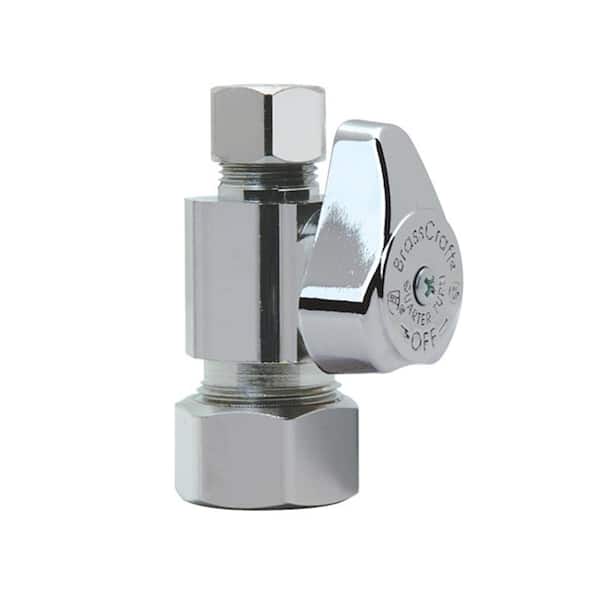

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet 1/4 in. Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
Highlights
- Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
- Smooth, quarter-turn operation, ON/OFF flow control with a 90° turn of the handle
- 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
- Easy-to-remove handle protects against accidental operation during rough-ins
- 1-piece body construction for strength, durability and long-lasting performance
- Chrome-plated brass
- Temperature rating: 40°F to 160°F
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
- Return Policy
Product Information
Specifications
Dimensions
Inlet Diameter (In.) | 1/2 |
|---|---|
Outlet Diameter (In.) | 3/8 |
Product Length (in.) | 2.75 in |
Details
Application | Potable Water |
|---|---|
Color/Finish | Silver |
Compatible Pipe Material | Copper |
Compatible Product | Faucet |
Connection | Comp x Comp |
Features | Lead Free |
Indoor/Outdoor | Indoor, Outdoor |
Material | Brass |
Maximum Pressure (PSI) | 125 PSI |
Maximum Working Temperature (F) | 160 |
Pack Size | 1 |
Returnable | 90-Day |
Valve Configuration | Straight |
Warranty / Certifications
Manufacturer Warranty | Limited Manufacturer Warranty |
|---|
Questions & Answers
My shutoff for my old refrigerator is in the basement can I use this between the existing supply line and the inlet on the refrigerator? The H D delivery need the shutoff on the same floor behind the unit.
A refrigerator water line is 1/4" OD compression. We do not offer a 1/4" OD compression X 1/4" OD compression water stop. You could use a OR07X C1 (SKU# 247917) 1/2" FIP X 1/4" OD compression outlet with an adapter on the inlet- Part number: 68-4-8X - 1/2" MIP X 1/4" OD compression adapter to connect to the existing 1/4" OD compression ice maker line. Thanks
Will this outlet work with my flexible hose 3/8 on the sink?
As long as the inlet of your existing flexible water supply is 3/8" OD compression this valve will work. 3/8" OD compression would be considered the most common connection size for water stop to supply line.
What size wrench is needed to tighten the compression nut?
A 15/16" open end wrench or just a standard adjustable wrench will work on the compression nut.
are these valves reusable
Compression stops are not generally reuseable. You would need to replace the compression ring and compression nut if attempting to reuse a stop body. Thanks
What type of fitting for pex b?
1/2" CPVC pipe
Can these be used with a clamp based ring for pex?
This water stop is used on PEX B or crimp ring style PEX tubing.
Can I use this on pvc piping direct?
No, compression is for copper tube or PEX tubing with a stainless steel tubing insert (stiffener). Part Number TS-8X. We do not make a water stop that will connect directly to PVC. We do make a CPVC glue on water stop that can solvent weld to CPVC piping- Part Number G2PR19X C1. For further application questions you can contact customer service at 877-272-7755 Thanks
My plumber installed new valves coming out of the wall with straight line connections instead of 90 degree. Does this really matter if I have room?
It is a matter of preference, function and looks. The type of stop does not matter as long as you are able to connect the supply line to your fixture. Anything beyond that is a matter of preference. If you would like more information please contact customer service at 877-272-7755. Thanks
