#1 Home Improvement Retailer

Internet #202047050

Model #OR17X C1

Store SKU #235707

1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi Turn Angle Valve

$763
$8.48 Save 85¢ (10%)
Buy 20 or more $3.82
  • Controls water flow to a variety of fixtures
  • Quick and easy installation
  • Durable design for long-lasting performance
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$763
$8.48
Save 85¢ (10%)

Product Overview

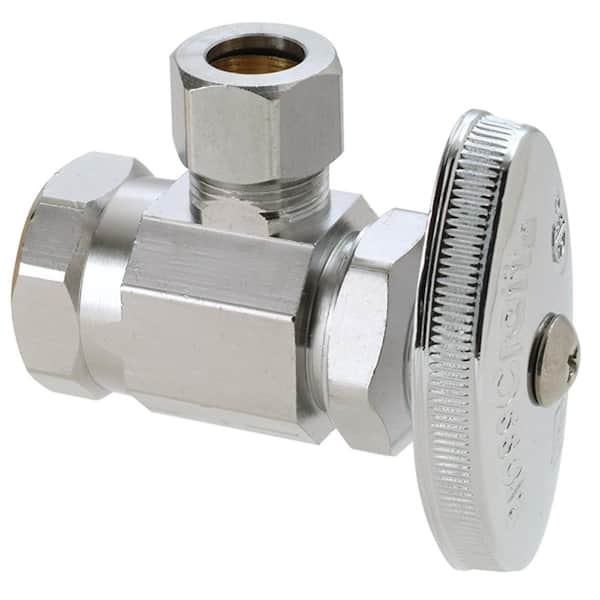

BrassCraft 1/2 in. FIP Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
  • Compatible with iron pipe
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Chrome-plated brass
  • Temperature rating: 40° to 160° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Designed, machined and assembled in the USA

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi Turn Angle Valve

Compare Similar Supply Stop Valves

current product
1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi Turn Angle Valve
Top Rated1/2 in. CPVC Inlet x 3/8 in. Compression Outlet Multi-Turn Angle ValveBest Seller1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve3/8 in. Comp Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve
BrandBrassCraftBrassCraftSharkBiteBrassCraft
Name1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi Turn Angle Valve1/2 in. CPVC Inlet x 3/8 in. Compression Outlet Multi-Turn Angle Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve3/8 in. Comp Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve
Price
$763
$8.48
Save 85¢ (10%)
Buy 20 or more $3.82
$848
$1233
Buy 12 or more $7.40
$1266
Ratings
(312)
(118)
(736)
(6)
ConnectionFIP x CompCPVC x CompPTC x CompComp x Comp
MaterialBrassBrassBrassBrass
Valve ConfigurationAngleAngleAngleAngle
Inlet Diameter (In.)1/21/21/23/8
Compatible Pipe MaterialGalvanized malleable ironCPVCMulti-PurposeCopper
Outlet Diameter (In.)3/83/83/83/8
ApplicationWater SupplyPotable WaterPotable WaterPotable Water
Maximum Pressure (psi)125125200125
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.19 in
Product Height (in.)
2.75
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2

Details

Application
Water Supply
Color/Finish
Chrome
Color/Finish Family
Chrome
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Other,Washing Machine
Connection
FIP x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
.23227
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.6
    out of 513 reviews
  • 93% recommend this product
Filter by:
Showing 1-10 of 513 reviews
Easy to install.
Easy to install.
by TacoTT
  • Verified Purchase
  • Recommended Product
Okay at first, useless junk a few years later when you go to try to turn it off
I installed a couple of these a few years ago under a bathroom sink. They went in okay back then. But I had to replace a faucet today so I went to turn them off. One wouldn't seal completely (drip drip drip from the faucet), and the other knob sheared right off in my hand trying to close it. The shaft is plastic. What an absolute piece of junk. Why are they called "BrassCraft" if they are made of plastic with an injection molded pot-metal knob. In the old days you could get actual brass plumbing parts. This thing is made out of junk. I hate these things. It's not the first time this has happened to me with these. What did they save, $0.20 by replacing a brass or stainless steel stem with a cheap plastic one? What a hunk of useless junk. Does anyone make one of these that isn't complete junk? Now I need to go get two more valves, and I bet all I can find is another similar useless piece of junk, which will give me headaches a few years later again.
by Tom
Response from BrassCraft MfgMay 19, 2020
Hello Tom - We are sorry to hear this was your experience. We’d love the opportunity to speak more with you about it. Please reach out to our Customer Support Team toll-free at 877-272-7755 and reference this review.
    2 people found this helpful
    Performed as expected
    Performed as expected
    by
    • Verified Purchase
    • Recommended Product
    Brasscraft products are easy to work with and very dependable.
    Brasscraft products are easy to work with and very dependable.
    by Fixer
    • Verified Purchase
    • Recommended Product
    I like the convenience of the 1/4 turn, but prefer the durability of the multi turn valve. I have...
    I like the convenience of the 1/4 turn, but prefer the durability of the multi turn valve. I have found they leak less.
    by John
    • Verified Purchase
    • Recommended Product
    Good produt . 1
    Good produt . 1
    by Joe
    • Verified Purchase
    • Recommended Product
    Easy assemble do not leak!
    Easy assemble do not leak!
    by 12345678
    • Verified Purchase
    • Recommended Product
    1 person found this helpful
    by HomeDepotCustomer
      by HomeDepotCustomer
        When I opened one of the three boxes there was...
        When I opened one of the three boxes there was a 1/2x1/4, and it was used. Meaning, someone returned the packaging with a used item. It wasn't even the correct product. The return department needs to do a better job inspecting. The other two were correct and work as they're supposed to.
        by Mark
          Showing 1-10 of 513 reviews
