Internet #202047053

Model #G2R17X C1

Store SKU #239832

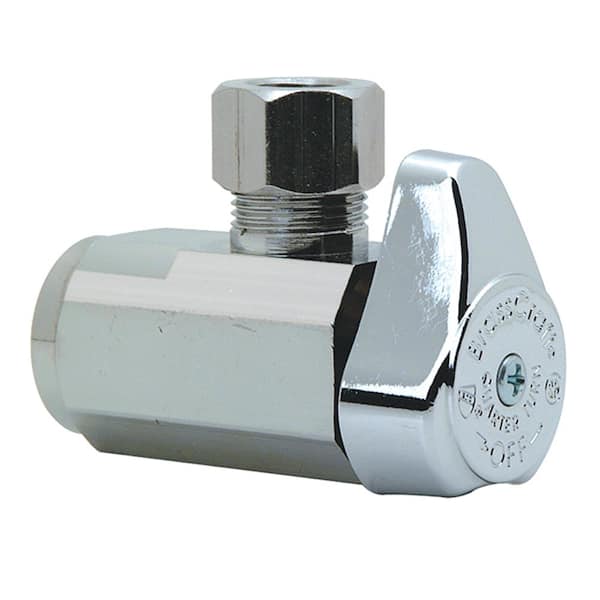

1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve

  • Controls water flow into faucets, toilets, dishwashers and more
  • Use where water pipe enters room from the wall
  • Stops flow of water for easy maintenance and repair
  • See More Details

Frequently Bought Together

+
+
Price:
$898

Product Overview

BrassCraft 1/2 in. FIP Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with iron pipe
  • Smooth on/off flow control with a quarter turn (90°) turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 1-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

1/2 in. CPVC Inlet x 3/8 in. Compression Outlet Multi-Turn Angle Valve
current product
1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Straight Stop Valve1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. Brass SpeediOne Braided Connector and Valve
BrandBrassCraftBrassCraftSharkBiteBrassCraft
Name1/2 in. CPVC Inlet x 3/8 in. Compression Outlet Multi-Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Straight Stop Valve1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. Brass SpeediOne Braided Connector and Valve
Price
$868
$898
$943
$1498
Ratings
(87)
(317)
(458)
(91)
ConnectionCPVC x CompFIP x CompPTC x CompPTC x Comp
MaterialBrassBrassBrassBrass
Valve Inlet Diameter (in.).625.5.50.5
Outlet Diameter (In.)3/83/83/83/8
Valve ConfigurationAngleAngleStraightAngle
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorIndoorIndoor,Outdoor
Inlet Diameter (In.)1/21/21/21/2
Inlet Fitting End TypeODFIPPush to ConnectFIP
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.19 in
Product Height (in.)
2.75
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
.5

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Other,Washing Machine
Connection
FIP x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
.21649
Returnable
180-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Pipe Thread
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

9Questions46Answers

Ball Valve?

Asked by Seaswirl20 November 20, 2020
5
Answers

I wouldn't call it a ball valve due to the right angle flow and assembly. I would call it a 1/4 turn angle stop. Higher pressure drop than a ball valve, and not serviceable like a 1 piece/ 2 piece / or 3 piece ball valve. I didn't try to disassemble it to see the actuator/plug/port.

Can this valve be used for a copper pipe with MIP thread (out of the wall) or is meant to be used...

Asked by AT September 8, 2020
4
Answers

Yes it is meant to be used on the stub out through the wall to plumbing fixtures, such as sinks, toilets, and lavatories. Larger fixtures are half inch connections, like laundry or dishwasher.

Can I use this valve as a flow control for an instant hot water heater ? I know it shuts on/off. ...

Asked by ElJay February 1, 2019
10
Answers

I wouldn't use it for flow control. It has a little bit of control but is mostly an off or on valve and is not really meant for in between situations.

Is this item sold individually? I just need one angle valve and hate to buy a 5 pack

Asked by Anda June 26, 2018
1
Answer

Hello Anda-This a good question, the G2R17X CM is a contractors pack of five but Home Depot does offer the G2R17X C1, store sku 239832, this will be the same water stop 1/2" FIP inlet x 3/8" OD compression with a chromed brass body 1/4 turn angle valve which is sold individually. Please contact our Customer Support Team at 877-272-7755 with any other questions or for assistance in choosing the right connector.

Is this product fine or coarse threaded?

Asked by Bob May 28, 2018
5
Answers

This vavle is pipe thread.

Does this valve have internal parts made of celcon plastic?

Asked by Steve September 7, 2017
5
Answers

No it is a brass ball valve

Is this valve Lead Free?

Asked by Pete September 5, 2017
5
Answers

Yes it's meets EPA and Cal. standards. Fixtures that do not would not be sold by any reputable entity that wants to stay in business. Litigation would bury them!

Can you buy 1 brass valve in store? 62CR19XRM. Also a brass flange.

Asked by Jack August 30, 2016
1
Answer

Hi Jack, and thank you for your recent inquiry with The Home Depot. Unfortunately, the BrassCraft 1/2 in. FIP Inlet x 3/8 in. O.D. Compression Outlet Brass 1/4-Turn Angle Valve (5-Pack) is not sold in stores. Please visit the link below to view our selection of valves sold in store. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot. http://www.homedepot.com/b/Plumbing-Valves-Stop-Valves/BrassCraft/5/375/N-5yc1vZca1yZa4Z1z0qwq6Z1z0qwqw?browsestoreoption=1

I see this valve's maximum temp is 140 F. What do I use for hot water?

Asked by Edward January 13, 2014
10
Answers

It's ok to use for hot water not steam heat.
