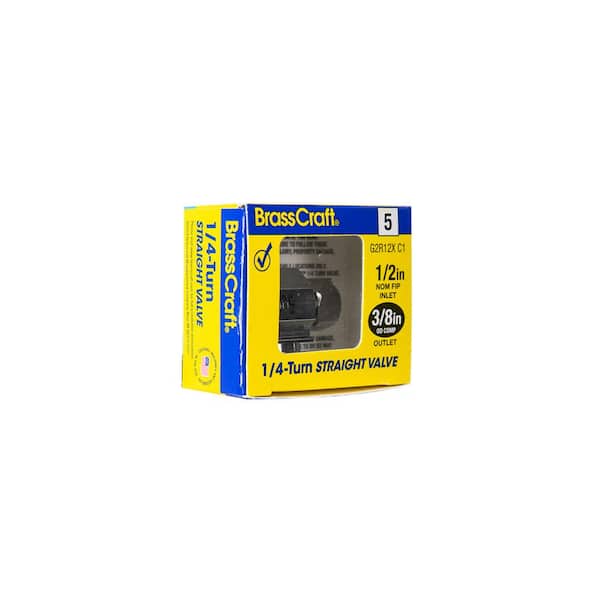

1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve

  • Controls water flow to household plumbing fixtures
  • 90 degree turn of valve handle stops water flow for easy repair
  • 1-piece construction offers added durability for long-lasting use
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:

Product Overview

Gain control of your household plumbing fixtures with this BrassCraft 1/2 in. FIP Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Straight Valve. Stop the water flow with the 90 degree water handle design and you can perform maintenance and repair without shutting off the water to the entire home. he straight valve is most often used where the water pipe enters the room from the floor.
  • Compatible with iron pipe
  • Smooth on/off flow control with a quarter turn (90°) turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 1-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40° to 160°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Tub & Shower Valves

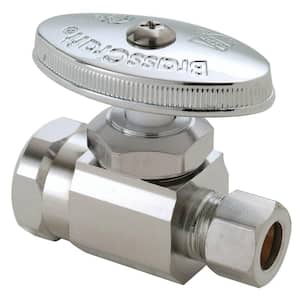

Top Rated1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi Turn Angle Valve
current product
1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve

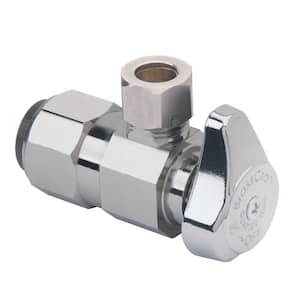

Best Seller1/2 in. Compression Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve1/2 in. Compression Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve
Price
$920
Buy 20 or more $4.60
$945
$945
Buy 20 or more $4.73
$1040
Ratings
(412)
(250)
(1590)
(253)
ConnectionFIP x CompFIP x CompComp x CompPTC x Comp
MaterialBrassBrassBrassBrass
Inlet Diameter (In.)1/21/21/21/2
Outlet Diameter (In.)3/83/83/83/8
Valve ConfigurationAngleStraightAngleStraight
Compatible Pipe MaterialGalvanized malleable ironGalvanized malleable ironCopperCopper
Inlet Fitting End TypeFIPFIPCompressionPush to Connect
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Maximum Working Temperature (F)160160160160
ApplicationWater SupplyPotable WaterPotable WaterPotable Water
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)1/2Inlet Size1/2 In.
Outlet Diameter (In.)3/8Product Depth (in.)1.19
Product Height (in.)2.75Product Length (in.)2.75 in
Product Width (in.)2.25Valve Inlet Diameter (in.)1/2

Details

ApplicationPotable WaterColor/FinishChrome
Color/Finish FamilyBrassCompatible Pipe MaterialGalvanized malleable iron
Compatible ProductFaucet,Ice Maker,Other,Washing MachineConnectionFIP x Comp
FeaturesLead FreeIndoor/OutdoorIndoor,Outdoor
Inlet Fitting End TypeFIPMaterialBrass
Maximum Pressure (psi)125Maximum Working Temperature (F)160
Outlet Fitting End TypeCompressionPack Size1
Product Weight (lb.).22429Returnable90-Day
Stop Valve TypeStraightValve ConfigurationStraight
Valve ConnectionCompressionValve TypeStop

Warranty / Certifications

Manufacturer WarrantyLimited Manufacturer Warranty
