#1 Home Improvement Retailer

Internet #205214394

Model #G23305X C1

Store SKU #1000679735

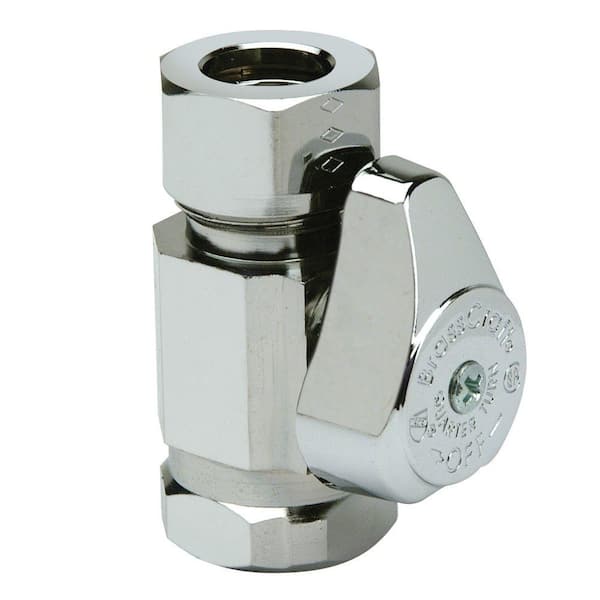

1/2 in. FIP Inlet x 7/16 in. & 1/2 in. Slip-Joint Outlet 1/4-Turn Straight Valve

$1366
  • Straight valve compatible with Iron pipe
  • 100% leak tested to ensure reliable, leak-free performance
  • Easy to remove handle
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$1366

Product Overview

BrassCraft 1/2 in. FIP Inlet x 7/16 in. and 1 /2 in. O.D. Slip-Joint Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with iron pipe
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 1-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40° to 160° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shut-off Valves

current product
1/2 in. FIP Inlet x 7/16 in. & 1/2 in. Slip-Joint Outlet 1/4-Turn Straight Valve
1/2 in. CPVC Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Valve1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve in Oil Rubbed Bronze1/2 in. FIP Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. FIP Inlet x 7/16 in. & 1/2 in. Slip-Joint Outlet 1/4-Turn Straight Valve1/2 in. CPVC Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Valve1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve in Oil Rubbed Bronze1/2 in. FIP Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve
Price
$1366
$1930
$2525
$2900
Ratings
(1)
(5)
(58)
(100)
ConnectionFIP x Slip-JointCPVC x CompFIP x CompFIP x Comp x Comp
MaterialBrassBrassBrassBrass
Outlet Diameter (In.)1/23/83/83/8
Valve ConfigurationStraightStraightAngleDual Outlet
Inlet Diameter (In.)1/21/21/21/2
Outlet Fitting End TypeSlip-JointCompressionCompressionCompression
Compatible Pipe MaterialGalvanized malleable ironCPVCGalvanized malleable ironGalvanized malleable iron
Inlet Fitting End TypeFIPODFIPFIP
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Pack Size1111
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
1/2
Product Depth (in.)
1.1880
Product Height (in.)
2.75
Product Length (in.)
2.750 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome-plated Brass
Color/Finish Family
Brass
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Other
Connection
FIP x Slip-Joint
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
160
Outlet Fitting End Type
Slip-Joint
Pack Size
1
Product Weight (lb.)
0.2780 lb
Returnable
90-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Pipe Thread
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 5
    out of 1 reviews
  • 100% recommend this product
Filter by:
Showing 1-1 of 1 reviews
I believe this valve should be available in the stores. This valve is the better choice to a mult...
I believe this valve should be available in the stores. This valve is the better choice to a multi turn stop valve with a plastic stem. Also, I do not believe ANY valve should be soldered to the supply line . Anyone needing a sink or toilet stop valve should consider this one compared to the commonly offered choices. It's worth waiting for if it is not a store stock item.
