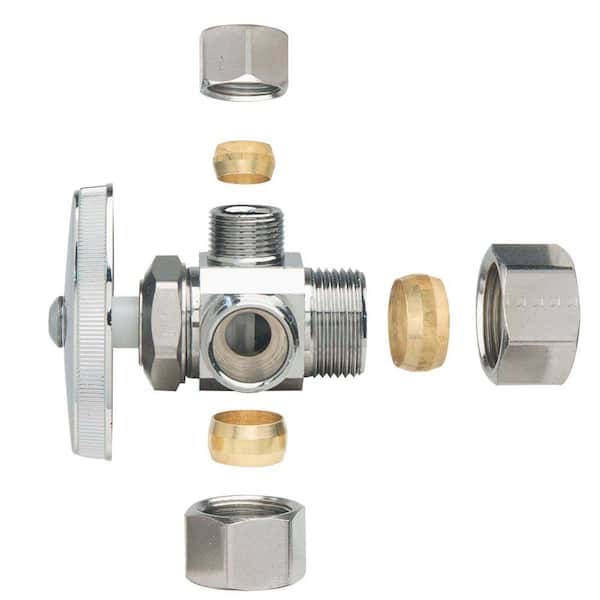

1/2 in. Nom Comp Inlet x 1/2 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve
$2742
- Dual outlet water valve compatible with Copper pipe
- Connect two independent water lines with one water stop
- Independent flow control for each water supply line
- View More Details
How to Get It
Product Overview
BrassCraft 1/2 in.Nom Compression Inlet x 1/2 in. OD Compression x 3/8 in. OD Compression Dual Outlet Multi-Turn Valve controls water flow to household plumbing fixtures. The dual outlet allows two independent supply lines to be attached to a single valve. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
- Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
- Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
- Machined, 1-piece body construction for strength, durability and long-lasting performance
- Easy-to-remove handle protects against accidental operation during rough-ins
- Multi-turn operation means water flow control with only a few turns of the handle
- Oval-knurled handle provides a secure grip for on/off operation
- Chrome-plated brass
- Temperature rating: 40° to 140° F
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
Compare Similar Shut-off Valves
 |  |  |  | |
| Brand | BrassCraft | BrassCraft | BrassCraft | BrassCraft |
| Name | 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet Multi-Turn Valve | 1/2 in. Nom Comp Inlet x 1/2 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve | 1/2 in. FIP Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve | 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve |
| Price | $1626 | $2742 | $2900 | $4689 |
| Ratings | (224) | (1) | (118) | (6) |
| Connection | Comp x Comp x Comp | Comp x Comp x Comp | FIP x Comp x Comp | Comp x Comp x Comp |
| Material | Brass | Brass | Brass | Brass |
| Inlet Diameter (In.) | 1/2 | 1/2 | 1/2 | 1/2 |
| Outlet Diameter (In.) | 1/2 | 3/8 | 3/8 | 3/8 |
| Valve Configuration | Dual Outlet | Dual Outlet | Dual Outlet | Straight |
| Compatible Pipe Material | Copper | Copper | Galvanized malleable iron | Copper |
| Inlet Fitting End Type | Compression | Compression | FIP | Compression |
| Outlet Fitting End Type | Compression | Compression | Compression | Compression |
| Maximum Working Temperature (F) | 140 | 140 | 140 | 140 |
| Application | Potable Water | Potable Water | Potable Water | Potable Water |
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet 1 Diameter (In.)
1/2
Outlet 2 Diameter (In.)
3/8
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.6880
Product Height (in.)
2.75
Product Length (in.)
2.750 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2
Details
Application
Potable Water
Color/Finish
Chrome-plated Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other
Connection
Comp x Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.3141 lb
Returnable
90-Day
Stop Valve Type
Dual Outlet
Valve Configuration
Dual Outlet
Valve Connection
Compression
Valve Type
Stop
Warranty / Certifications
Manufacturer Warranty
Limited Manufacturer Warranty
