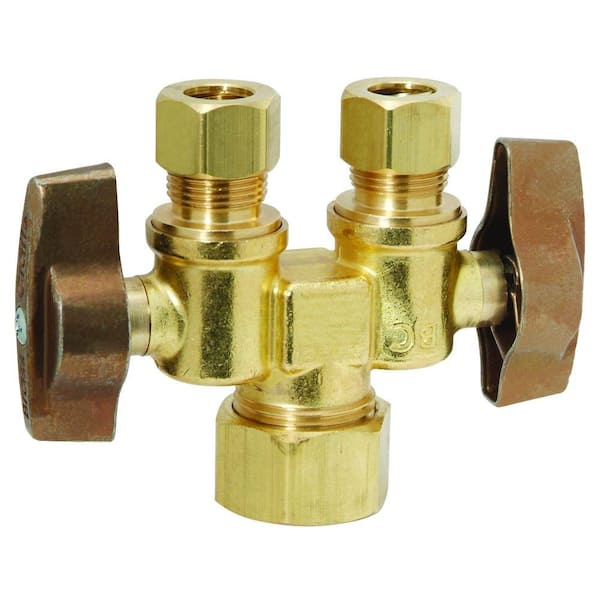

1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Straight Ball Valve

$3848
  • Heavy-duty rough brass body is resistant to corrosion
  • Removable handle prevents unintentional operation
  • Quarter turn operation enables swift on/off operation
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$3848

Product Overview

The BrassCraft Compression Dual Outlet, Dual Shut-Off 1/4-Turn Straight Ball Valve allows you to control water flow easily and quickly. It's used where the water pipe enters the room from the floor and it's perfect for installing dishwashers, water filters and instant hot water dispensers. It features a dual outlet that allows two independent supply lines to be attached to a single valve. This valve allows you to simply turn the handle when you need to do repairs or maintenance without turning the water off to the whole house.
  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Allows independent flow control to multiple appliances or fixtures
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Smooth, quarter-turn operation, on/off flow control with a 90 degree turn of the handle
  • Machined body provides strength, durability and long-lasting performance
  • Brass ball ensures smooth operation without freeze-ups even after long periods without use
  • Rough brass
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Pressure rating: 125 PSI maximum
  • Temperature rating: 40 degrees to 180 degrees F
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • No-lead certified

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shut-off Valves

1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
current product
1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Straight Ball Valve
1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Straight Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
Price
$3785
$3848
$3920
$4319
Ratings
(4)
(35)
(8)
(6)
ConnectionComp x Comp x CompComp x Comp x CompComp x Comp x CompComp x Comp x Comp
MaterialBrassBrassBrassBrass
Inlet Diameter (In.)1/21/21/21/2
Outlet Diameter (In.)3/83/83/83/8
Valve ConfigurationAngleStraightStraightAngle
Compatible Pipe MaterialCopperCopperCopperCopper
Inlet Fitting End TypeCompressionCompressionCompressionCompression
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Maximum Working Temperature (F)180180140180
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)1/2Inlet Size1/2 In.
Outlet 1 Diameter (In.)3/8Outlet 2 Diameter (In.)3/8
Outlet Diameter (In.)3/8Product Depth (in.)2.3500
Product Height (in.)3.35Product Length (in.)3.350 in
Product Width (in.)1.63Valve Inlet Diameter (in.)1/2

Details

ApplicationPotable WaterColor/FinishRough Brass
Compatible Pipe MaterialCopperCompatible ProductFaucet,Ice Maker,Other
ConnectionComp x Comp x CompFeaturesLead Free
Indoor/OutdoorIndoor,OutdoorInlet Fitting End TypeCompression
MaterialBrassMaximum Pressure (psi)125
Maximum Working Temperature (F)180Outlet Fitting End TypeCompression
Pack Size1Product Weight (lb.)0.4016 lb
Returnable90-DayStop Valve TypeStraight
Valve ConfigurationStraightValve ConnectionCompression
Valve TypeStop
