Model #B1-72DW6 P

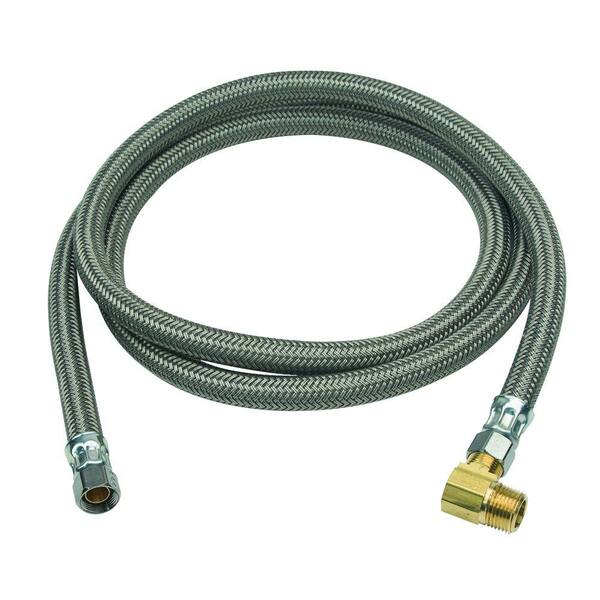

3/8 in. Compression x 3/8 in. Compression x 72 in. Braided Polymer Dishwasher Connector with 3/8 in. Compression Elbow

$2209

Frequently Bought Together

+
+
Price:
$2209

Product Overview

BrassCraft Speedi Plumb PLUS 3/8 in. Compression inlet x 3/8 in. Compression outlet x 72 in. length flexible braided polymer water connector with 3/8 in. Compression Elbow adaptor. Used to connect the water supply to your dishwasher, this connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements. The braided polymer fibers are designed to bend freely without kinking or crimping.
  • 72 in. length connector with 3/8 in. compression connection to water shut-off valve
  • Includes 3/8 in. compression elbow fitting to connect to appliance
  • Bends freely, without kinking or crimping, installation is easier, especially in cramped quarters
  • External corrosion resistance to common household, tile and glass cleaners
  • Internal corrosion resistance to harsh water conditions
  • 8-sided pneumatic crimp for greater dependability and reliable nut-to-hose connections
  • Temperature rating: 40° to 140° F, intermittent to 180° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.6/CSA B125.6
  • Designed, machined and assembled in the USA
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

3/8 in. Compression x 3/8 in. Compression x 72 in. Braided Polymer Dishwasher Connector with 3/8 in. Compression Elbow

Compare Similar Supply Lines

3/8 in. Compression x 3/8 in. Compression x 72 in. Braided Polymer Dishwasher Connector
current product
3/8 in. Compression x 3/8 in. Compression x 72 in. Braided Polymer Dishwasher Connector with 3/8 in. Compression Elbow
1/2 in. Compression x 1/2 in. Compression x 72 in. Braided Polymer Dishwasher Connector3/8 in. Compression x 3/8 in. Compression x 120 in. Braided Polymer Dishwasher Connector
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name3/8 in. Compression x 3/8 in. Compression x 72 in. Braided Polymer Dishwasher Connector3/8 in. Compression x 3/8 in. Compression x 72 in. Braided Polymer Dishwasher Connector with 3/8 in. Compression Elbow1/2 in. Compression x 1/2 in. Compression x 72 in. Braided Polymer Dishwasher Connector3/8 in. Compression x 3/8 in. Compression x 120 in. Braided Polymer Dishwasher Connector
Price
$1401
$2209
$2720
$2962
Ratings
(47)
(0)
(4)
(47)
Product Length (in.)72.375 in73.000 in72.375 in120.375 in
Tube Diameter (in.)0.5500.5500.5500.550
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Inlet Fitting End TypeCompressionCompressionCompressionCompression
Outlet Diameter (In.)3/83/81/21/4
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/8
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.125
Product Length (in.)
73.000 in
Product Width (in.)
0.689
Tube Diameter (in.)
0.550

Details

Color Family
Silver
Color/Finish
Silver
Features
Flexible
Fitting Material
Brass
Inlet Fitting End Type
Compression
Maximum Pressure (PSI)
125
Outlet Fitting End Type
Compression
Pack Size
1
Plumbing Part Type
Supply Line
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
CSA Certified,IAPMO Certified
Manufacturer Warranty
Limited Manufacturer Warranty
