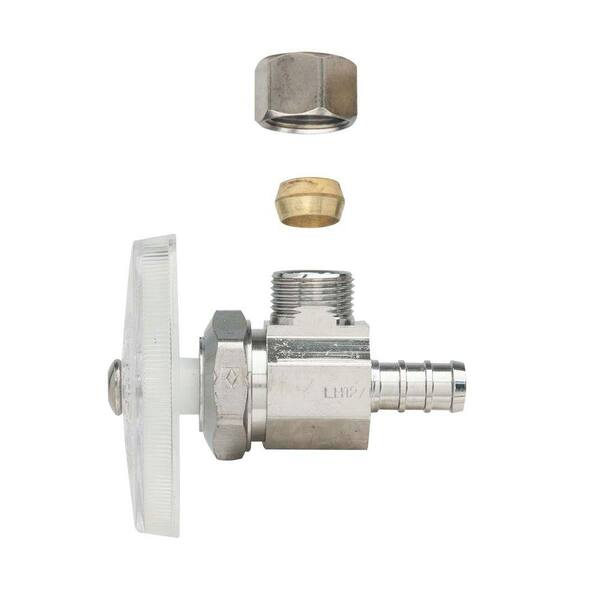

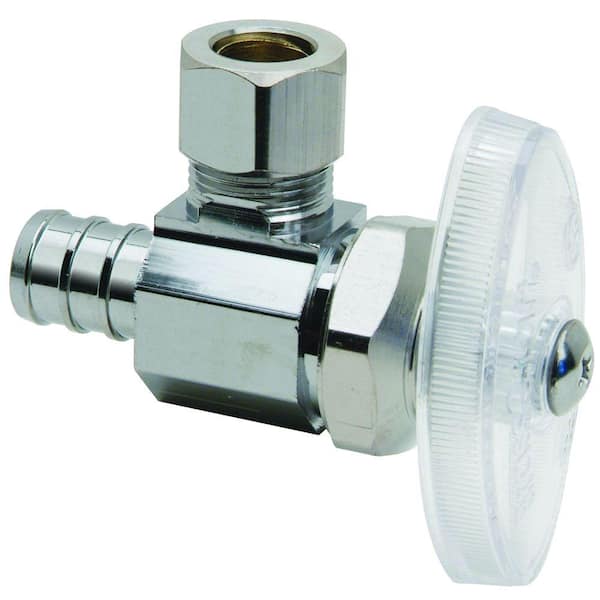

3/8 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Brass Multi-Turn Angle Valve (5-Pack)

(7)Questions & Answers (2)
  • Angle valve compatible with PEX
  • Multi-turn handle for relialbe shut off control
  • Convenient contractor five pack
  • View More Details
caret

Product Details

BrassCraft 3/8 in. nominal crimp PEX barb inlet x 3/8 in. O.D. compression outlet multi-turn angle valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home. Crimp PEX end designed to ASTM F1807.
  • Contractor pack includes 5 individually tray valves
  • Compatible with PEX pipe
  • Requires PEX crimp ring, crimp tool and crimp gage for proper installation; not included
  • Machined, 1-piece brass body ensures strength, durability and long-lasting performance
  • Easy-to-remove handle helps avert accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip
  • Chrome-plated brass
  • Temperature rating: 40° to 160° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Return Policy

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

2Questions
caret
Q:Is this price really for 1 of these shut offf valves?
by|Mar 1, 2023
1 Answer
Answer This Question

A:  Hello, Thank you for your question. We would require more information to determine if our Valve (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

by|Mar 2, 2023
    caret
    Q:What crimping tool is used
    by|Jun 29, 2016
    3 Answers
    Answer This Question

    A:  You have a couple of choices. the crimp ring which requires a separate tool for each diameter fitting...i.e. 3/8=1 tool, ½" requires a separate tool, etc. You can also use a good quality cinch ring for each diameter you're using. But you usually only need 1 tool for multiple sizes, thus saving you a bunch of money.

    by|Nov 26, 2016

      A:  Thanks Kimmy for the question. To install PEX connections, you will require a crimp tool that is compatible with PEX tubing and copper crimp rings. Sometimes the tool may reference F1807 which is the crimp designation for a copper crimp ring connections. Its required to have the crimping tool that is sized to the diameter of the tubing. The Home Depot carries several varieties dependent on your size requirements. Hope this helps. If you have any additional questions please feel free to contact our customer support team toll-free at 877-272-7755.

      by|Jul 2, 2016

        A:  I used the iwiss pex cinch clamping tool for 3/8 to 1 inch clamps, available at amazon. It is much easier to use then the pex compression tool since it has ratcheting action. Also it is only 12 inches in length so it is easier to use in tight places. The pex compression tool sold at home depot does not work on 3/8 rings and it is very big so you could not get it into a tight place. I also bought the sharkbute 3/8 compression clamps from home depot.

        by|Apr 18, 2017
          Showing 1-2 of 2
          caret

          Customer Reviews

          4.3 out of 5
          (7)
          • 4.3
            out of 7 reviews
          • 100%recommend this product
          Filter by:
          Showing 1-7 of 7 reviews
          Mar 6, 2021
          Worked as discribed. Fast delivery and good quality....
          Worked as discribed. Fast delivery and good quality.
          by
          • Verified Purchase
          Oct 24, 2020
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Jun 26, 2020
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Feb 6, 2019
          Ordered Qty 2 packs of 5. Home Depot only...
          Ordered Qty 2 packs of 5. Home Depot only shipped 2 valves not 10. Unfortunately I was ordering these for a future project. What a surprise to open the box and only find 2 valves when I went to do this project. Now I'm told I didn't report this within 48hrs so I'm out of luck. $65/valve!!!!
          by
          Response from BrassCraft MfgFeb 12, 2019
          Hi Barry - We are sorry you had this experience. We would like to help you resolve your issue. Please contact our Customer Support Team at 877-272-7755 and reference this review.
          • Verified Purchase
          May 1, 2018
          Works great, I only needed 3 but it was only available in a 5 pack. This was the only place I co...
          Works great, I only needed 3 but it was only available in a 5 pack. This was the only place I could find it.
          by
          • Verified Purchase
          • Recommended
          Apr 10, 2018
          They're quality, good price from The Home Depot. Thank you...
          They're quality, good price from The Home Depot. Thank you for good supply.
          by
          • Verified Purchase
          Apr 18, 2017
          My house has pex piping. All my sinks and toilets have a direct run with no shut off device at th...
          My house has pex piping. All my sinks and toilets have a direct run with no shut off device at the appliance itself. I don't know if this is allowed by code but if you ever had a leak it would take you a while to run to the garage and find the main box to shut of the water. Needless to say I had a leak in my toilet and thought while I fixed that I might as well install a shut of valve. Only problem was the pipes running to the toilet are 3/8 pex line. This is the only place you will find an angle valve with the 3/8 barb on it. This may be the reason my toilets and sinks don't have shut off valves. Needless to say I purchased this and it worked great. It was my first time working with PEX so I went with the shark bite 3/8 crimp ring not the compression ring. I bought the crimp tool on Amazon. The crimp tool is much easier to apply and easier to use in tight places. The compression tool sold at home depot does not work on 3/8 ring only 1/2 inch an up. This valve worked great and since I had a five pack I went ahead and installed the shut off valve on all my other toilets and sinks. PEX plumbing is very easy to work with as long as you have the crimp tool. Each valve took maybe five minutes to install. Highly recommend you keep a crimp tool handy if you have PEX plumbing in your house, never know when you will need it.
          by
          • Verified Purchase
          • Recommended
          2 found this review helpful
