3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve

$1347
  • Angle valve compatible with Iron pipe
  • 100% leak tested to ensure reliable, leak-free performance
  • Easy to remove handle
  • See More Details

Frequently Bought Together

++
Price:
$1347

Product Overview

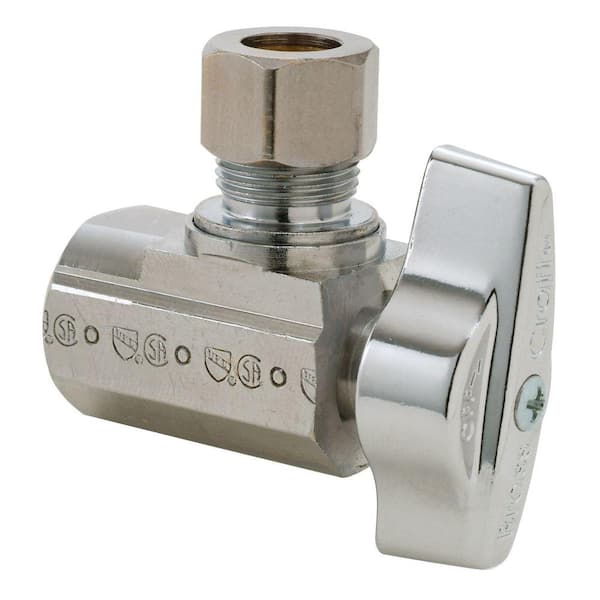

BrassCraft 3/8 in. FIP Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Angle Ball Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with iron pipe
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • Brass ball ensures smooth operation without freeze-ups even after long periods without use
  • Machined body provides strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Chrome-plated brass
  • Temperature rating: 40° to 180° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve

Compare Similar Tub & Shower Valves

3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
current product
3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve
1/2 in. CPVC Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve in Oil Rubbed Bronze
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve1/2 in. CPVC Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve in Oil Rubbed Bronze
Price
$897
$1347
$1396
$2967
Ratings
(157)
(2)
(4)
(54)
ConnectionFIP x CompFIP x CompCPVC x CompFIP x Comp
MaterialBrassBrassBrassBrass
Valve ConfigurationAngleAngleAngleAngle
Inlet Diameter (In.)3/83/81/21/2
Compatible Pipe MaterialGalvanized malleable ironGalvanized malleable ironCPVCGalvanized malleable iron
Outlet Diameter (In.)3/83/83/83/8
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Maximum Pressure (psi)125125125125
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/8
Inlet Size
3/8 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.1880
Product Height (in.)
2.75
Product Length (in.)
2.750 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
3/8

Details

Application
Potable Water
Color/Finish
Chrome-plated Brass
Color/Finish Family
Brass
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Other
Connection
FIP x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
180
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.2345 lb
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Pipe Thread
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.4
    out of 3 reviews
  • 100% recommend this product
Filter by:
Showing 1-3 of 3 reviews
Installed easily with no leaks and has a nice 90...
Installed easily with no leaks and has a nice 90 positive stop turn. Seems well made.
by DJP
  • Verified Purchase
They are made in the U.S. and good quality....
They are made in the U.S. and good quality.
by HomeDepotCustomer
  • Verified Purchase
PURCHASED PRODUCT I HAD TO HAVE
THE COST IS OUTRAGEOUS FOR THESE SHUT OFF VALVES, BUT I NEEDED VALVES WITH REAL BRASS INTERNAL SHUTOFF BALLS (NOT PLASTIC !!!!!) FOR MY TANKLESS WATER SYSTEM WITH WATTS INSTANT HOT WATER PUMP SO I HAD TO SPECIAL ORDER AND PAY THE PRICE! I HAD NO OTHER CHOICE !!
by RETIREDRACER
  • DIY
  • Verified Purchase
  • Recommended Product
Showing 1-3 of 3 reviews
